[shortdesc]
- 8x Gigabit Ethernet Smart Switch with PoE-out, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5
[/shortdesc]
[properties]
| Properties |
MikroTik CRS112-8P-4S-IN |
| Description |
8x Gigabit Ethernet Smart Switch with PoE-out, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5 |
| Product Family |
CRS Series |
| Product Type |
Ethernet Switch |
| Quick specifications |
8 Gigabit RJ45 Ports
4 SFP Ports
Non-Blocking Throughput: 12 Gbps
Switching Capacity: 24 Gbps
Forwarding Rate: 17.8 Mpps
Maximum Power Consumption: 10 W (without
PoE devices connected)
Supports PoE+ IEEE 802.3at/af and 24 V
Passive PoE
Quiet, Fanless Operation
Desktop-Rackmount |
| Ports |
| 10/100/1000 Ethernet ports |
8 |
| Number of 1G Ethernet ports with PoE-out |
8 |
| SFP |
4 |
| Serial console port |
1 RJ45 |
| PoE out |
Yes, 802.3af/at |
| PoE-out ports |
Ether1-Ether8 |
| Max out per port output (input 18-30 V) |
1 A |
| Max out per port output (input 30-57 V) |
450 mA |
| Max total out (A) |
2.8A (18V-28V) & 1.4A (48V-57V) A |
| Dimensions |
200 x 142 x 44 mm |
| Number of DC inputs |
2 (DC jack) |
| DC jack input Voltage |
18-28 V / 48-57 V |
| Cooling type |
Passive |
| Max power consumption |
160 W |
| Max power consumption without attachments |
10 W |
[/properties][specifications]
| Specifications |
CRS112-8P-4S-IN |
| Memory |
128 MB |
| Flash Storage size |
16 MB |
| CPU |
QCA8511 |
| CPU core count |
1 |
| Switch chip model |
QCA8511 |
| OS |
MikroTik RouterOS v6, Level 5 license, free product lifetime upgrades |
| Switching features |
Non-blocking Layer 2 switching capacity
16K host table
IEEE 802.1Q VLAN
Supports up to 4K simultaneous VLANs
Port isolation
Port security
Broadcast storm control
Port mirroring of ingress/egress traffic
Rapid Spanning Tree Protocol
Access Control List
MikroTik neighbor discovery
SNMP
9204-byte jumbo frames support
IGMP snooping
Static link aggregation |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-20°C to 60°C tested |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
[/specifications][accesories]
| Accessories |
| Power adapter 28 V 3.4 A |
| Rackmount ears |
| Power cord |
| Screws |
[/accesories]

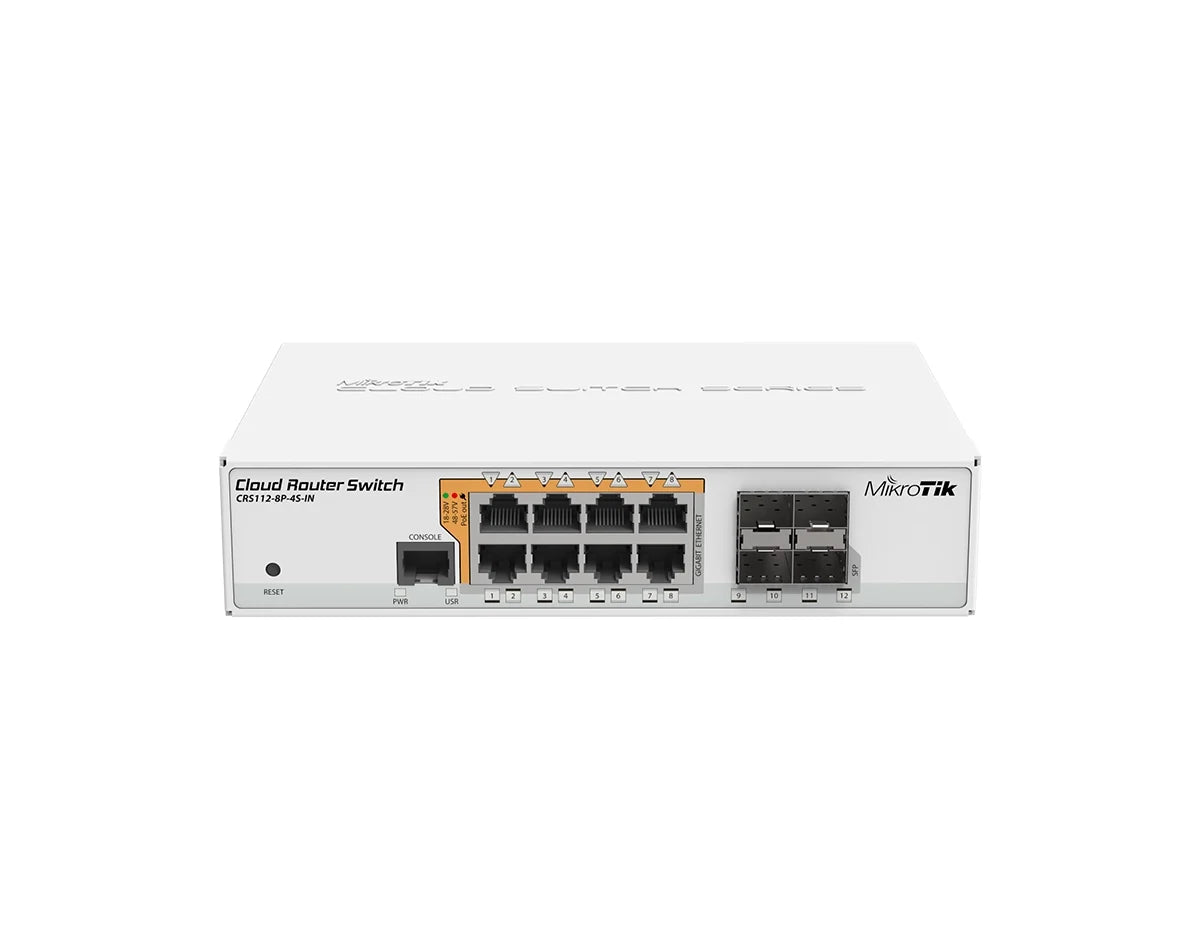

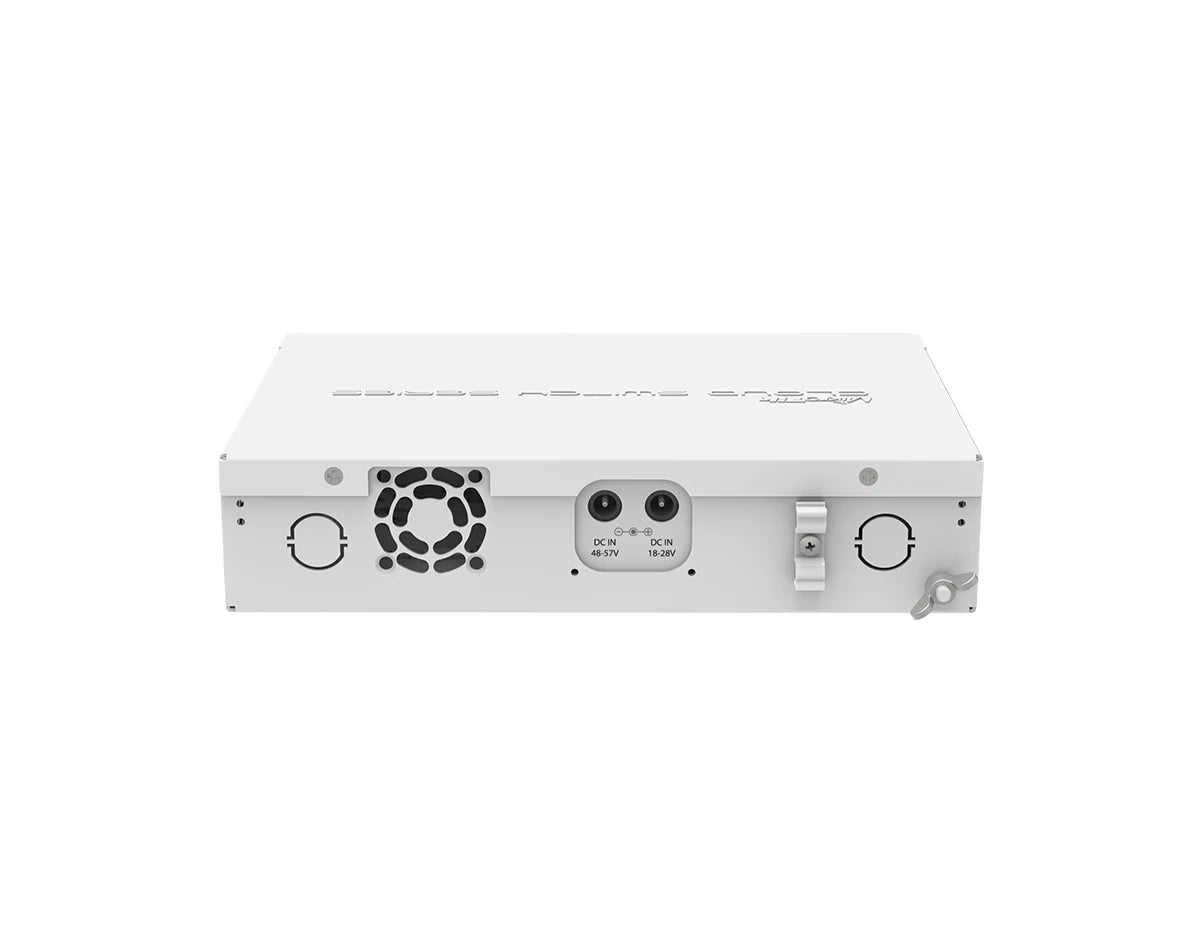

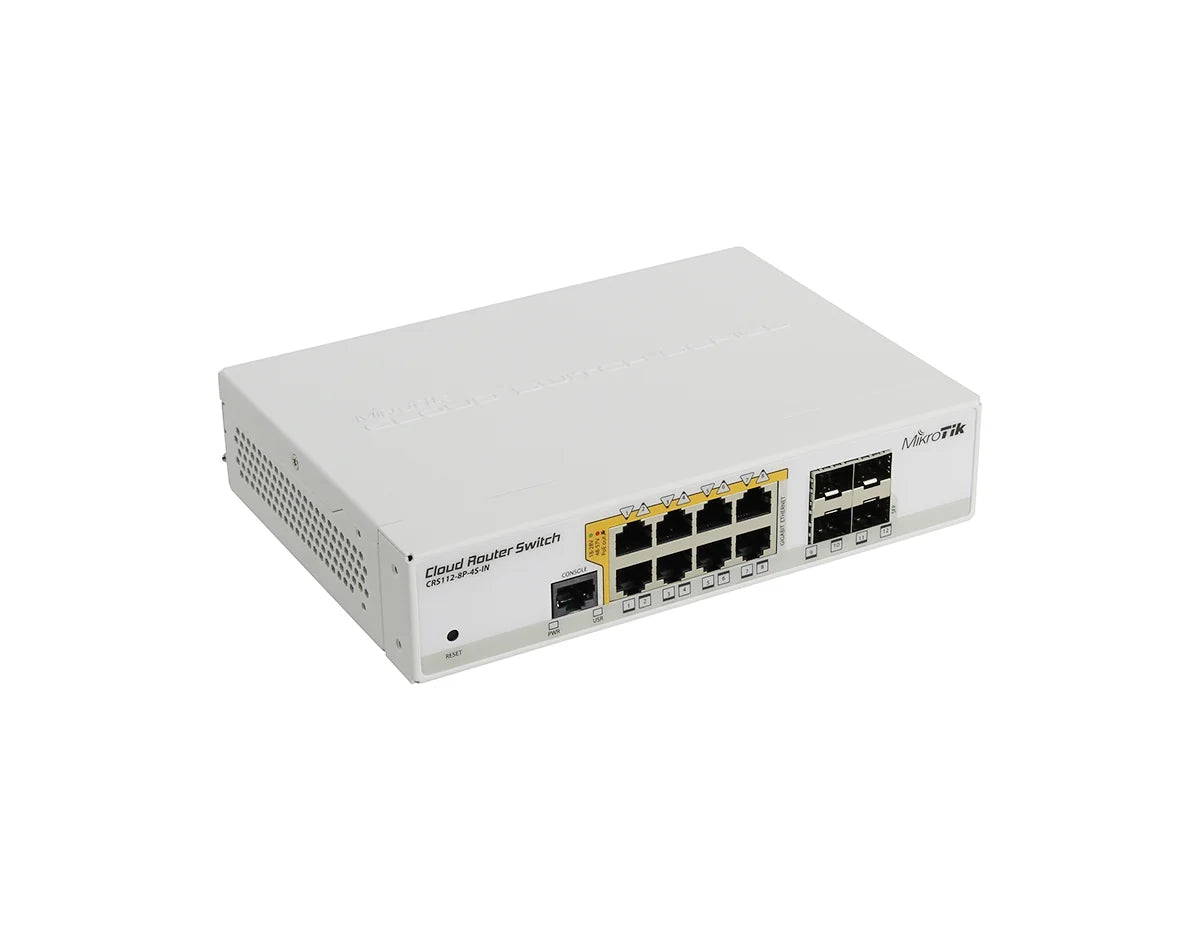

MikroTik CRS112-8P-4S-IN Switch
The CRS112-8P-4S-IN is equipped with eight Gigabit Ethernet ports, all of which are capable of Power-over-Ethernet (PoE). These ports provide a range of power output options, such as autosensing 802.3af/at PoE/PoE+ and Passive PoE, offering users flexibility and convenience. The CRS112-8P-4S-IN operates on the RouterOS platform, combining the functionalities of a comprehensive router with those of a controllable switch that is equipped with advanced Layer 3 (L3) features.
Quick Specs:
- 8 Gigabit Ethernet ports
- 4x 1G SFP ports
- 8x Passive PoE
- Non-blocking Layer 2 switching capacity
Please see the related tabs for the CRS112-8P-4S-IN datasheet and compatible accessories.
