[shortdesc]
- Advanced Router with 12 Gigabit Ethernet Ports and 4 SFP+ Ports for Heavy-Duty Networking.
[/shortdesc]
[properties]
| Ethernet Router |
CCR2116-12G-4S+ |
| Description |
The CCR2116-12G-4S+ router is perfect for large ISPs, with a 16-core 2GHz Amazon Annapurna Labs Alpine CPU, four 10G SFP+ ports, Gigabit Ethernet ports, Layer 3 Hardware Offloading, dual-redundant power supply, and excellent performance for dynamic routing, BGP operations, firewall rules, and quality of service configurations. |
| Product Family |
CCR Series |
| Product Type |
Ethernet Switch |
| Number of 1G Ethernet ports |
13 |
| Number of 10G SFP+ ports |
4 |
| Number of M.2 slots |
1 |
| Serial console port |
RJ45 |
| Number of AC inputs |
2 |
| AC input range |
100-240 V |
| Max power consumption (without attachments) |
60 W |
| Max power consumption |
93 W |
| Fans |
4 |
| Dimensions |
443 x 199 x 44 mm |
| Features |
CPU temperature monitor
PCB temperature monitor
Mode button |
[/properties][specifications]
| Specifications |
CCR2116-12G-4S+ |
| CPU |
AL73400 2 GHz |
| CPU architecture |
ARM 64bit |
| CPU core count |
16 |
| CPU nominal frequency |
2000 MHz |
| Size of RAM |
16 GB |
| Storage |
128 MB, NAND |
| Operating system |
RouterOS v7 (License level 6) |
| Switch chip model |
98DX3255 |
| Switch connection to CPU |
4x25 Gbps |
| Operating temperature |
-20°C to +60°C |
| Certification |
CE, EAC, ROHS |
| IPsec hardware acceleration |
Yes |
[/specifications][accesories]
| Included in package |
IEC cords
K-57 Kit
Rackmount bracket white |
|
UP1302C-12
|
12V 10.8A internal power supply for CCR1036 series |
| S-85DLC05D |
SFP (1.25G) module, 550m, Multi Mode |
| PW48V-12V85W |
±48V Open frame Power supply with 12V 7A output, for CCR since revision r2 |
[/accesories]

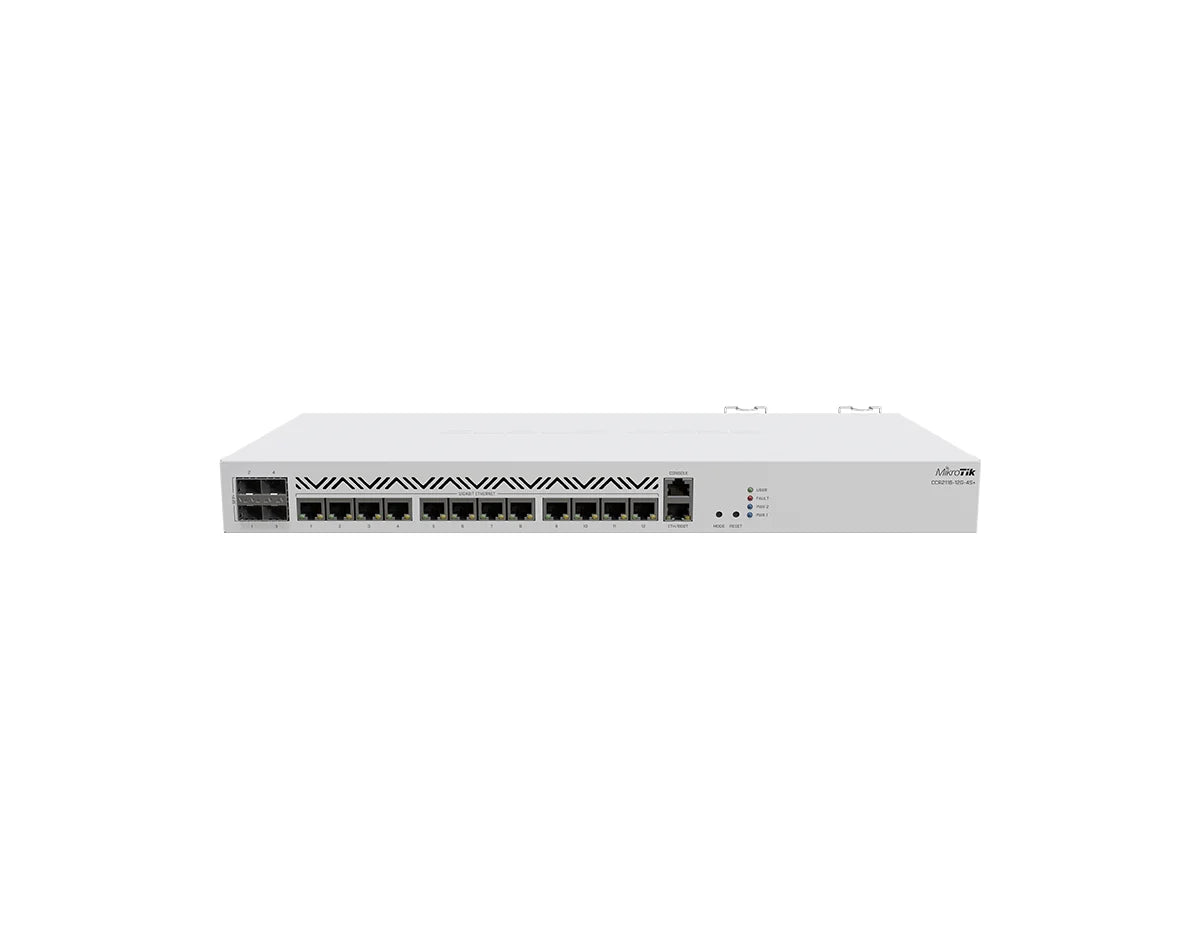

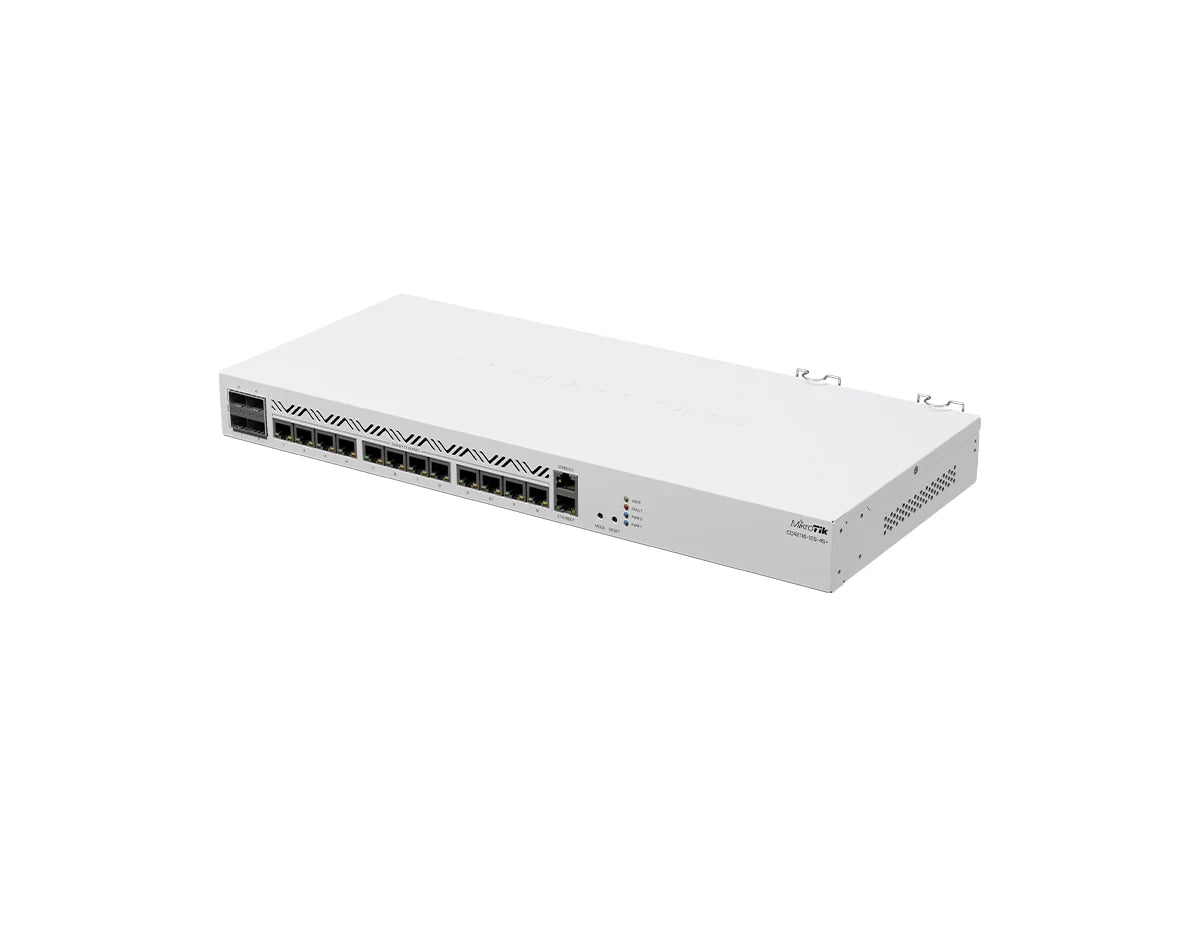

MikroTik CCR2116-12G-4S+ Router
The CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. This router incorporates the high-performance Amazon Annapurna Labs Alpine CPU, establishing a new benchmark for single-core performance within the CCR product line. It is ideal for handling heavy operations based on per-connection processing. It has a GE port that is directly connected to the CPU, improving the management.
Quick Specs:
- 13x 10/100/1000 Gigabit Ethernet ports
- 4x 10G SFP+ ports uplink
- AL73400, 16 core, 2000MHz
-
1x M.2 Slot (Supports SSD’s up to 8 terabytes)
Please see the related tabs for the CCR2116-12G-4S+ datasheet and compatible accessories.
