[shortdesc]
- Cloud core router, 100 gbps, 16-core cpu, 12 sfp28 ports, gigabit ethernet port
[/shortdesc]
[properties]
|
Properties
|
CCR2216-1G-12XS-2XQ |
| Description |
Explore the CCR2216-1G-12XS-2XQ, boasting2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port for exceptional connectivity.
|
| Product Family |
CCR Series |
| Product Type |
Router
|
| Number of 1G Ethernet ports |
1 |
| Number of 25G SFP28 ports |
12 |
| Number of 100G QSFP28 ports |
2 |
| Number of M.2 slots |
2 |
| Extras |
|
| Serial console port |
RJ45 |
| Number of AC inputs |
2 |
| AC input range |
100-240 V |
| Power adapter nominal voltage |
12 V |
| Power adapter nominal current |
12.5 A |
| Max power consumption (without attachments) |
80 W |
| Max power consumption |
121 W |
| Fans |
Four hot-swappable fans |
| Dimensions |
443 x 367 x 44 mm |
[/properties][specifications]
| Specifications |
CCR2216-1G-12XS-2XQ |
| CPU |
AL73400 2 GHz |
| CPU architecture |
ARM 64bit |
| CPU core count |
16 |
| Size of RAM |
16 GB |
| RAM type |
DDR4 |
| Storage |
128 MB, NAND |
| Operating system |
RouterOS (License level 6) |
| Switch chip model |
98DX8525 |
| Switch connection to CPU |
4x25 Gbps |
| Operating temperature |
-20°C to +60°C |
| Certification |
CE, EAC, ROHS |
| IP |
20 |
[/specifications][accesories]
| Included in package |
2 Power cords
Rackmount ears
Rackmount rear support ears
Fastening set
Cable managment bracket
|
[/accesories]

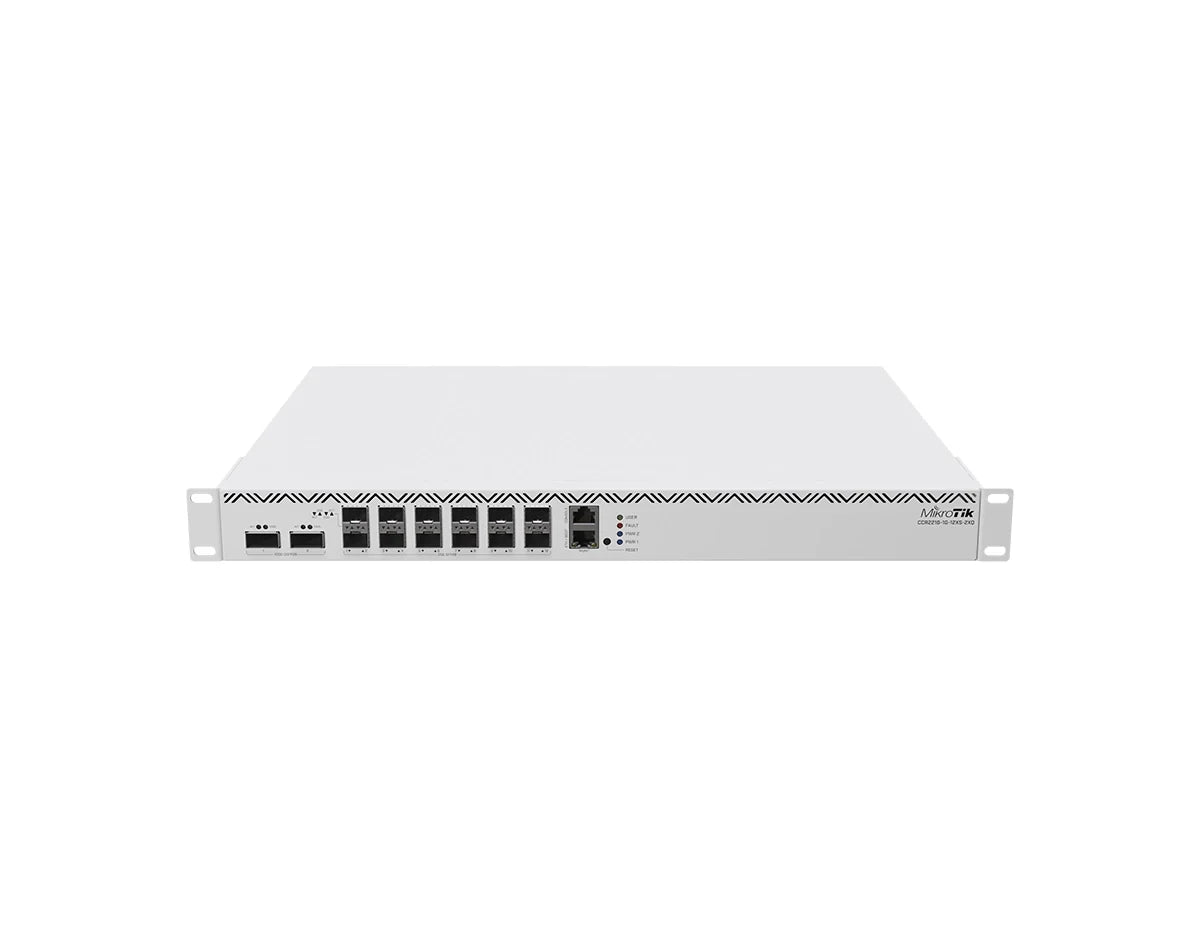

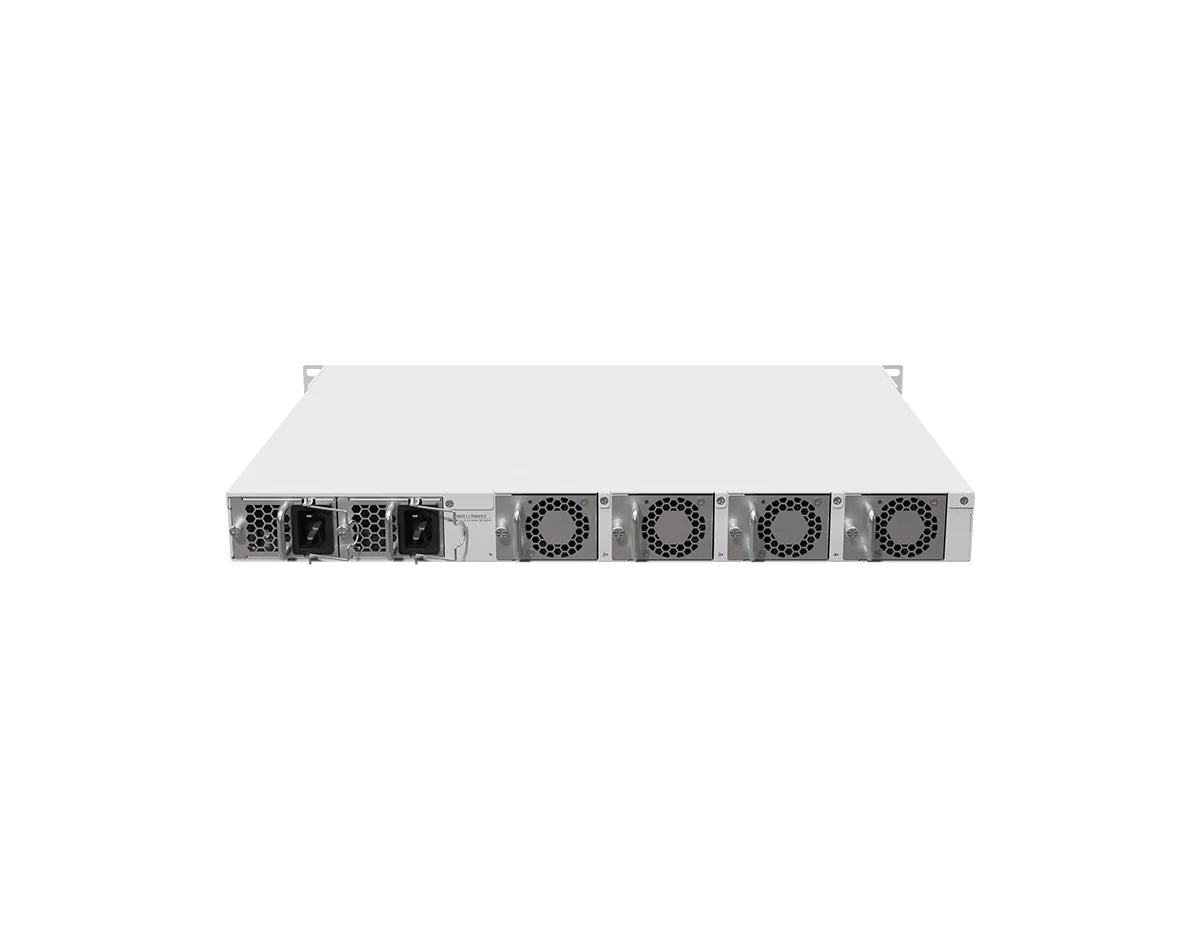

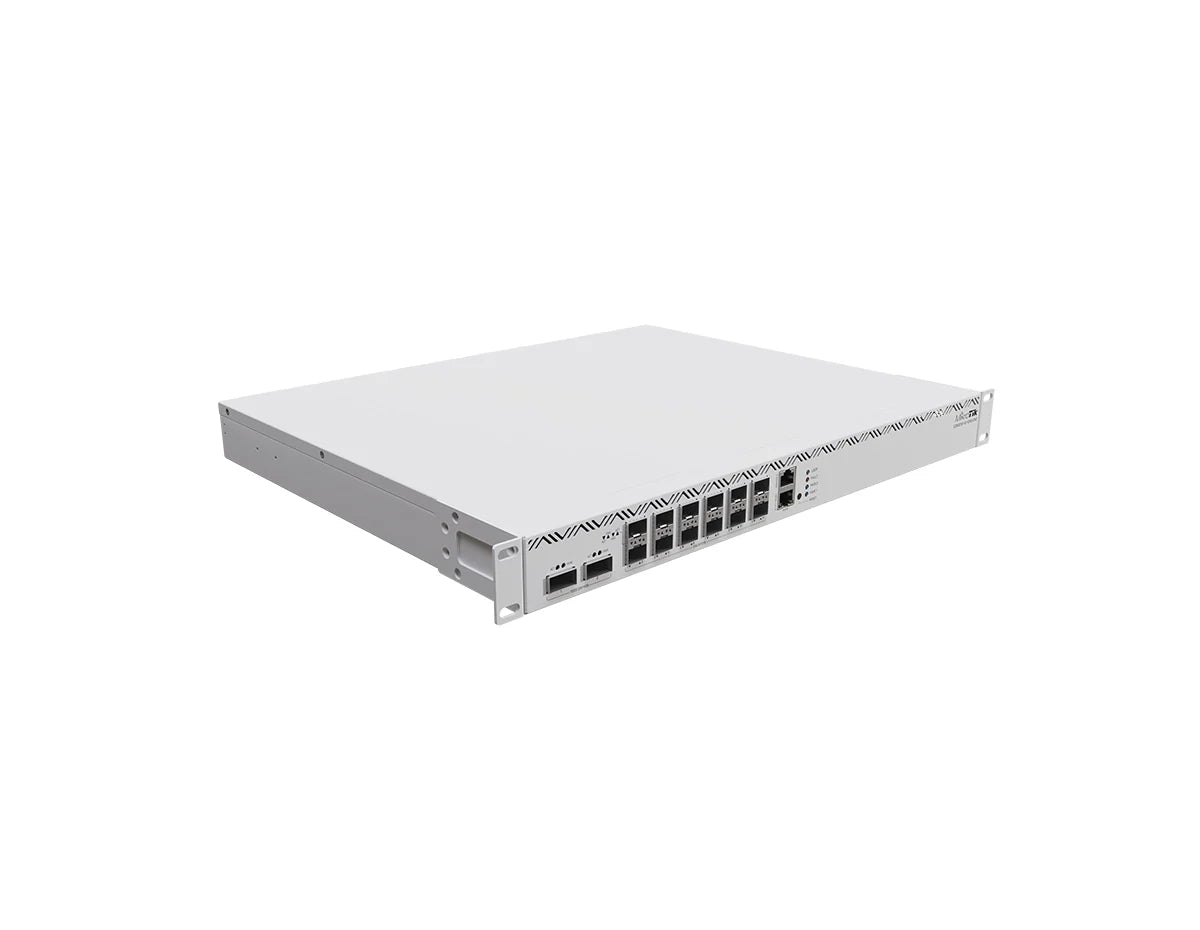

MikroTik CCR2216-1G-12XS-2XQ Router
The CCR2216-1G-12XS-2XQ serves as an accessible and efficient means of accessing 100 Gigabit networking. It is equipped with 2x QSFP28 cages for ultra-fast 100 Gigabit connectivity, in addition to 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. This router ensures seamless data transmission, rendering it well-suited for managing data-intensive operations.
Quick Specs:
-
1x 1 Gigabit Ethernet ports
-
12x 25G SFP28 ports
-
2x 100G QSFP28 ports
-
2x M.2 Slot
-
16 GB RAM
Please see the related tabs for the CCR2216-1G-12XS-2XQ datasheet and compatible accessories.
