[shortdesc]
- The Connectivity Router - your best companion when it comes to SFP, SFP+ and SFP28 management! 1, 10 and 25 Gbps ports in a single device to make your life easier.
[/shortdesc]
[properties]
| Properties |
MikroTik CCR2004-1G-12S+2XS |
| Description |
The Connectivity Router - your best companion when it comes to SFP, SFP+ and SFP28 management! 1, 10 and 25 Gbps ports in a single device to make your life easier. |
| Product Family |
CCR Series |
| Product Type |
Ethernet Router |
| Features |
72 core CPU
1 GHz clock per core
State of the art TILE GX architecture
over 120 million pps packet throughput
up to 80 Gbps throughput Full set of features
8x SFP+ ports
16GB ECC RAM
Ports directly connected to CPU
microSD and 2x M.2 |
| Ports |
| 1G Ethernet ports |
1 |
| 10G SFP+ |
12 |
| 25G SFP28 |
2 |
| Serial console port |
1 RJ45 |
| Memory card type |
microSD, 2x M.2 |
| Smart card slot |
Yes |
| Number of M.2 slots |
2 |
| Extras |
CPU temperature monitor
PCB temperature monitor
Voltage Monitor |
| Dimensions |
443 x 224 x 44 mm |
| Number of AC inputs |
2 |
| AC input range |
100-240 |
| Max power consumption |
49 W |
| Max power consumption without attachments |
32 W |
| Cooling type |
2 fans |
[/properties][specifications]
| Specifications |
CCR2004-1G-12S+2XS |
| Memory |
4 GB |
| NAND Storage size |
128 MB |
| CPU |
AL32400 1700 MHz |
| CPU core count |
4 |
| OS |
MikroTik RouterOS v7, Level 6 license, free product lifetime upgrades |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-20°C to 60°C tested |
| IPsec hardware acceleration |
Yes |
| Certification |
CE, EAC, ROHS |
| IPsec test results |
| Mode |
IPsec throughput |
| Single tunnel |
|
| 1400 byte |
|
| AES-128-CBC + SHA1 |
kpps: 303.6
Mbps: 3400.3 |
| 512 byte |
|
| AES-128-CBC + SHA1 |
kpps: 353.6
Mbps: 1448.3 |
| 64 byte |
|
| AES-128-CBC + SHA1 |
kpps: 354.7
Mbps: 181.6 |
| 256 tunnels |
|
| 1400 byte |
|
| AES-128-CBC + SHA1 |
kpps: 302.0
Mbps: 3382.4 |
| AES-128-CBC + SHA256 |
kpps: 302.0
Mbps: 3382.4 |
| AES-256-CBC + SHA1 |
kpps: 300.3
Mbps: 3363.4 |
| AES-256-CBC + SHA256 |
kpps: 300.3
Mbps: 3363.4 |
| 512 byte |
|
| AES-128-CBC + SHA1 |
kpps: 378.8
Mbps: 1551.6 |
| AES-128-CBC + SHA256 |
kpps: 378.8
Mbps: 1551.6 |
| AES-256-CBC + SHA1 |
kpps: 374.5
Mbps: 1534.0 |
| AES-256-CBC + SHA256 |
kpps: 374.5
Mbps: 1534.0 |
| 64 byte |
|
| AES-128-CBC + SHA1 |
kpps: 376.4
Mbps: 192.7 |
| AES-128-CBC + SHA256 |
kpps: 376.4
Mbps: 192.7 |
| AES-256-CBC + SHA1 |
kpps: 374.5
Mbps: 191.7 |
| AES-256-CBC + SHA256 |
kpps: 374.5
Mbps: 191.7 |
[/specifications][accesories]
| Accessories |
2 IEC cords
Screw and feet kit (K10)
Rackmount bracket |
[/accesories]

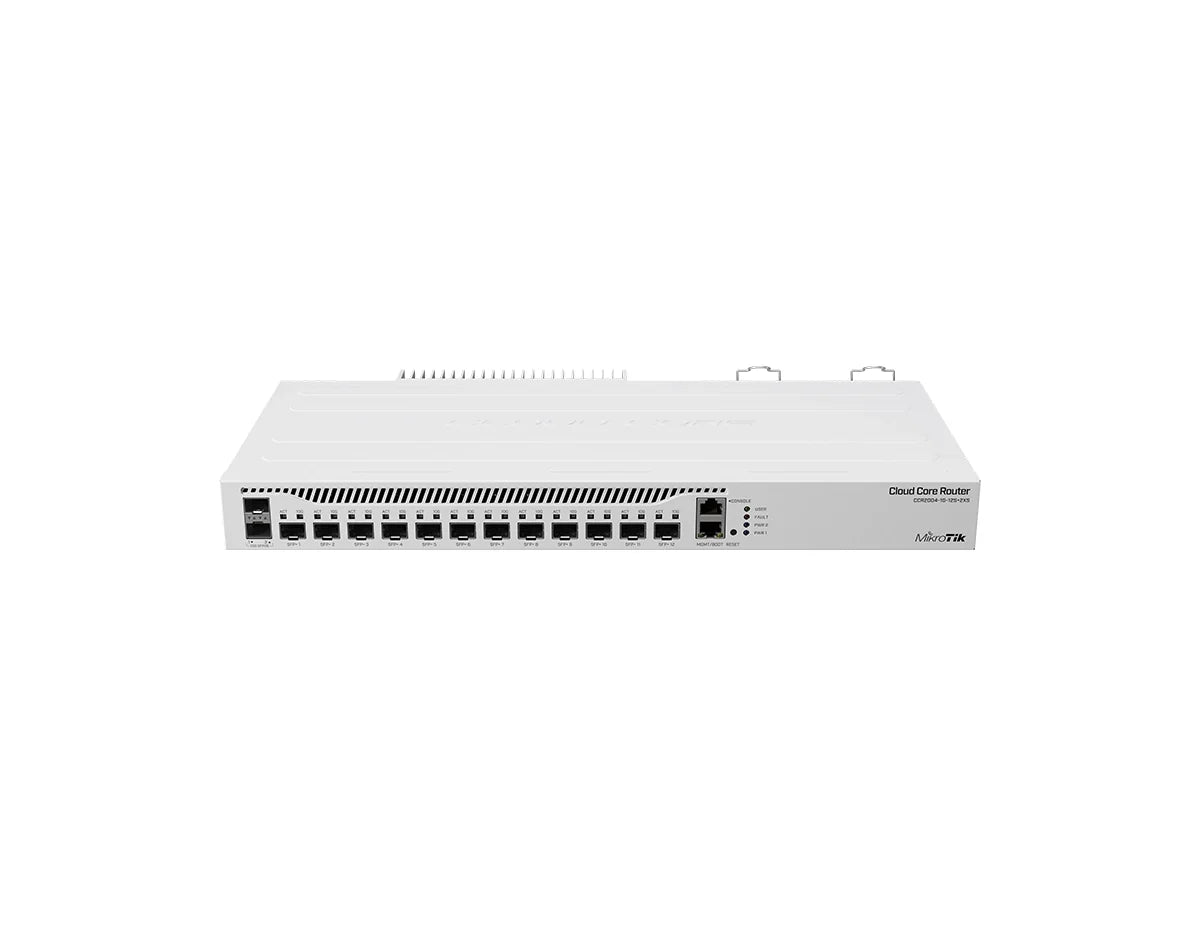

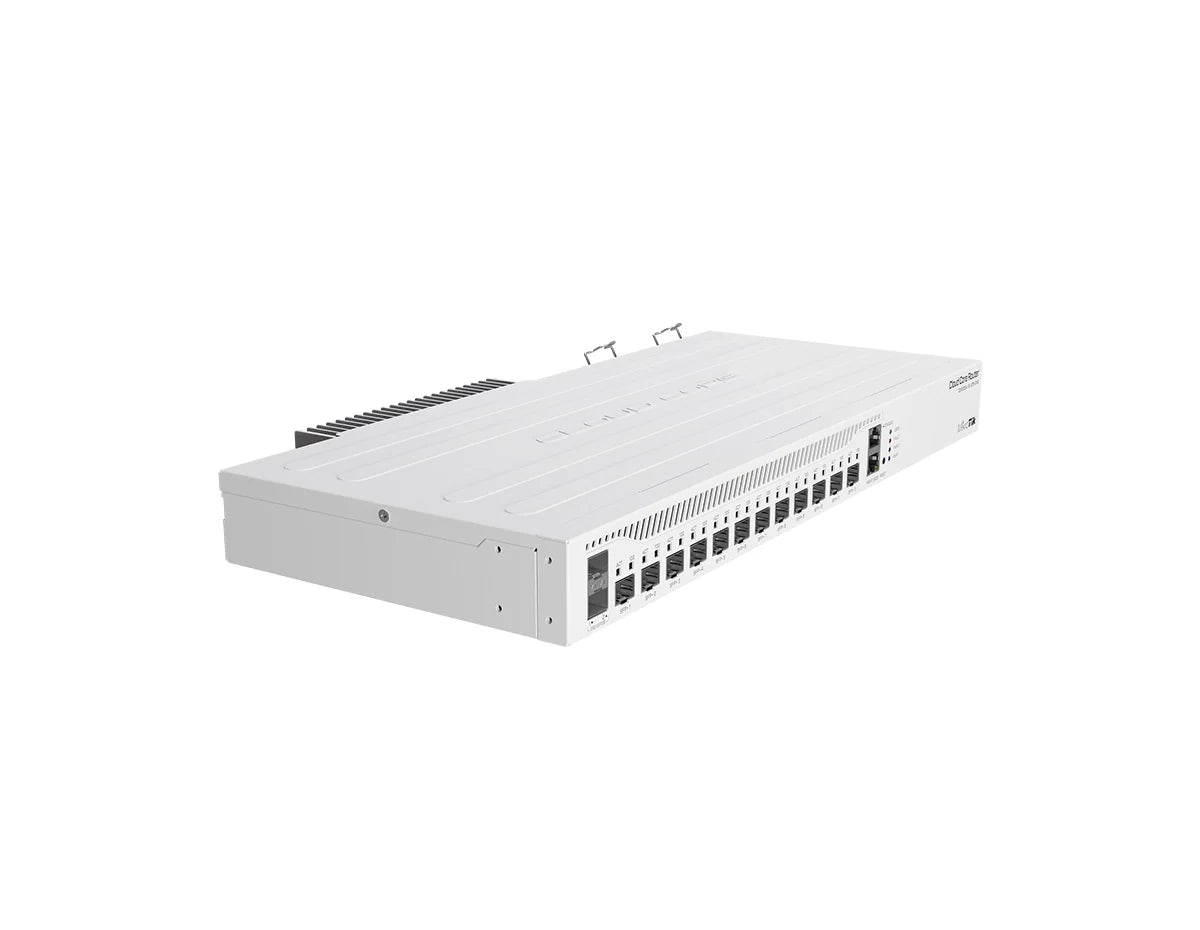

MikroTik CCR2004-1G-12S+2XS Router
The CCR2004-1G-12S+2XS provides a wide range of ports, comprising 12 x 10G SFP+ and 2 x 25G SFP28, establishing it as a robust networking solution. This router delivers unparalleled single-core performance and outstanding outcomes in single tunneling (up to 2.3 Gbps) and BGP feed processing, ensuring high-caliber performance for your network. This product is housed in a durable and space-saving RackMount case. Its sleek 1U rackmount design facilitates effortless incorporation into your current network configuration.
Quick Specs:
-
1x 10/100/1000 Ethernet Port
-
12x 10G SFP+ ports uplink
-
2x 25G SFP28 ports uplink
-
RouterOS v7 / 4GB ECC RAM
Please see the related tabs for the CCR2004-1G-12S+2XS datasheet and compatible accessories.
