[shortdesc]
- Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support and IPsec hardware encryption support
[/shortdesc]
[properties]
| Properties |

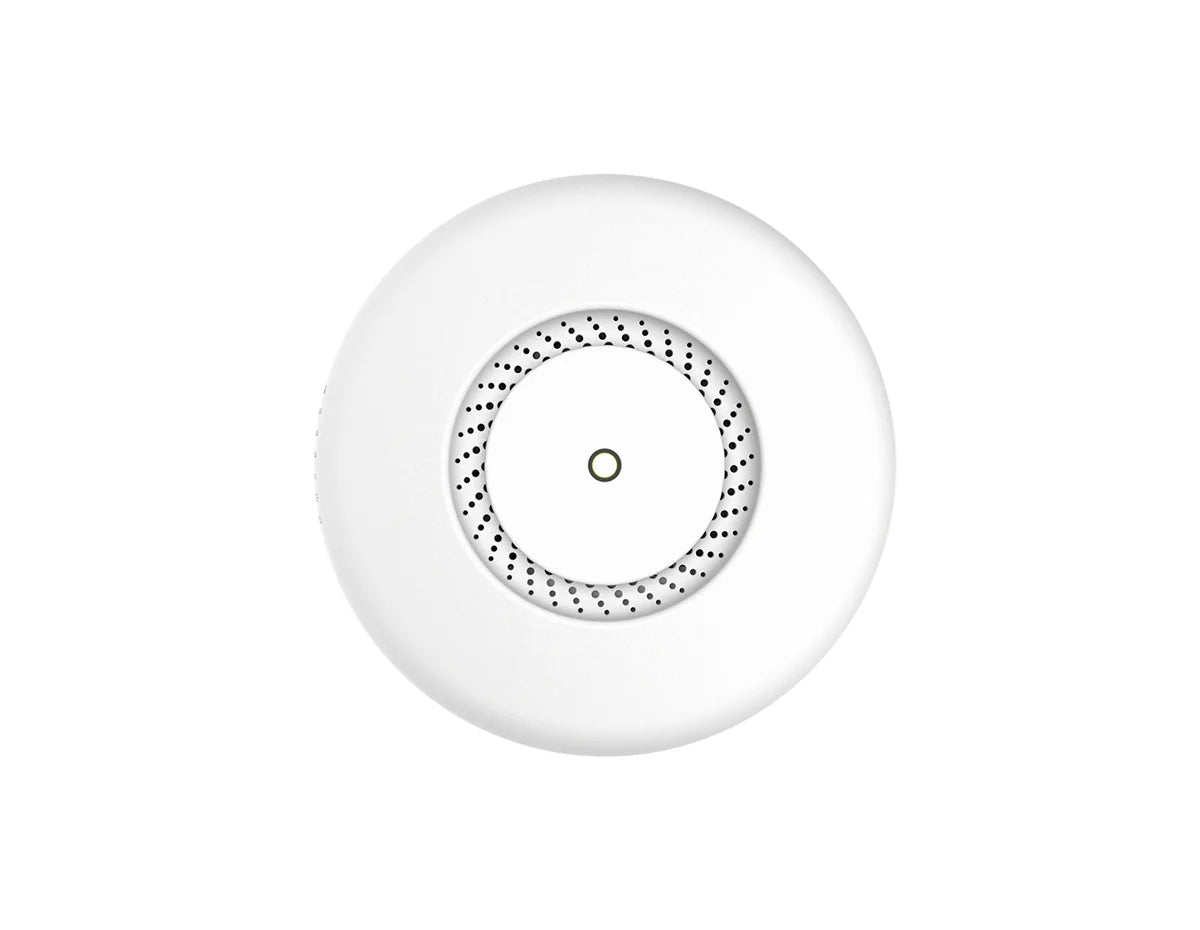

MikroTik cAP ac RBCAPGI-5ACD2ND-US |
| Description |
Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support and IPsec hardware encryption support |
| Product Family |
cAP Series |
| Product Type |
Access Point |
| 10/100/1000 Ethernet ports |
2 |
| Extras |
Mode button |
| Dimensions |
Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
24 W |
| Max power consumption without attachments |
13 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
17-57 V |
| PoE-out ports |
Ether2 |
| PoE out |
Passive PoE up to 57V |
| Max out per port output (input 18-30 V) |
500 mA |
| Max out per port output (input 30-57 V) |
400 mA |
| Max total out (A) |
500 mA |
[/properties][specifications]
| Specifications |
RBCAPGI-5ACD2ND-US |
| Memory |
128 MB |
| Flash Storage size |
16 MB |
| CPU |
IPQ-4018 716 MHz |
| CPU core count |
4 |
| Switch chip model |
IPQ-4018 |
| OS |
RouterOS level 4 license |
| Wireless capabilities |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2 |
| Wireless 2.4 GHz chip model |
IPQ-4018 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
2.5 |
| Wireless 5 GHz chip model |
IPQ-4018 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
| WiFi speed |
AC1200 |
| Wireless specifications |
| 2.4 GHz |
|
| 1MBit/s |
Transmit (dBm): 26
Receive Sensitivity: -100 |
| 11MBit/s |
Transmit (dBm): 26
Receive Sensitivity: -94 |
| 6MBit/s |
Transmit (dBm): 26
Receive Sensitivity: -96 |
| 54MBit/s |
Transmit (dBm): 23
Receive Sensitivity: -78 |
| MCS0 |
Transmit (dBm): 26
Receive Sensitivity: -96 |
| MCS7 |
Transmit (dBm): 22
Receive Sensitivity: -73 |
| 5 GHz |
|
| 6MBit/s |
Transmit (dBm): 26
Receive Sensitivity: -96 |
| 54MBit/s |
Transmit (dBm): 21
Receive Sensitivity: -80 |
| MCS0 |
Transmit (dBm): 26
Receive Sensitivity: -96 |
| MCS7 |
Transmit (dBm): 20
Receive Sensitivity: -75 |
| MCS9 |
Transmit (dBm): 18
Receive Sensitivity: -70 |
| MTBF |
Approximately 100.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| IPsec hardware acceleration |
Yes |
| Certification |
CE, FCC, IC, EAC, ROHS |
[/specifications][accesories]
| 24V 1.2A power adapter |
| Ceiling mount |
| Gigabit PoE injector |
| K-46 screw kit |
[/accesories]
