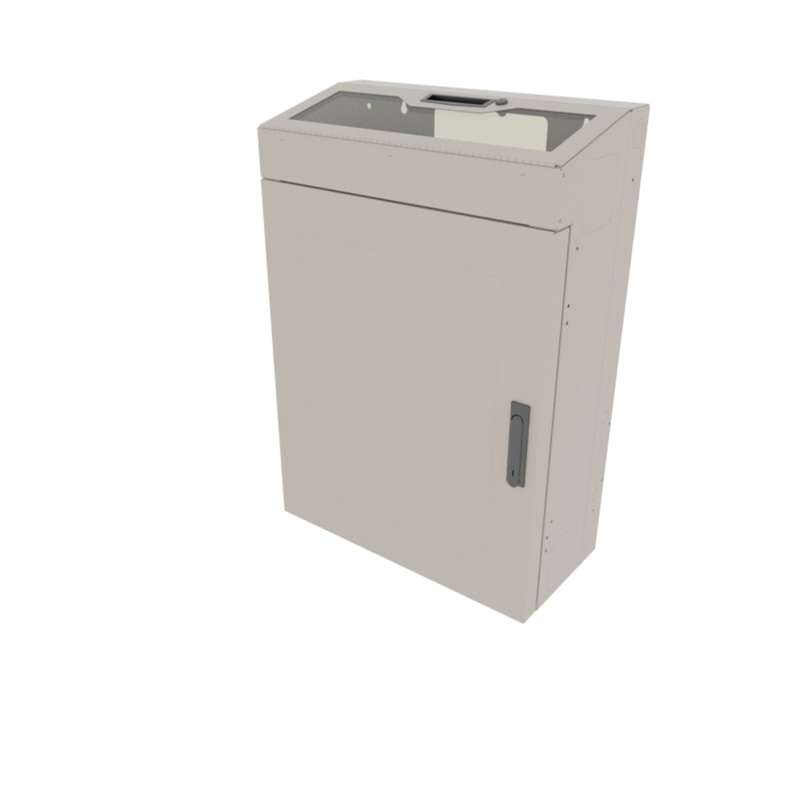

With a low-profile, patented design, this pre-configured VWM Series Wall Cabinet is ideal for vertically mounting deeper equipment in a “knobs-up” orientation within 4 spaces and 30” usable depth. It includes everything needed for a simple solution, but also can support additional customization in Lever Lock™; small device mounting within the cabinet and/or on the door, thermal management, cable management and power distribution for a complete system that ensures uptime and reliability on the wall.

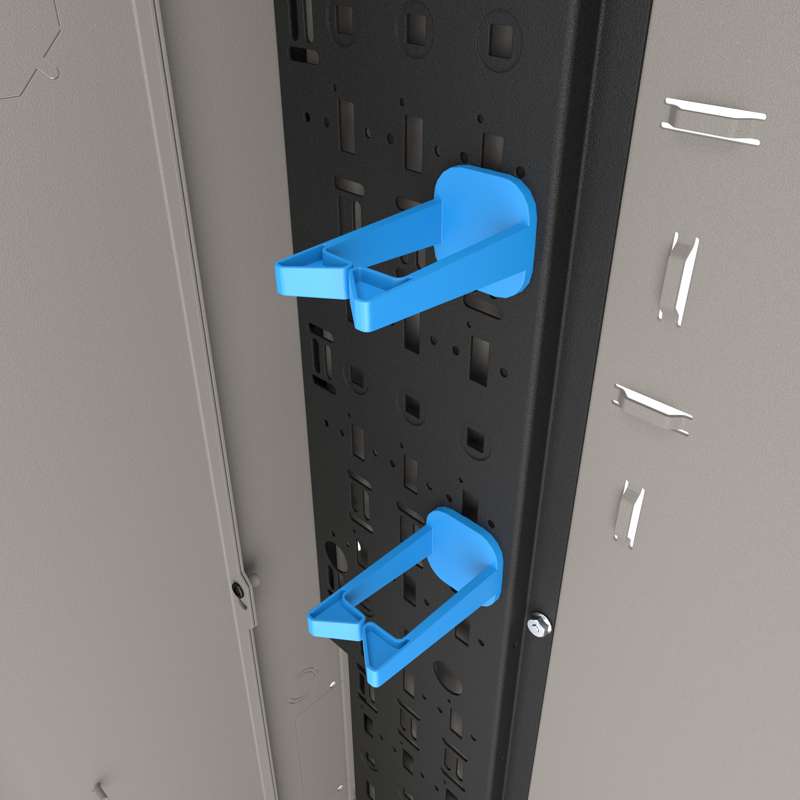

• Now Forward Compatible with native mounting for Forward Cable Management in the backpan!
• 4 spaces and 30” of usable depth for vertical “knobs up” equipment mounting
• Rackrail features both 10-32 thread and cage nut
• Flexible position spaces to mount the rackrail where it’s needed
• Split door with hinged solid top that enables end-user access to controls but restricted visibility
  • Both door and hinged top are lockable and keyed separately for security
• Laser knockouts on the top, bottom and sides for cable entry and thermal management
• Integral electrical box simplifies power distribution
• Finished in a black textured powder coat

Dimensions & Measurements

• Depth: 12 inches
• Height: 36 inches
• Width: 25 inches
• Product Weight: 62.5 lbs
• Shipping Weight: 73 lbs (33.1 kg)
• UL Load Capacity: 150 lbs (68 kg)
• Usable Depth: 27.8 inches
• Rack Units: 4 RU

Characteristics & Features

• Available Internationally: Yes
• Color: Black
• Door Type: Solid Door
• Country of Origin: USA
• Finish: Black Wrinkle Powder Coat
• Forward Compatible: Yes
• Handles: 25mm x 150mm Swing Handle
• Material: Steel
• Rack Rail Type: 10-32 and Cage Nut
• Rack Type: Wall-mounted
