Micron 3.84TB NVMe U.3 G4 x4 RI 2.5" TCG Opal SSD 7450 Pro Series for Supermicro Server MTFDKCC3T8TFR

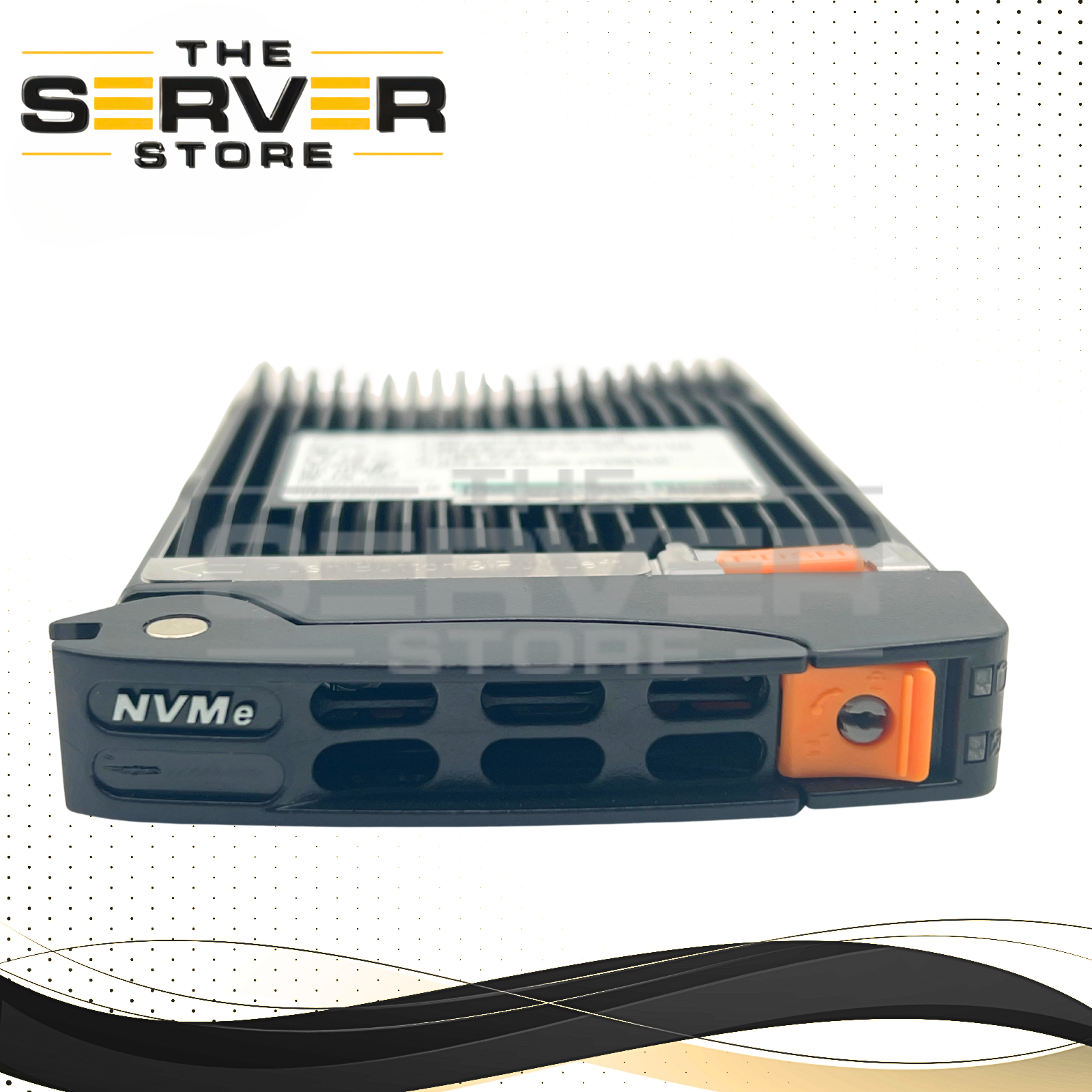

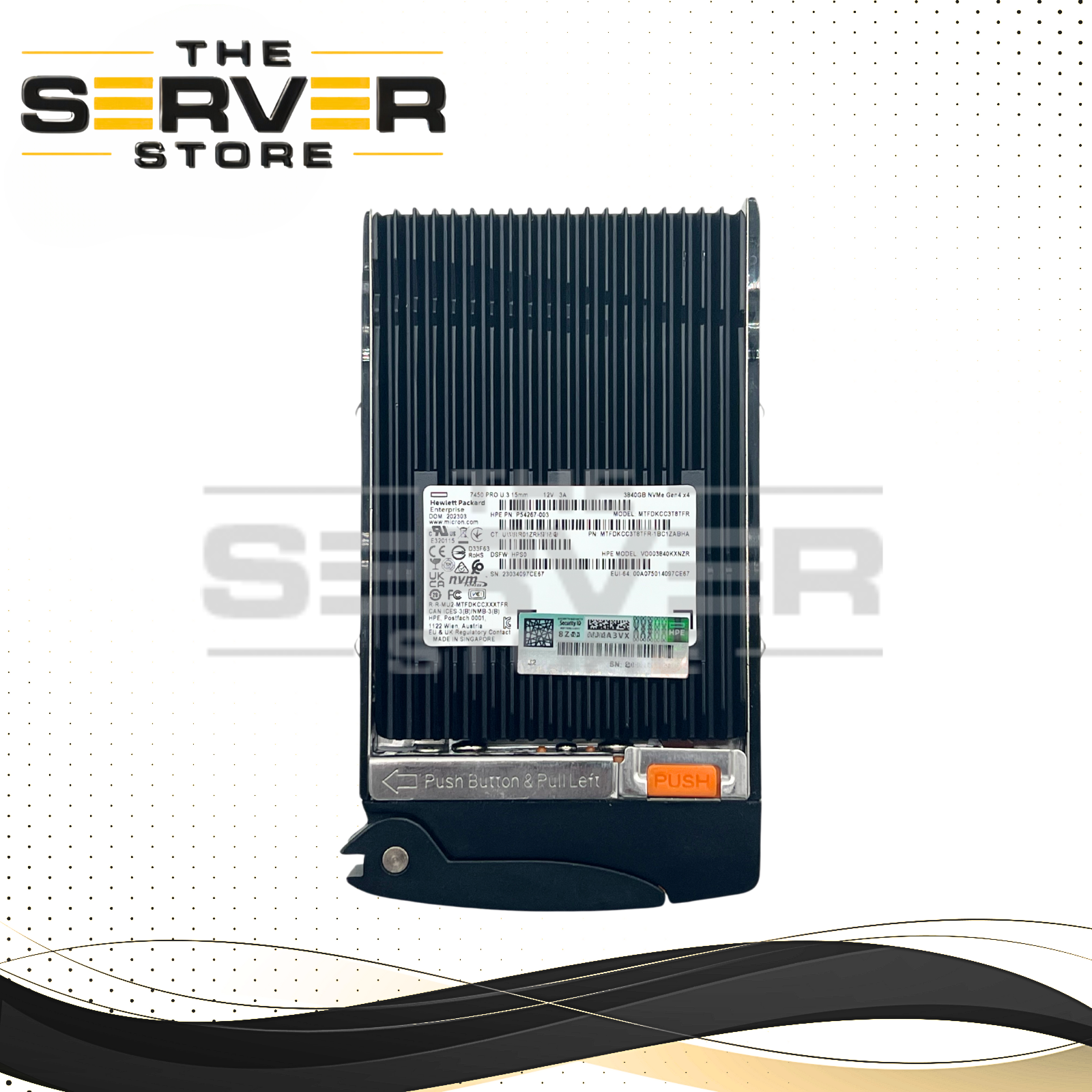

Note: The Micron 7450 Pro U.3 NVMe SSD is supplied with a Supermicro-compatible tray. (This tray may vary depending on our inventory.)
The Micron 7450 Pro Series 3.84TB NVMe SSD (MTFDKCC3T8TFR) is an enterprise-grade, read-intensive solid-state drive designed for modern data centers, cloud infrastructure, and high-performance computing environments. Built with advanced 176-layer 3D TLC NAND and a PCIe Gen4 interface, it delivers exceptional throughput, low latency, and strong reliability for demanding workloads.
Core Specifications
-
Capacity: 3.84TB
-
Interface: PCIe Gen4 x4, NVMe 1.4
-
Form Factor: 2.5" SFF (U.3, 15mm)
-
NAND Type: 176-layer 3D TLC NAND
-
Workload Type: Read Intensive (≈1 DWPD)
-
Endurance: ~7,000 TBW
-
MTTF: ~2 million hours
-
Dimensions: 100.45 x 69.85 x 15mm
-
Warranty: 5-Year Limited
Performance
-
Sequential Read: Up to 6,800 MB/s
-
Sequential Write: Up to 5,300 MB/s
-
Random Read (4K): Up to ~1,000,000 IOPS
-
Random Write (4K): Up to ~180,000 IOPS
-
Latency: ~80µs (read), ~15µs (write)
-
QoS: Consistent low-latency performance for enterprise workloads
Key Features
-
TCG Opal Security: Hardware-based encryption for data-at-rest protection
-
Power-Loss Protection (PLP): Safeguards in-flight data during unexpected outages
-
Secure Boot & Firmware Validation: Protects against unauthorized firmware access
-
OCP NVMe Compliance: Optimized for hyperscale and cloud environments
-
High QoS Consistency: Designed for databases, virtualization, and analytics workloads
Supermicro Server Compatibility
This SSD is compatible with Supermicro servers that support NVMe U.2/U.3 or tri-mode backplanes (PCIe Gen4 recommended for full performance).
Supported Supermicro Platforms (examples):
SYS-111C-NR, SYS-121BT-HNTR, SYS-1029U-TN10RT, SYS-221BT-HNTR, SYS-2029U-TR4, AS-2124GS-TNR, SYS-4029GP-TRT2, AS-4124GS-TNR, SYS-621BT-HNTR, SYS-6027TR-DTRF, ARS-110M-NR, SSG-1029P-NES24R, SSG-2029P-E1CR24L, SYS-5019P-MR, SYS-6019P-WTR
-
Gen4 Platforms (X12/X13 / AMD H12/H13): Full PCIe Gen4 performance
-
Legacy Gen3 Platforms (X10/X11): Compatible but limited to Gen3 speeds
Important Notes
-
Tray Requirement: Requires a compatible Supermicro 2.5" SFF NVMe tray (MCP-220 series or equivalent)
-
U.3 Compatibility: Backward compatible with U.2 slots (performance depends on controller/backplane)
-
Cooling: Ensure adequate airflow—enterprise NVMe drives generate significant heat
-
Use Case: Ideal for databases (SQL, Oracle), virtualization, cloud storage, and AI workloads
This Micron 7450 Pro SSD is a high-performance, secure, and scalable storage solution for Supermicro enterprise servers, delivering a strong balance of speed, endurance, and reliability for read-intensive applications.
