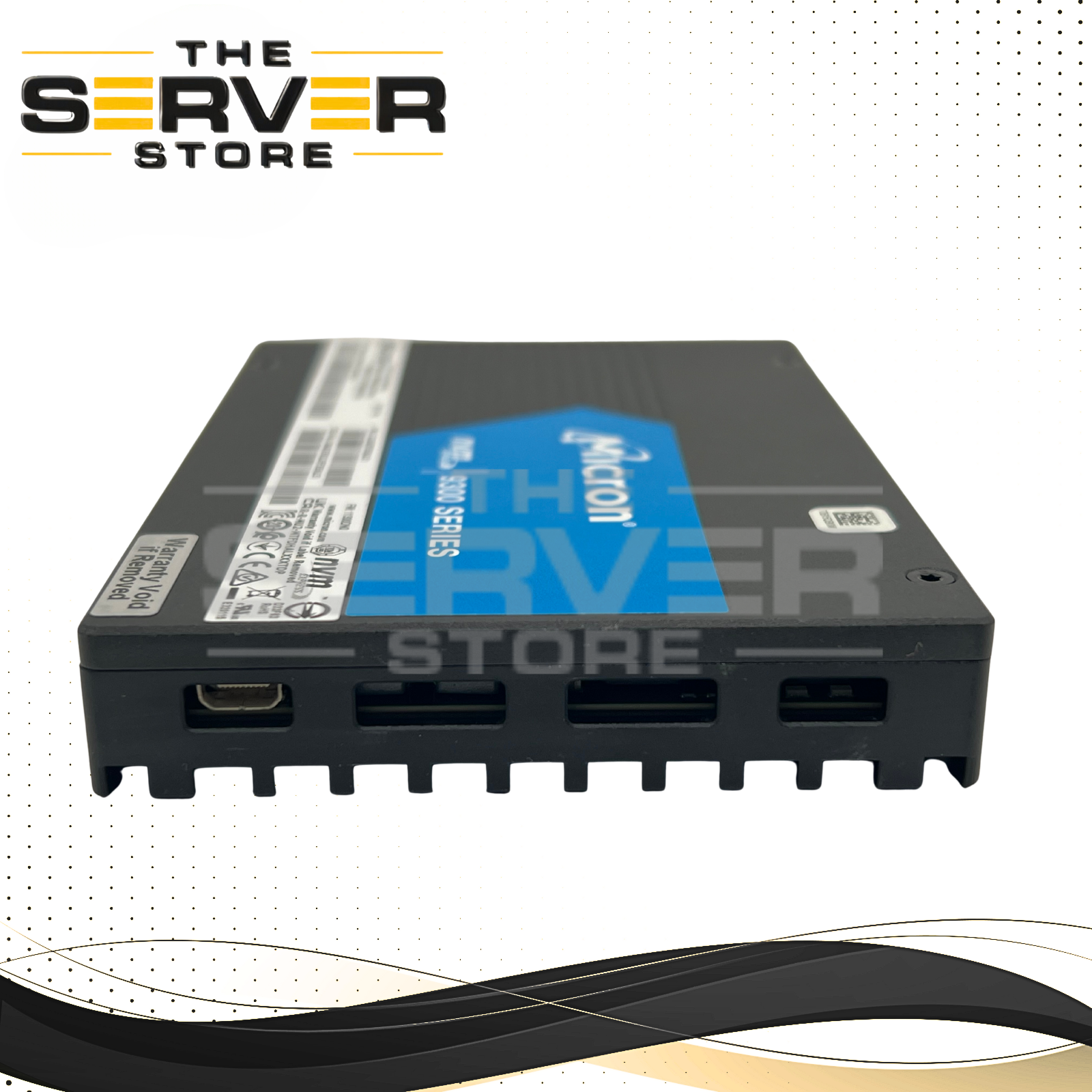

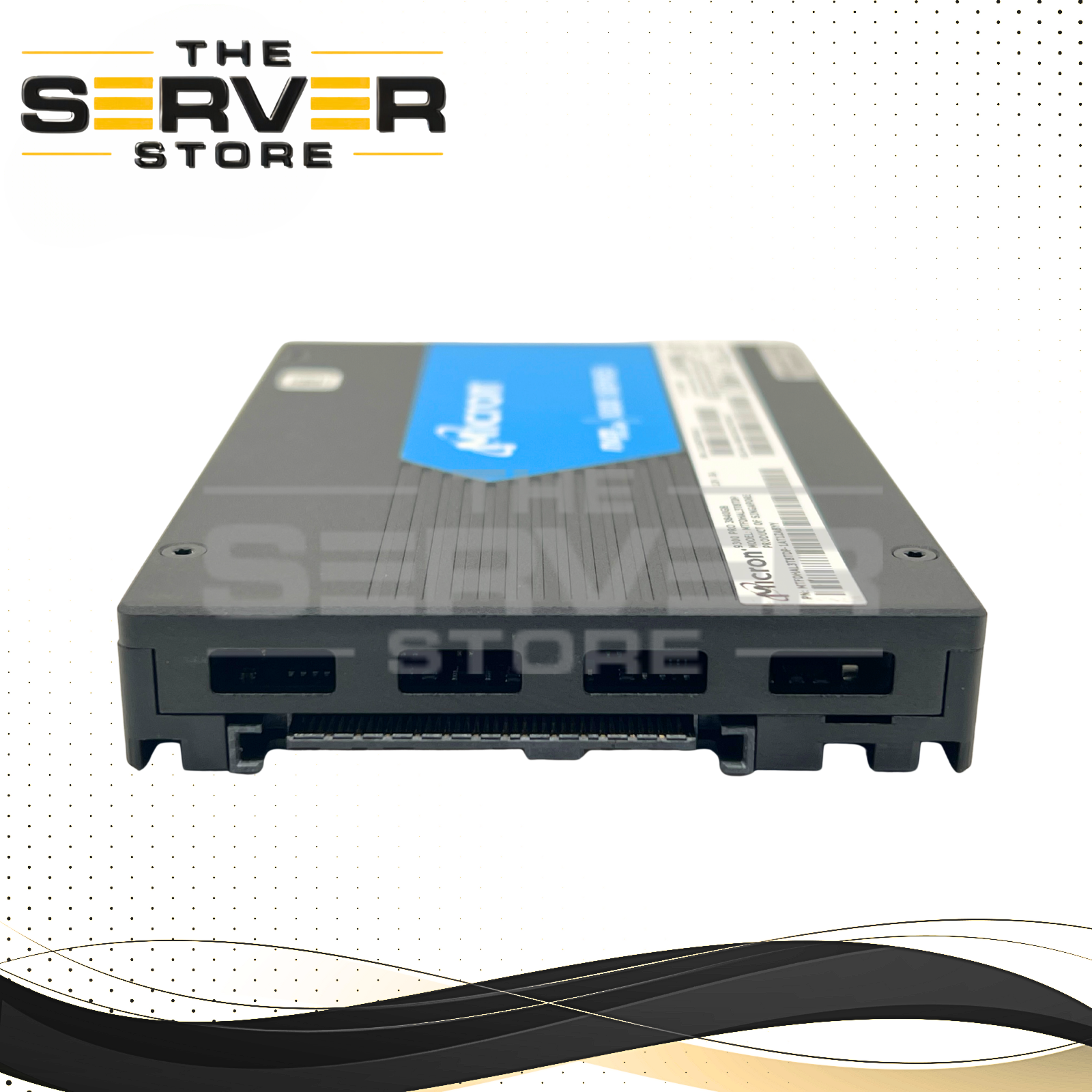

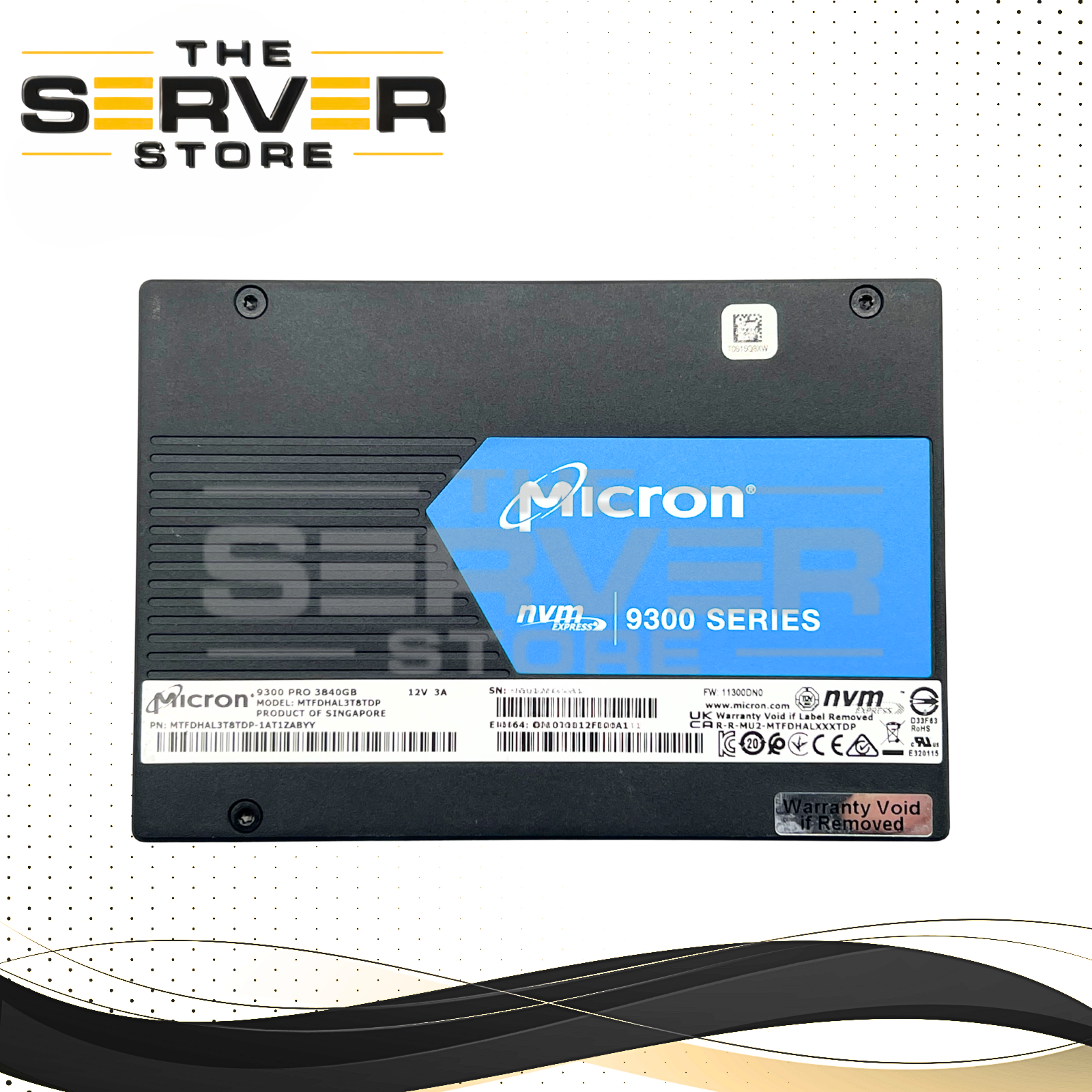

Micron 3.84TB NVMe U.2 PCIe Gen3 x4 RI 2.5" SSD – 9300 Pro Series
Part Numbers: MTFDHAL3T8TDP | MTFDHAL3T8TDP-1AT1ZABYY | MTFDHAL3T8TDP-1AT1Z
Overview
The Micron 9300 Pro 3.84TB NVMe SSD is an enterprise-grade, read‑intensive storage solution built for high-performance data center environments. Engineered to accelerate demanding workloads such as AI/ML, caching, NoSQL databases, and OLTP applications, it delivers exceptional speed, low latency, and robust data protection.
Key Features
- Enterprise-class NVMe SSD optimized for read-intensive workloads
- High capacity storage designed for cloud and hyperscale deployments
- PCIe Gen3 x4 interface for fast data throughput
- Advanced 3D TLC NAND technology for endurance and efficiency
- Built-in enterprise security and reliability features
Core Architecture
-
Capacity: 3.84TB (unformatted, 1TB = 1 trillion bytes)
-
Form Factor: 2.5-inch Small Form Factor (15mm thickness)
-
Interface: PCIe Gen3 x4
-
Protocol: NVMe 1.2
-
Connector: U.2 (SFF-8639)
-
NAND Flash: Micron 64-layer 3D TLC NAND
-
Controller: Microchip Belmar (PM8607)
Performance (Steady State)
-
Sequential Read Speed: Up to 3,500 MB/s
-
Sequential Write Speed: 3,100 MB/s to 3,500 MB/s
-
Random Read (4KB): Up to 850,000 IOPS
-
Random Write (4KB): Up to 145,000 IOPS
-
Average Latency:
Reliability & Endurance
-
Endurance Rating: 16,800 TBW
-
Drive Writes Per Day: Approximately 1 DWPD (over 5 years)
-
MTBF: 2,000,000 hours
-
UBER: Less than 1 sector per 10¹⁷ bits read
Power & Environmental
-
Power Supply:
- 12V main supply (±8%)
- 3.3V auxiliary SMBus (±8%)
-
Power Consumption:
- Sequential Read: Up to 14W
- Sequential Write: Up to 21W
- Idle: 6.5W
-
Operating Temperature: 0°C to 70°C
-
Non-Operating Shock: 1000G @ 0.5ms
-
Non-Operating Vibration: 3.1 GRMS (5–800Hz)
Enterprise Features
-
Power Loss Protection (PLP): Protects data-in-flight and data-at-rest
-
Multi-Tenancy Support: Up to 32 NVMe namespaces
-
Flex Capacity: Adjustable capacity for increased endurance and performance
-
Data Path Protection: End-to-end protection for user data and metadata
-
Security: Digitally signed firmware and crypto erase capability
-
Management: Compatible with Micron Storage Executive tools
Physical Specifications
-
Height: 15.00 mm
-
Width: 70.10 mm
-
Length: 100.45 mm
-
Weight: Less than 235 grams
Ideal Applications
- Cloud and hyperscale data centers
- Artificial intelligence and machine learning workloads
- Caching and real-time analytics systems
- NoSQL and large-scale database environments
- Enterprise storage and virtualization platforms
The Micron 9300 Pro 3.84TB NVMe SSD delivers a powerful combination of performance, endurance, and enterprise-grade features, making it a reliable choice for modern, data-intensive infrastructures.
