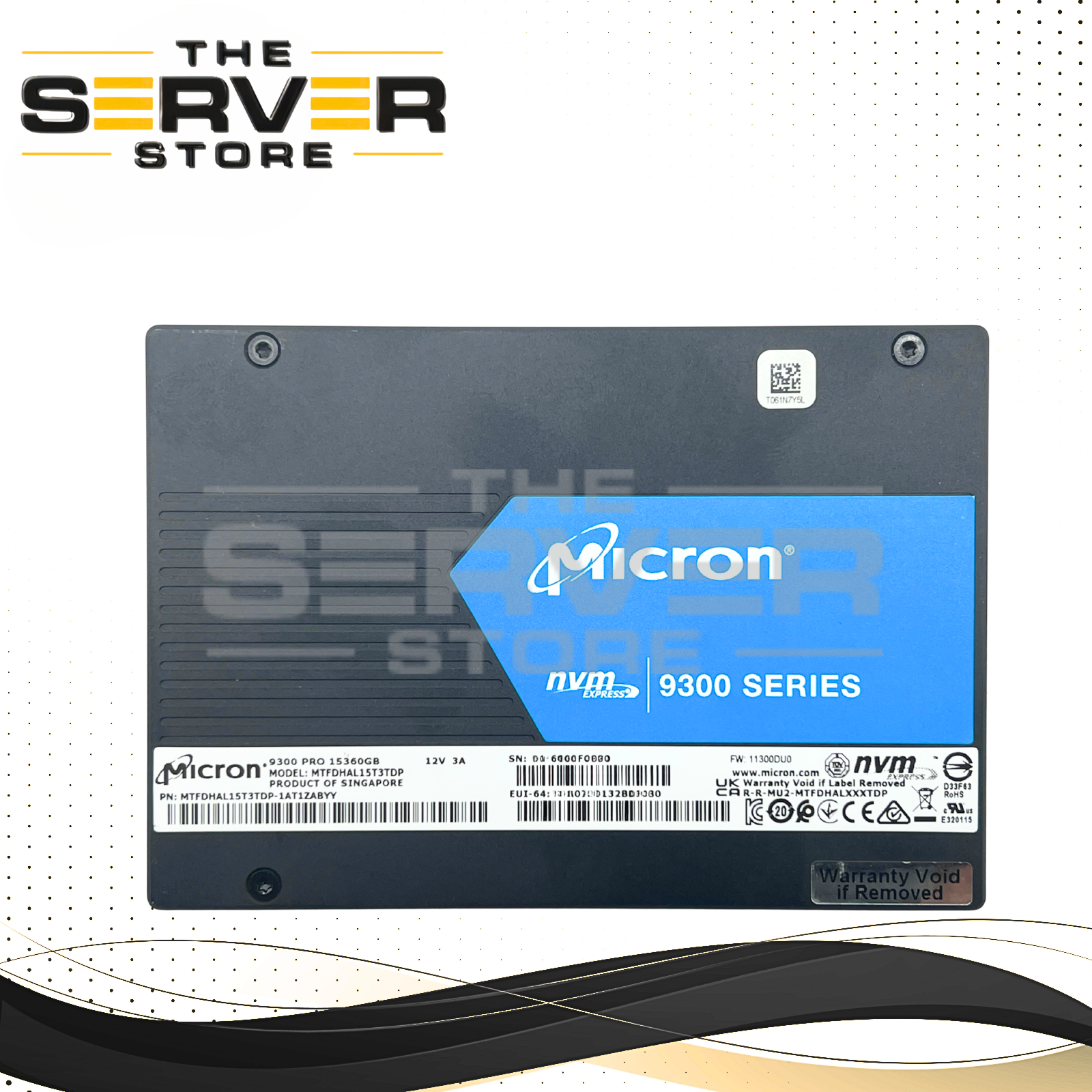

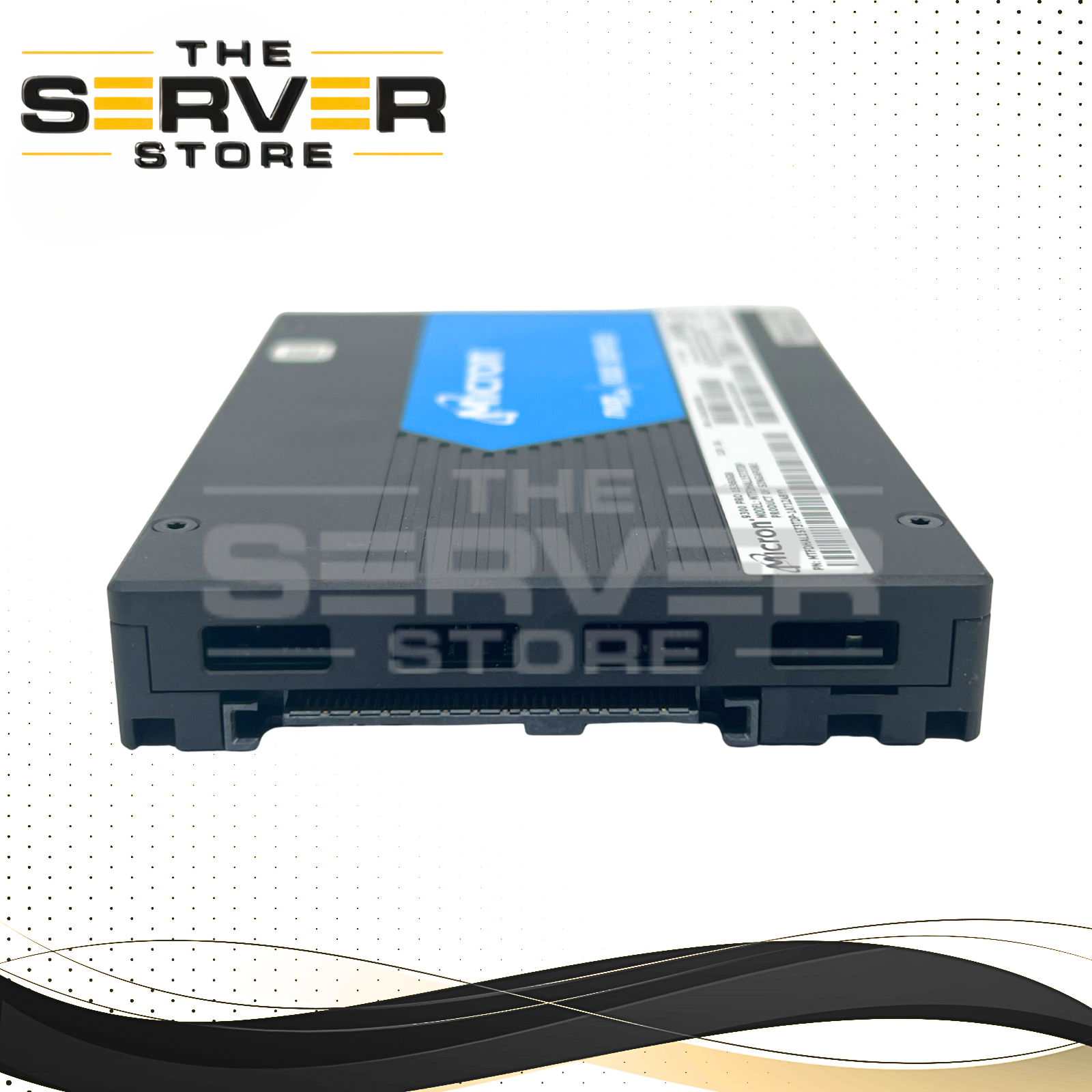

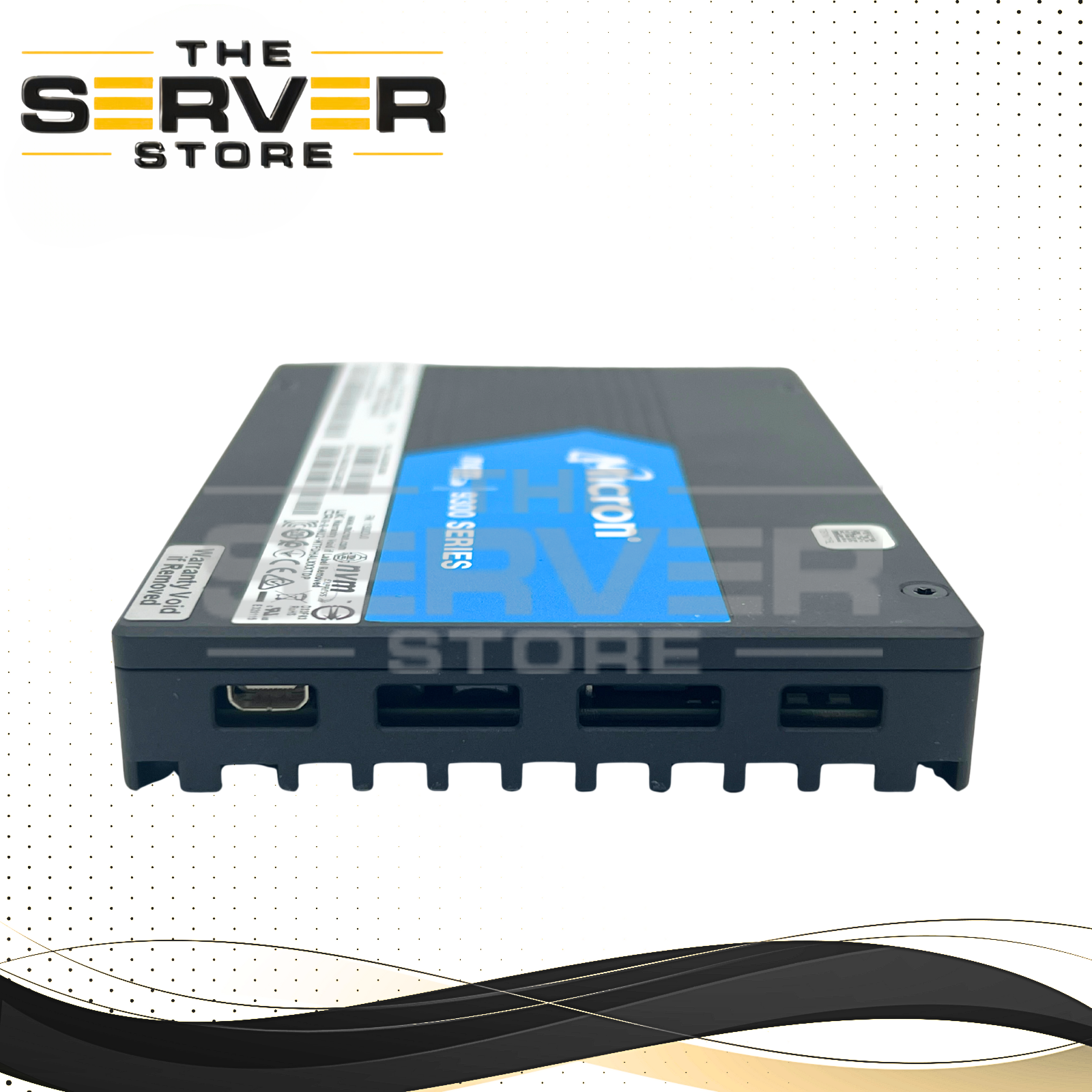

Micron 15.36TB NVMe U.2 PCIe Gen 3.0 x4 RI SFF 2.5" SSD 9300 PRO Series Enterprise MTFDHAL15T3TDP
Related Part Numbers
MTFDHAL15T3TDP, MTFDHAL15T3TDP-1AT1Z, MTFDHAL15T3TDP-1AT1ZABYY
Core Architecture
- Brand: Micron
- Series: 9300 PRO (Read-Intensive / RI)
- Model Number: MTFDHAL15T3TDP
- Part Number: MTFDHAL15T3TDP-1AT1ZABYY
- Capacity: 15.36TB (unformatted)
- Form Factor: U.2 (SFF-8639) 2.5-inch, 15mm height
- Interface: PCIe Gen 3.0 x4, NVMe
- NAND Flash: Micron 64-layer 3D TLC NAND
- Controller: Microchip / Microsemi Belmar PM8607
Performance Specifications (Steady State)
- Sequential Read: Up to 3,500 MB/s
- Sequential Write: Up to 3,500 MB/s
- Random 4KB Read: Up to 850,000 IOPS
- Random 4KB Write: Up to 150,000 IOPS
- Average Read Latency: 86 µs
- Average Write Latency: 11 µs
Reliability and Endurance
- Endurance Rating: 1 DWPD
- Total Bytes Written (TBW): Approx. 33.6 PB (34,406 TB)
- MTTF: 2 million device hours
- UBER: < 1 sector per 10¹⁷ bits read
- Data Protection: End-to-end data path protection (user and metadata)
- Power Loss Protection: Full protection for in-flight and at-rest data
Power and Environmental
- Power Input: 12V (±8%)
- Max Read Power: 14W
- Max Write Power: 21W
- Operating Temperature: 0°C to 70°C
- Non-Operating Shock: 1000G at 0.5ms
- Non-Operating Vibration: 3.1 GRMS (5–800Hz)
Advanced Features
- Multi-Tenancy: Up to 32 NVMe namespaces
- Flex Capacity: Adjustable capacity for performance/endurance tuning
- Security: Secure firmware, crypto erase (non-SED)
- Management Software: Micron Storage Executive supported
Physical Specifications
- Dimensions (L x W x H): 100.45mm x 70.10mm x 15.00mm
- Weight: < 235g
