[shortdesc]
- Mellanox ConnectX-6 100GbE Single-Port Adapter Card (MCX653105A-ECAT-SP) delivers ultra-high-speed network connectivity with flexible support for both InfiniBand and Ethernet protocols, making it ideal for high-performance data center and enterprise applications
[/shortdesc]
[specifications] [/specifications]

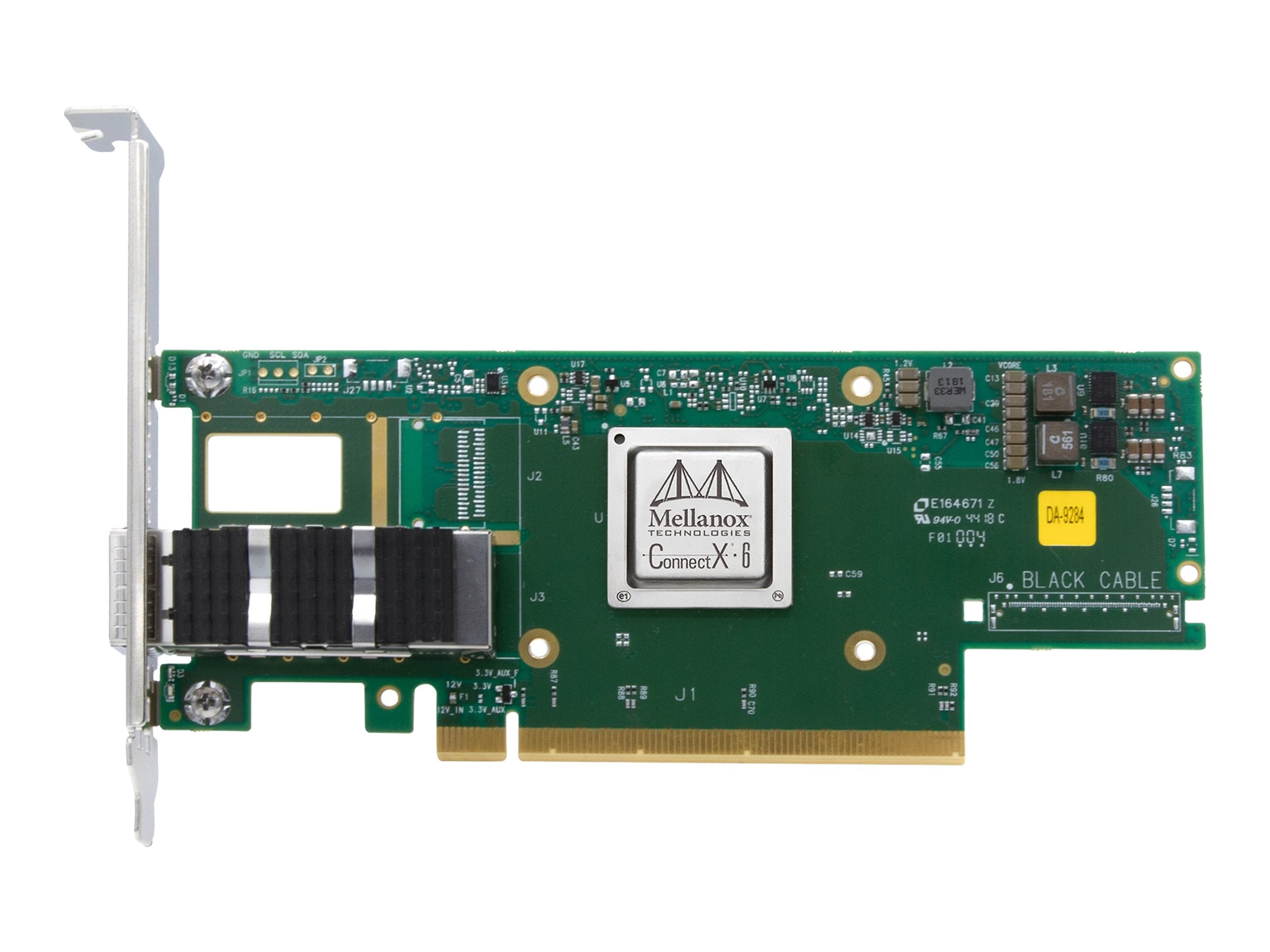

Mellanox ConnectX-6 100GbE Single-Port Adapter Card (MCX653105A-ECAT-SP)
The Mellanox ConnectX-6 100GbE Single-Port Adapter Card (MCX653105A-ECAT-SP) provides cutting-edge connectivity solutions, enabling both InfiniBand and Ethernet speeds up to 100Gb/s. Designed for data-intensive applications, this adapter features a QSFP56 interface, PCIe 4.0 x16 support, and advanced capabilities like RDMA and SR-IOV for efficient and low-latency data transfer. Its support for HDR100, EDR, and other high-speed protocols makes it an ideal choice for scalable and high-performance networking in modern data centers.
Key Features:
-
High-Speed Connectivity: Supports InfiniBand HDR100 and Ethernet data rates up to 100Gb/s.
-
Flexible Interface: Equipped with a single-port QSFP56 and PCIe 4.0 x16 host interface for seamless integration.
-
Enhanced Performance: Delivers sub-600ns latency and up to 215 million messages per second.
-
Advanced Protocol Support: Compatible with multiple InfiniBand and Ethernet standards, including SDR, DDR, QDR, FDR, and EDR.
-
RDMA and SR-IOV: Enables direct data access and efficient I/O virtualization for high throughput and low latency.
-
Energy Efficient: Operates with a maximum power consumption of 15.6W.
-
Robust Design: Operates in temperatures ranging from 0°C to 55°C, ensuring reliability in demanding environments.
Technical Specifications:
-
Technology: Virtual Protocol Interconnect (VPI)
-
Ports: Single-Port QSFP56
-
Maximum Speed: 100Gb/s, HDR100
-
Interface: PCIe 4.0 x16
-
InfiniBand Support: SDR, DDR, QDR, FDR, EDR, HDR100
-
Ethernet Support: 1/10/25/40/50/100 Gb/s
-
RDMA: Supported
-
SR-IOV: Supported
-
Hardware I/O Virtualization: Enabled
-
Dimensions: 6.6" x 2.71" (167.65mm x 68.90mm)
-
Power Consumption: 15.6W max
-
Operating Temperature: 0°C to 55°C
-
Storage Temperature: -40°C to 70°C
