Description

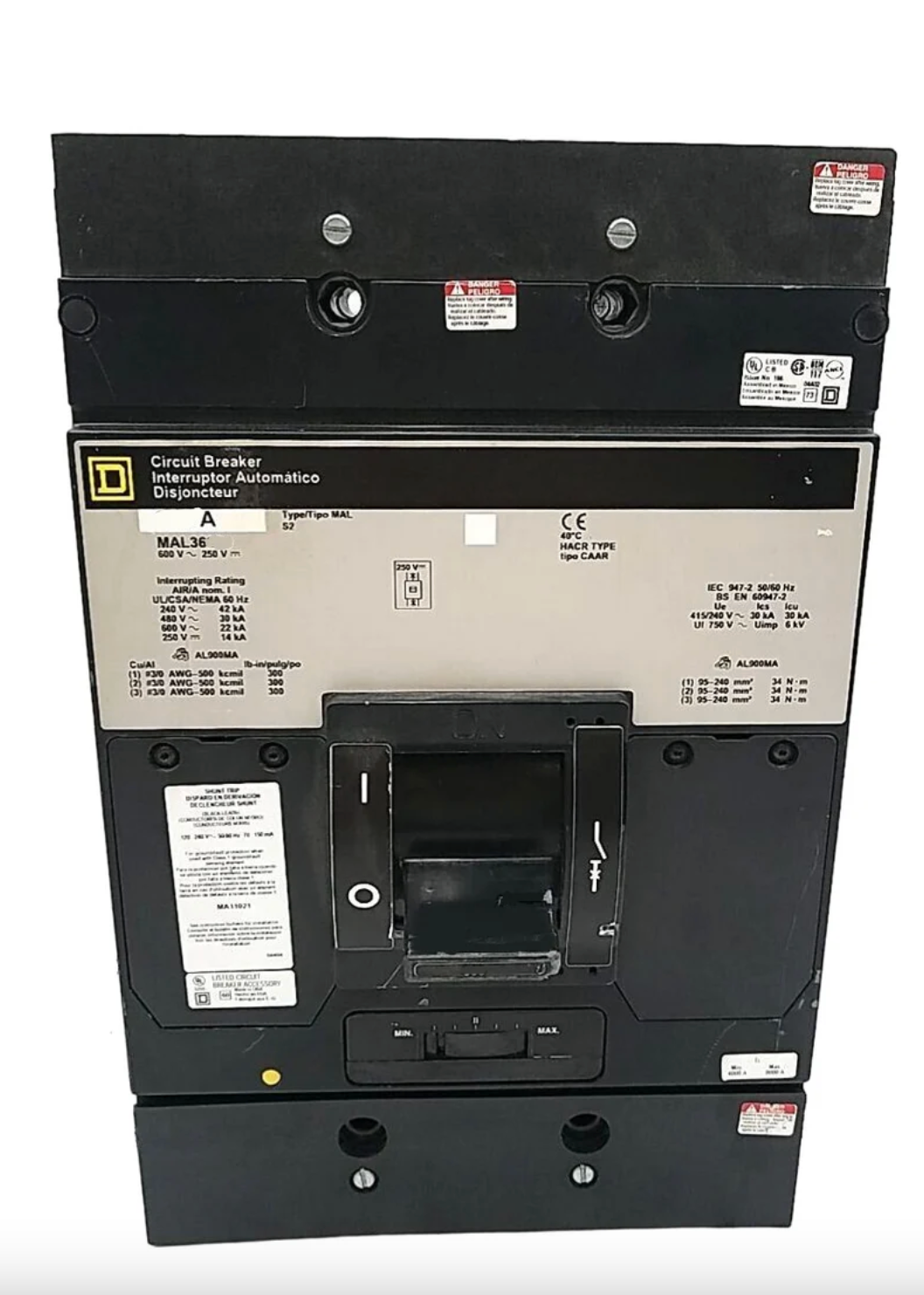

The Schneider Electric MAL261000 is a thermal-magnetic molded case circuit breaker designed to protect high-current electrical circuits from overloads and short-circuit conditions. It delivers dependable interruption performance for two-pole power systems operating at up to 600 volts. This breaker is primarily used in industrial and commercial power distribution applications requiring robust feeder protection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Circuit Breaker |
| Part Number |
MAL261000 |
| Subcategory |
Molded Case Circuit Breaker |
| Breaker Type |
Thermal-magnetic |
| Current Rating |
1000 A |
| Number of Poles |
2 |
| Rated Voltage |
Up to 600 V AC |
| Mounting Type |
Panel mount |
| Application |
Feeder and main circuit protection |
| Operating Mechanism |
Manual toggle |
| Construction |
Molded case |
| Usage Environment |
Industrial and commercial |
| Standards Compliance |
UL / CSA (series dependent) |
| Weight |
32.00 lb |
Information About MAL261000
The MAL261000 is part of Schneider Electric’s molded case circuit breaker lineup, engineered for reliable protection in demanding electrical environments. It features a thermal-magnetic trip mechanism that provides time-delayed overload protection and instantaneous short-circuit response. The breaker is built with a durable molded case housing suitable for panelboard and switchboard installations. Its design supports safe operation in high-current systems where consistent performance and electrical safety are critical.
Key Features:
- Thermal-Magnetic Trip Unit: Provides reliable overload and short-circuit protection.
- High Current Rating: Rated for 1000 A applications in power distribution systems.
- Two-Pole Configuration: Designed for specific high-current circuit arrangements.
- 600 V Voltage Rating: Suitable for low-voltage industrial power systems.
- Molded Case Construction: Ensures durability and long service life.
- Industrial Application Ready: Used in switchboards, panelboards, and distribution equipment.
- Standards-Based Design: Manufactured to meet applicable electrical safety requirements.
The MAL261000 delivers the reliability and precision required for high-capacity circuit protection in industrial and commercial electrical distribution systems.
