Description

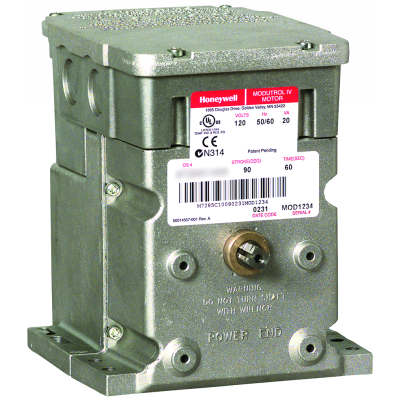

The Honeywell M9484E1033 is a Modutrol IV Series 90 proportional motor designed to control burner firing rate valves, dampers, or auxiliary equipment in flame safeguard systems. It provides non-spring return modulating control with precise positioning over adjustable stroke ranges using a 24 VAC supply.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Burner Controls |
| Part Number |
M9484E1033 |
| Subcategory |
Modulating Motors |
| Motor Type |
Modutrol IV, Series 90 |
| Control Method |
Proportional, 3-wire |
| Power Supply |
24 VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
15 W |
| Torque Rating |
150 lb-in (17 Nm) |
| Breakaway Torque |
300 lb-in (34 Nm) |
| Stroke Range |
Adjustable 90° to 160° |
| Timing |
30 sec @ 90°, 60 sec @ 160° |
| Rotation |
Reversible |
| Input Signal |
135 Ohm |
| Auxiliary Switch |
1 internal |
| Auxiliary Switch Setting |
7 degrees |
| Auxiliary Switch Rating |
120 Vac: 7.2 AFL / 43.2 ALR; 240 Vac: 3.6 AFL / 21.6 ALR |
| Shaft Type |
Double-ended, 3/8 in square |
| Ambient Temperature |
-40°F to +150°F (-40°C to +66°C) |
| Approvals |
UL Listed (File E4436) |
| Dimensions |
6.45 x 5.5 x 7.3 in (164 x 140 x 185 mm) |
| Weight |
6.00 lbs |
Information About M9484E1033
The M9484E1033 is a Honeywell Modutrol IV Series 90 motor engineered for proportional control in commercial and industrial oil or gas burner systems. It operates as a non-spring return motor and is regulated by a three-wire proportional controller, allowing smooth and accurate positioning. The motor features a field-adjustable stroke of either 90 or 160 degrees and includes an internal auxiliary switch for control sequencing or indication. It is electrically driven, vibration resistant, and designed as a direct replacement for legacy Honeywell M941A, M941C, and M941D motors.
Key Features
- Proportional Series 90 Control: Provides smooth, continuous modulation when used with compatible proportional controllers.
- Adjustable Stroke Range: Field-selectable 90° or 160° stroke supports flexible burner and damper configurations.
- High Torque Output: Delivers 150 lb-in running torque with 300 lb-in breakaway torque for demanding applications.
- Non-Spring Return Design: Maintains commanded position during normal operation without spring bias.
- Integrated Auxiliary Switch: Includes one internal switch with precise 7-degree setting for sequencing functions.
- Durable Mechanical Construction: Double-ended square shaft supports direct coupling to valves and dampers.
- Wide Temperature Capability: Operates reliably from -40°F to +150°F in industrial environments.
The M9484E1033 delivers the reliability and precision required for accurate firing rate control in commercial and industrial burner systems.
