Description

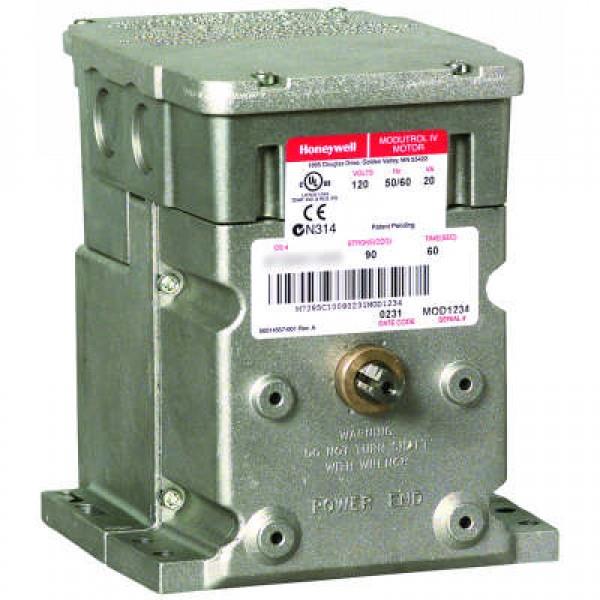

The M9184C1049 is a Honeywell Series 90 Modutrol IV modulating motor designed to provide precise control of dampers and valves in HVAC systems. Operating at 120VAC, this actuator features a 90° stroke with a 30-second timing cycle and delivers robust torque for demanding modulation tasks. Note: This model is discontinued and replaced by M9184C1031, which requires transformer 50017460-003.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
M9184C1049 |
| Subcategory |
Valve Actuator |
| Input Signal |
135 ohms
|
Power Supply
|
120 VAC |
| Frequency |
50/60 Hz |
| Stroke Angle |
90° |
| Timing |
30 sec (90° stroke), 60 sec (160° stroke) |
| Torque |
150 lb-in |
| Auxiliary Switches |
2 |
| Max Ambient Temperature |
150°F (66°C) |
| Max Deadweight Load on Shaft |
200 lbs |
| Max Combined Shaft Load |
300 lbs |
| Replacement Model |
M9184C1031 (requires transformer 50017460-003) |
| Weight |
7.00 lbs |
Information About M9184C1049
The M9184C1049 is a reliable and durable modulating actuator motor from Honeywell’s Modutrol IV Series, used for accurate positioning of dampers and valves. It operates on a 120VAC power supply, accepts a 135-ohm input signal, and features a stroke timing of 30 seconds for 90° rotation. With a torque output of 150 lb-in, two auxiliary switches, and a high deadweight shaft load capacity, this actuator ensures smooth operation in both standard and heavy-duty HVAC applications. Engineered for longevity and adaptability, it handles ambient temperatures up to 150°F and is compatible with a variety of Honeywell control systems.
Key Features:
- Modulating Operation: Provides proportional control for dampers and valves using a 135-ohm signal input.
- Strong Torque Output: Delivers up to 150 lb-in torque to manage high-resistance airflow or valve mechanisms.
- Fast Response Timing: Completes a 90° stroke in 30 seconds, allowing efficient modulation.
- High Load Capacity: Supports up to 200 lbs on the shaft and 300 lbs combined load, ensuring mechanical integrity under stress.
- Dual Auxiliary Switches: Built-in switches for control feedback or additional functions like end-stop notification.
- Durable Construction: Rated for 150°F (66°C) operation, ideal for environments with elevated ambient temperatures.
- Drop-in Compatibility: Originally designed for use with existing Honeywell modulating systems; current replacement model is M9184C1031.
The M9184C1049 delivers accurate modulation and robust mechanical performance, making it a trusted choice for commercial HVAC applications.
