Description

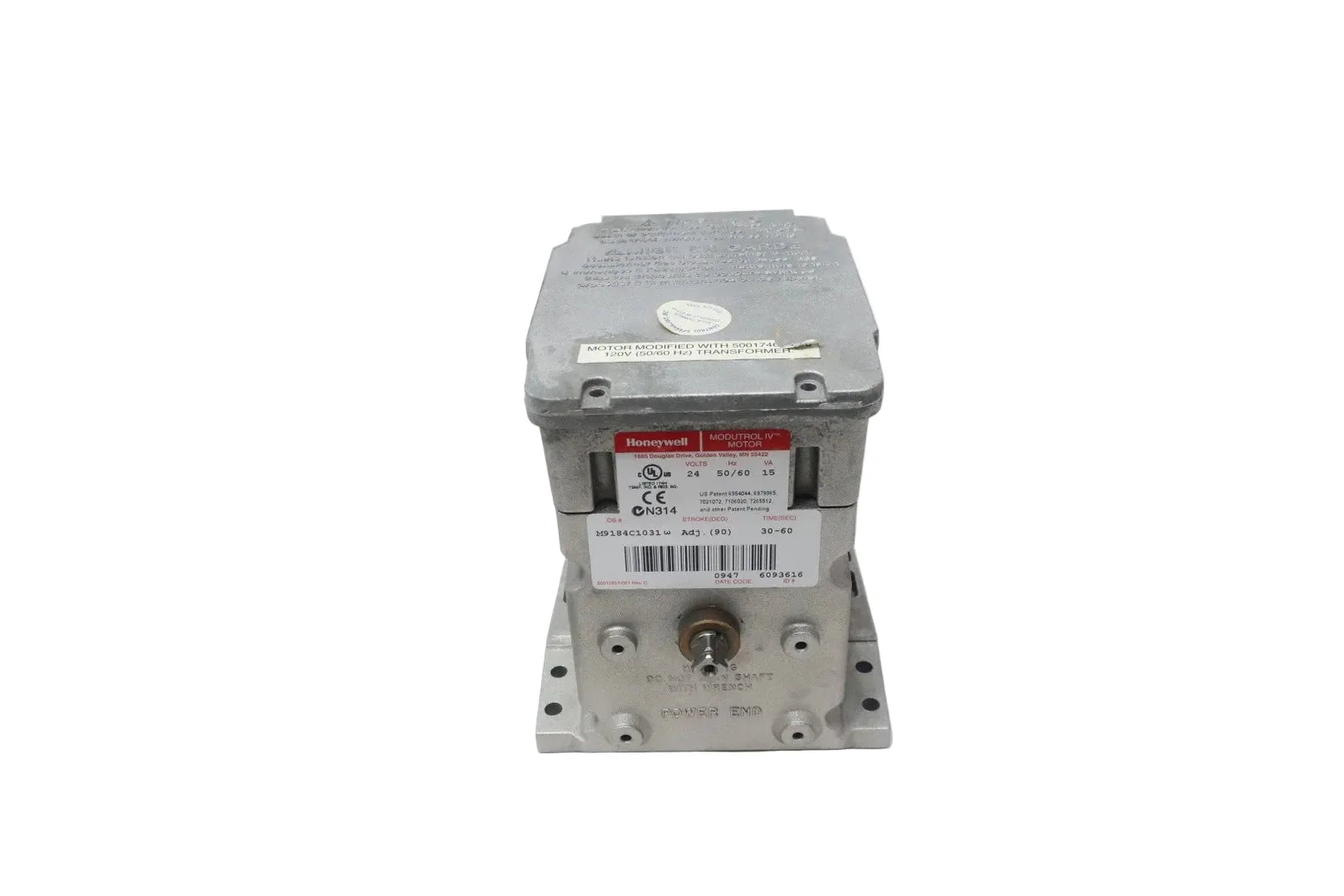

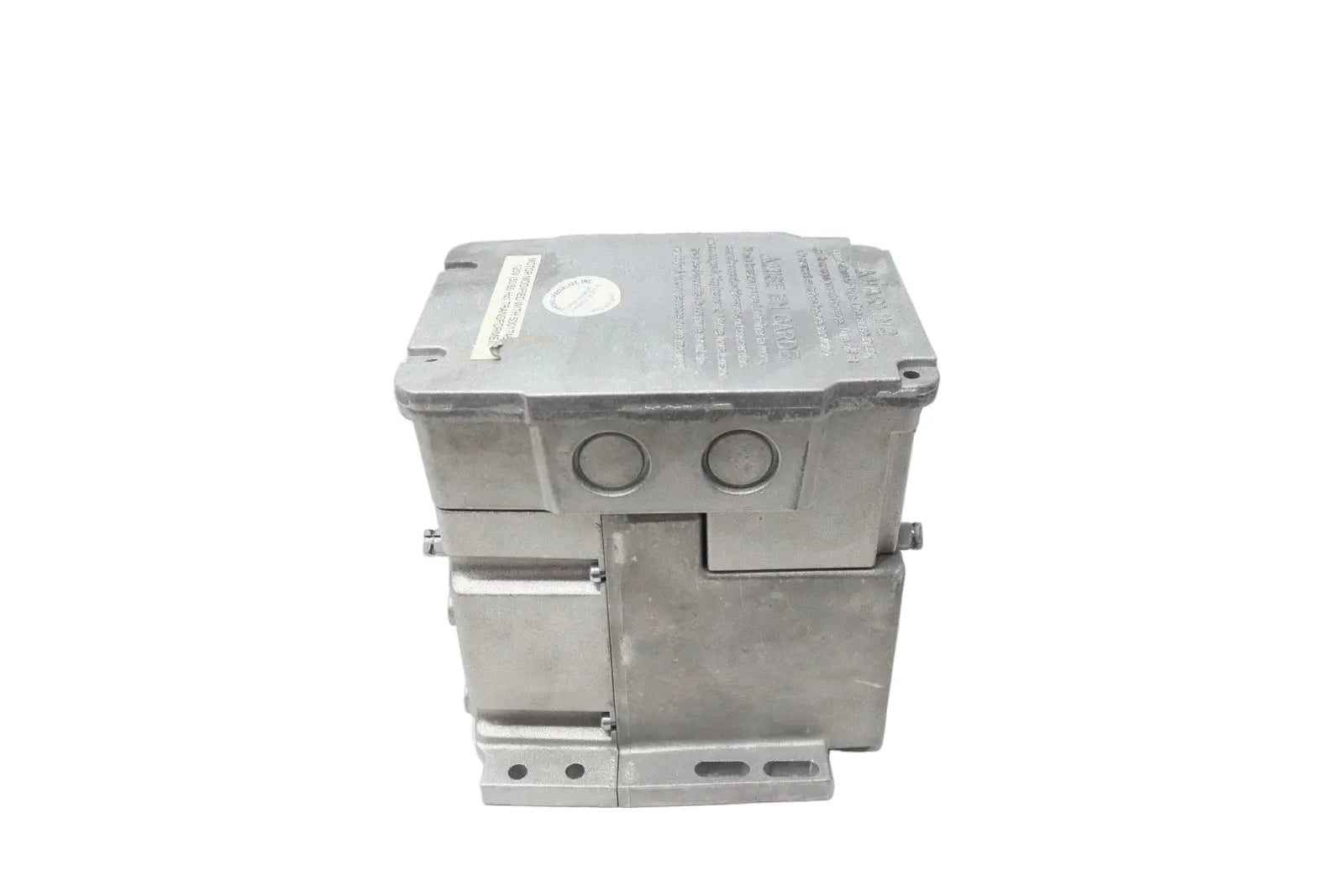

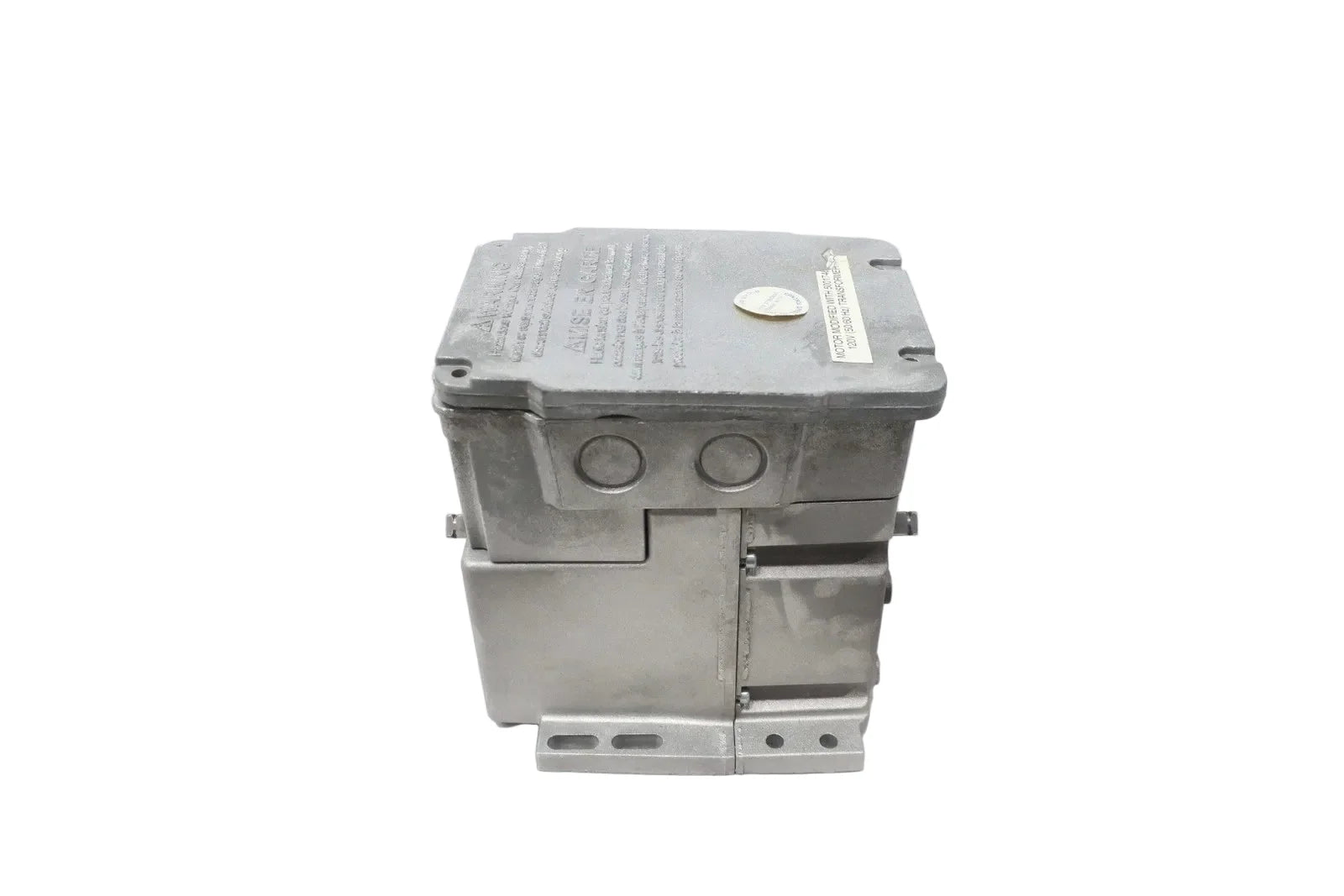

The Honeywell M9184C1031 is a Modutrol IV proportional control motor designed for HVAC and industrial control applications. The Honeywell M9184C1031 provides 150 lb-in torque and operates on a 24 VAC supply to position dampers, valves, or other mechanical devices. It uses a proportional 135-ohm control signal and a non-spring return design for precise actuator positioning.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
HVAC |
| Part Number |
M9184C1031 |
| Subcategory |
Actuator Motor |
| Motor Series |
Modutrol IV |
| Power Supply |
24 VAC |
| Control Signal |
Proportional, 135 ohm |
| Torque Rating |
150 lb-in (17 Nm) |
| Factory Stroke Setting |
90° |
| Adjustable Stroke Range |
90° to 160° |
| Timing |
30–60 seconds nominal |
| Fail-Safe Mode |
Non-spring return |
| Shaft Type |
Dual-ended square shaft |
| Shaft Dimension |
0.375 in (10 mm) |
| Auxiliary Switches |
2 internal switches |
| Electrical Connections |
Quick-connect terminals |
| Power Consumption (Driving) |
15 VA |
| Operating Temperature |
-40°C to +60°C (-40°F to +150°F) |
| Dimensions |
164 mm H × 140 mm W × 185 mm D |
| Weight |
6.5 lb |
Information About M9184C1031

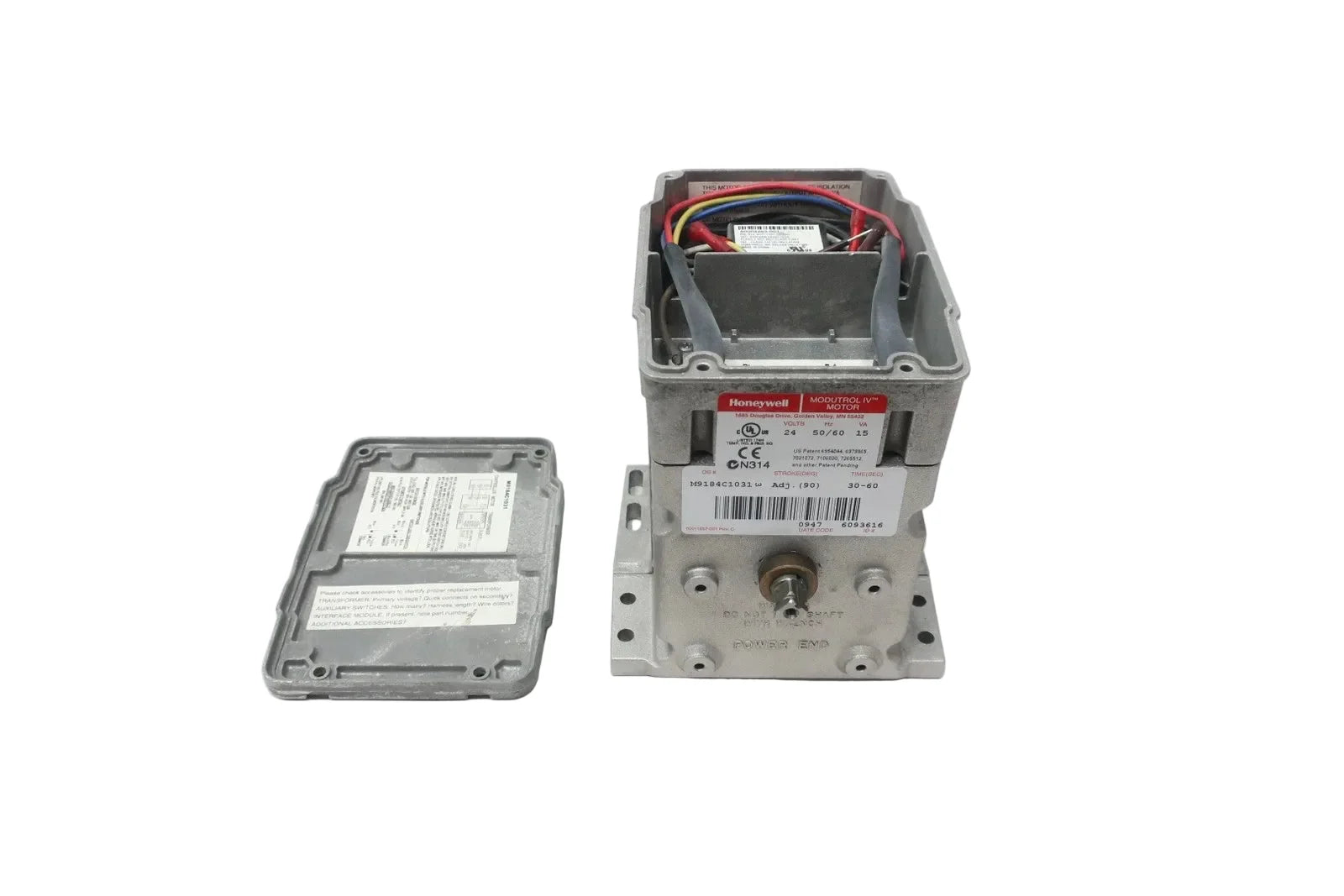

The M9184C1031 is part of the Honeywell Modutrol IV series, widely used in building automation and process control systems. It features a dual-ended shaft design that allows flexible mechanical coupling for dampers or valves and includes an integral junction box providing NEMA 3 weather protection when installed upright. The actuator supports adjustable stroke settings between 90° and 160° and includes two internal auxiliary switches with adjustable cams for additional control logic. Designed for reliable long-term operation, it maintains consistent torque across the full operating voltage range.
Key Features:
- Modutrol IV Proportional Motor: Designed for precision actuator control in HVAC and industrial systems.
- 150 lb-in Torque Output: Provides sufficient force for damper and valve positioning.
- 24 VAC Operation: Standard low-voltage power supply for building automation systems.
- Adjustable Stroke Range: Field adjustable from 90° to 160° with a factory setting of 90°.
- Dual-Ended Shaft: Slotted and tapped shafts on both ends for flexible installation.
- Auxiliary Switch Integration: Includes two internal auxiliary switches with adjustable cams.
- NEMA 3 Junction Box: Weather-protected enclosure when installed upright.
- Quick-Connect Terminals: Simplifies wiring and installation.
The M9184C1031 delivers the reliability and precision required for proportional actuator control in HVAC automation and industrial control systems.
