Description
Description

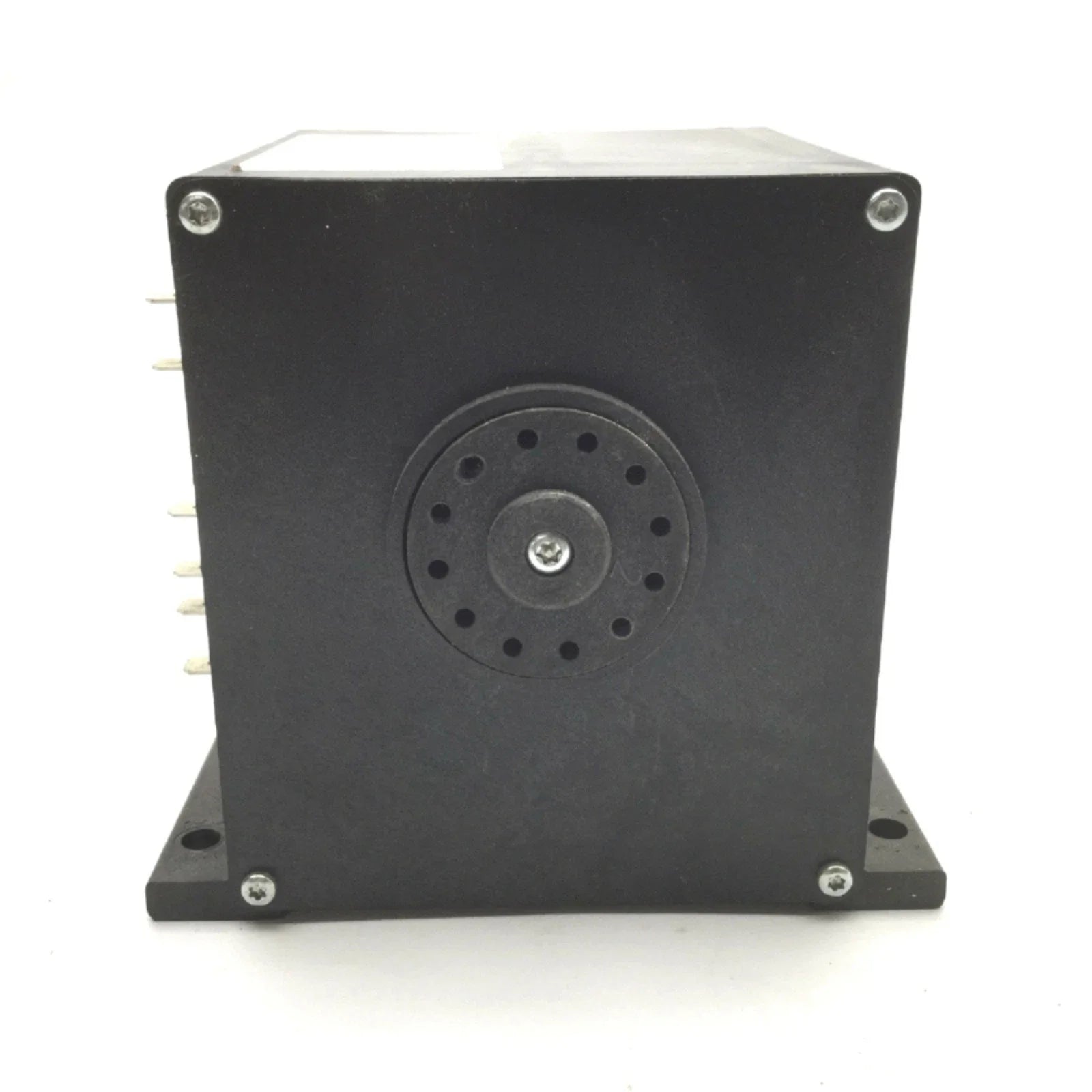

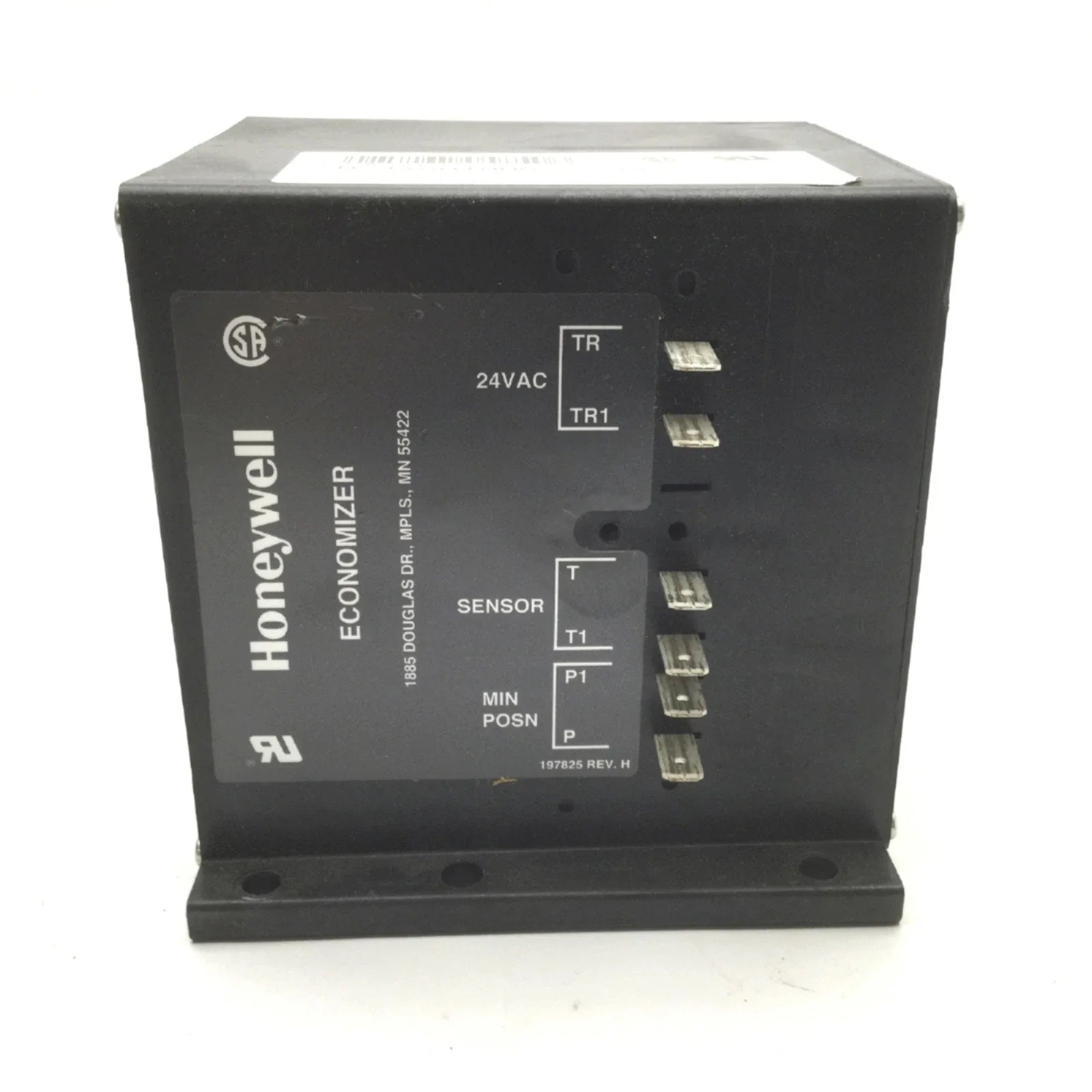

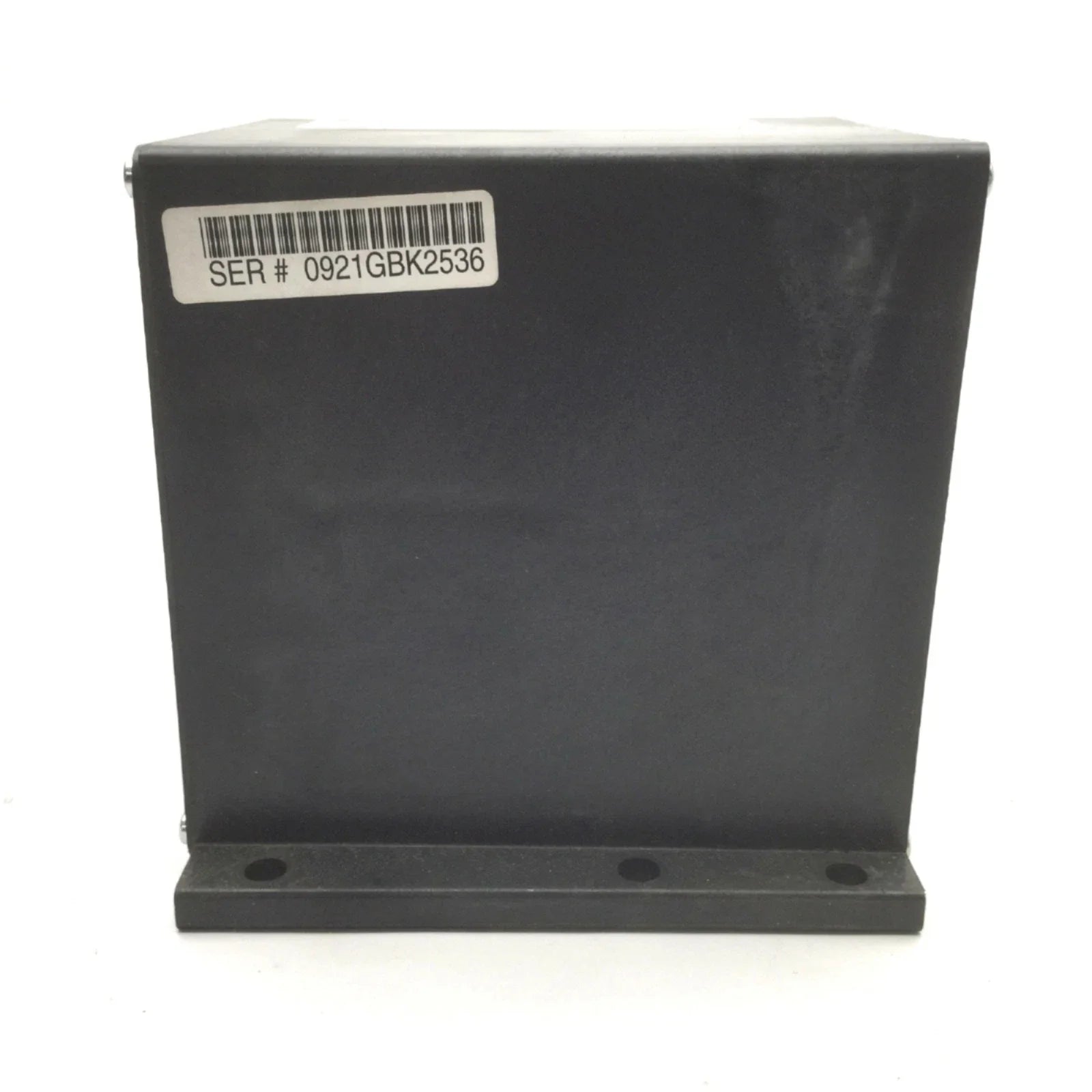

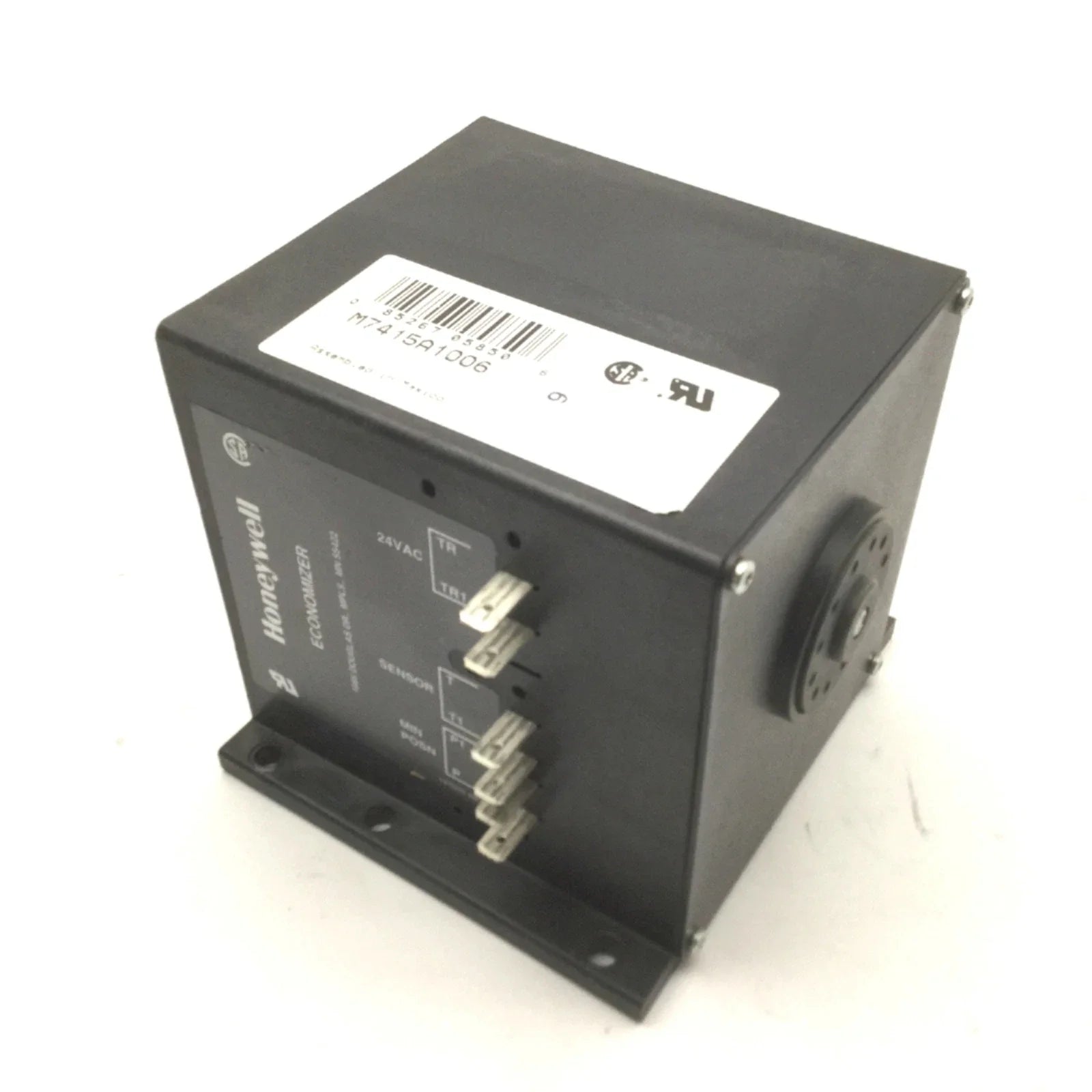

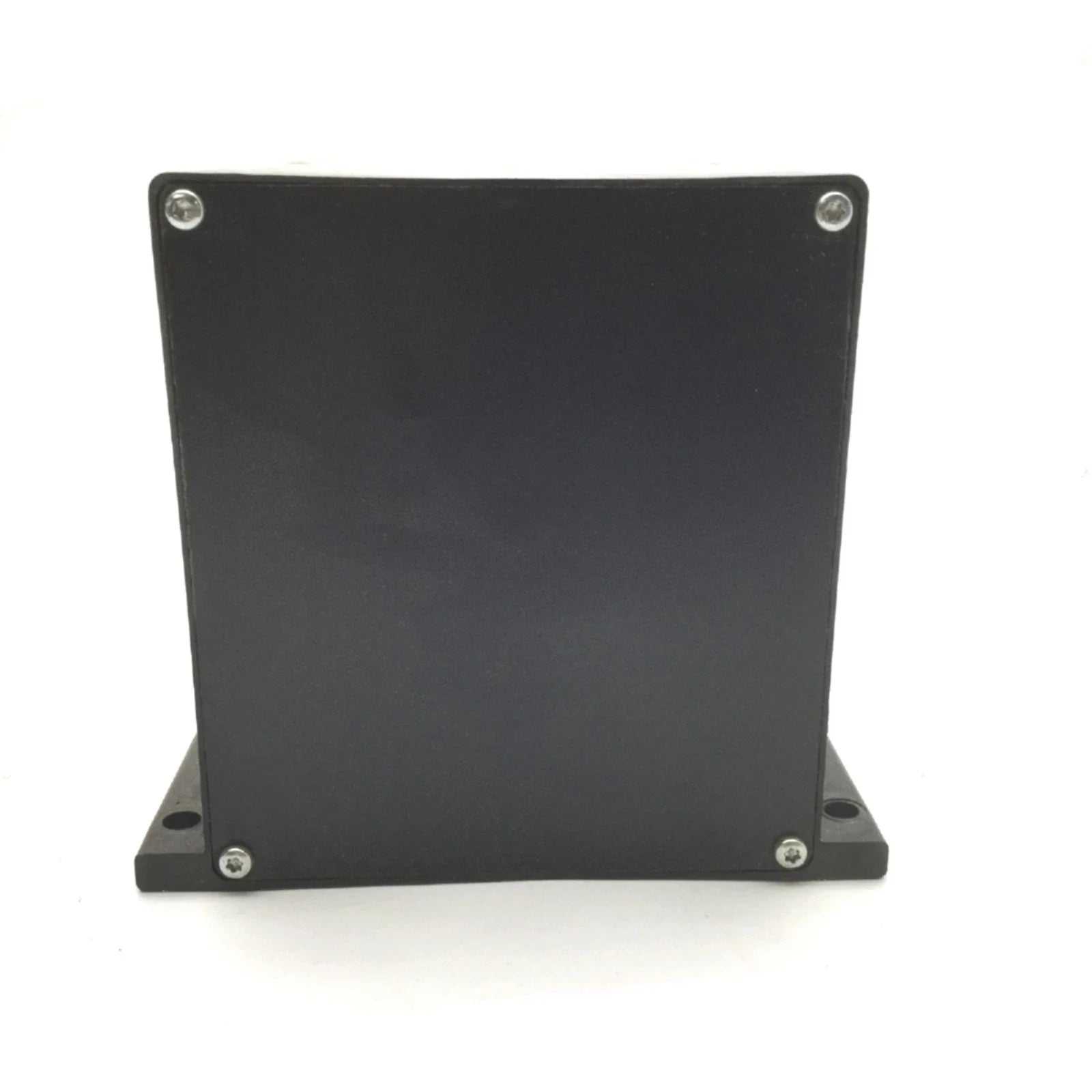

The Honeywell M7415A1006 is a spring return, foot-mounted damper actuator designed for precise modulating control in HVAC economizer, ventilation, and combustion air systems. Operating on 24 VAC, it delivers 25 lb-in torque and reliable fail-safe operation via spring return on power loss. This actuator is engineered for quiet, efficient performance in residential and commercial HVAC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Actuators |
| Part Number | M7415A1006 |
| Subcategory | Damper Actuators |
| Actuator Type | Spring return, modulating |
| Power Supply | 24 VAC |
| Frequency | 50 / 60 Hz |
| Rated Torque | 25 lb-in |
| Breakaway Torque | 40 lb-in |
| Control Signal | Analog / Thermistor |
| Fail Safe Mode | Spring return |
| Rotation to Open | Counterclockwise (CCW) |
| Stroke Angle | 95° ± 3° |
| Drive Time (Modulating) | 90 seconds |
| Mounting Type | Foot mounted |
| Operating Temperature | -25°F to 125°F (-32°C to 52°C) |
| Enclosure Rating | NEMA 2 / IP54 |
| Approvals | UL, cULus, CE |
| Weight | Approx. 2.2 lb |
Information About ![]()
M7415A1006
The M7415A1006 is part of Honeywell’s commercial damper actuator lineup, designed for dependable airflow control in HVAC systems. It features a modulating control design suitable for analog signals and thermistor-based control strategies. The actuator uses a high-efficiency synchronous motor and a spring return mechanism to ensure safe positioning during power interruptions. Its rugged, glass-fiber reinforced plastic enclosure supports long service life in demanding environmental conditions.
Key Features:
- Spring Return Fail-Safe Operation: Automatically returns the damper to its normal position upon power loss.
- 25 lb-in Rated Torque: Provides sufficient force for small to medium HVAC dampers.
- Modulating Control Capability: Supports proportional control for precise airflow regulation.
- 24 VAC Power Supply: Compatible with standard HVAC control power systems.
- Synchronous Motor Design: Ensures quiet operation and high energy efficiency.
- Foot-Mounted Installation: Allows stable and secure mounting in HVAC assemblies.
- Selectable Direct/Reverse Acting: Enables flexible control configuration during installation.
- High Breakaway Torque: Up to 40 lb-in for reliable damper startup.
- Durable Reinforced Housing: Glass-fiber reinforced plastic resists corrosion and mechanical wear.
The M7415A1006 delivers the reliability and precision required for commercial HVAC damper and economizer control applications.
