Description

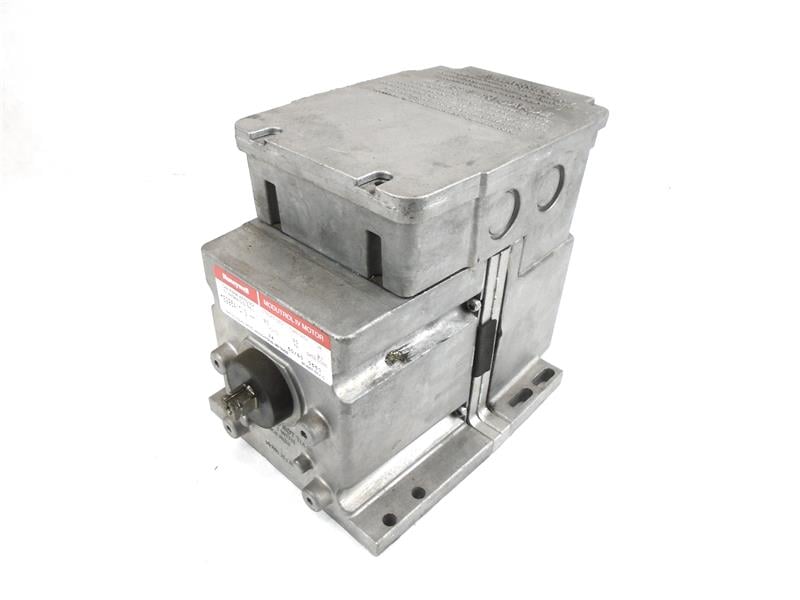

The Honeywell M6285A1013 is a Modutrol IV floating control motor designed for precise positioning of dampers and valves in HVAC systems. Operating at 24 VAC, it delivers 60 lb-in of torque with a 90° stroke completed in 30 seconds, featuring integral feedback for accurate system monitoring and control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
HVAC Actuators |
| Part Number |
M6285A1013 |
| Subcategory |
Modutrol IV Floating Motor |
| Power Supply |
24 VAC |
| Frequency |
50/60 Hz |
| Power Consumption |
21 VA |
| Control Type |
Floating (SPDT) |
| Torque Rating |
60 lb-in (6.8 N·m) |
| Fail-Safe Mode |
Non-Spring Return |
| Stroke Angle |
90° Nominal (Field Adjustable 90°–160° Optional) |
| Timing |
30 Seconds for 90° Stroke |
| Feedback Signal |
Internal Feedback Potentiometer |
| Motor Type |
Reversible Synchronous Motor |
| Rotation Direction |
Reversible via SPDT Control Signal |
| Shaft Type |
Dual-Ended Shaft (Slotted and Tapped on Both Ends) |
| Shaft Dimensions |
0.375 in Square Shaft |
| Mounting Style |
Foot-Mounted |
| Housing Rating |
NEMA 3 Weather Protection (Upright Mount Only) |
| Operating Temperature Range |
-40°F to +150°F (-40°C to +65°C) |
| Compatible Linkages |
Used with Q5001, Q5020, and Q5022 Series Linkages |
| Auxiliary Switch Options |
Field-Addable or Factory Installed |
| Material |
Die-Cast Aluminum Housing |
| Dimensions (H × W × D) |
6-7/16 in × 5-1/2 in × 8-3/4 in |
| Certification |
UL and CSA Certified |
| Weight |
7.51 lbs (3.41 kg) |
Information About M6285A1013
The M6285A1013 belongs to Honeywell’s Modutrol IV series, a family of reliable electric actuator motors for HVAC damper and valve control applications. This model operates with a floating SPDT control signal, providing smooth, incremental positioning of valves and dampers based on input signal changes. The motor delivers a consistent 60 lb-in torque output, suitable for medium-load applications in air handling systems and hydronic control circuits. Its integrated feedback potentiometer allows precise position reporting for closed-loop control systems, enhancing accuracy and system diagnostics. The actuator features a 90° stroke with a 30-second nominal timing, a reversible motor design, and field-adjustable linkages for flexible installation. Built from durable die-cast aluminum and designed for harsh environments, the M6285A1013 combines ruggedness with dependable performance in commercial and industrial HVAC systems.
Key Features:
- Floating Control Operation: Accepts SPDT floating signals for incremental valve and damper positioning.
- High Torque Output: Provides 60 lb-in torque across full stroke for reliable operation under load.
- Integrated Feedback Potentiometer: Enables position feedback for precision control and monitoring.
- 90° Stroke in 30 Seconds: Delivers fast, smooth motion for responsive system control.
- Durable Modutrol IV Design: Heavy-duty construction ensures long operational life in demanding conditions.
- Dual-Ended Shaft: Allows control from either end for flexible installation configurations.
- NEMA 3 Housing: Provides weather-resistant protection when installed upright.
- Reversible Motor Direction: Adjusts direction via SPDT switch for simple wiring and setup.
- Field-Adjustable Options: Stroke and auxiliary switch configurations can be modified as needed.
- Wide Operating Temperature Range: Functions reliably from -40°F to +150°F for year-round use.
The M6285A1013 delivers the reliability and precision required for accurate damper and valve positioning, ensuring efficient HVAC system performance in both commercial and industrial environments.
