Description

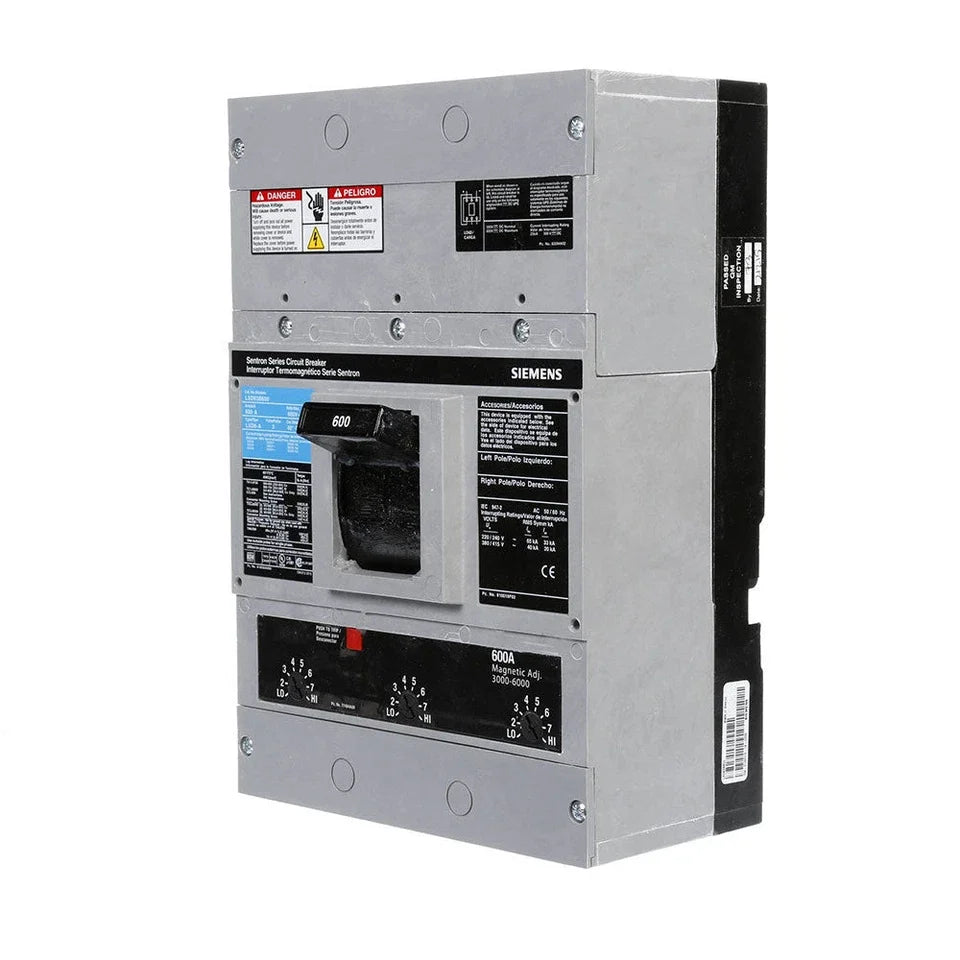

The Siemens LXD63B600L is a high-performance Sentron Series molded case circuit breaker (MCCB) engineered for demanding electrical protection in industrial and commercial applications. Rated for 600 Amps, this 3-pole breaker operates at 600 Volts AC and features a thermal-magnetic trip unit for long-time and instantaneous overcurrent protection.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Siemens
|
| Category |
|
| Part Number |
LXD63B600L
|
| Subcatecory |
Molded Case Circuit Breakers (MCCB)
|
| Family |
Sentron Series |
| Type |
LXD |
| Voltage Rating |
600V AC |
Amperage Rating
|
600A |
| Interrupting Capacity |
35kA at 480V, 25kA at 600V |
| Phase / Poles |
3 Phase / 3 Poles
|
| Frame Type |
LD Frame
|
| Trip Type |
Thermal-Magnetic, LI Protection
|
| Connection Type |
Feed-Thru
|
| Dimensions (W x H x D) |
7.5 x 11 x 4 in
|
Information About LXD63B600L
The LXD63B600L is part of the LD Frame family, equipped with standard breaking capacity and a non-interchangeable trip unit, ensuring precise and consistent performance in high-current environments. Designed to comply with UL 489 and IEC 60947-2 safety standards, this breaker provides enhanced system protection with interrupting capacities of 25kA at 600V and 35kA at 480V.
Key Features:
-
High Interrupting Capacity: 35 kA at 480V, 25 kA at 600V for superior fault protection.
-
Thermal-Magnetic Trip Unit: Provides long-time and instantaneous overcurrent protection.
-
Durable LD Frame Design: Rugged construction for industrial applications with standard 40°C calibration.
-
Compliant and Safe: Meets UL 489 and IEC 60947-2 standards.
-
Versatile Wiring Options: Includes TA2J6500 lugs for a wide copper/aluminum wire range.
The LXD63B600L is engineered to deliver reliable protection and performance across a range of industrial circuit protection applications.
