Overview

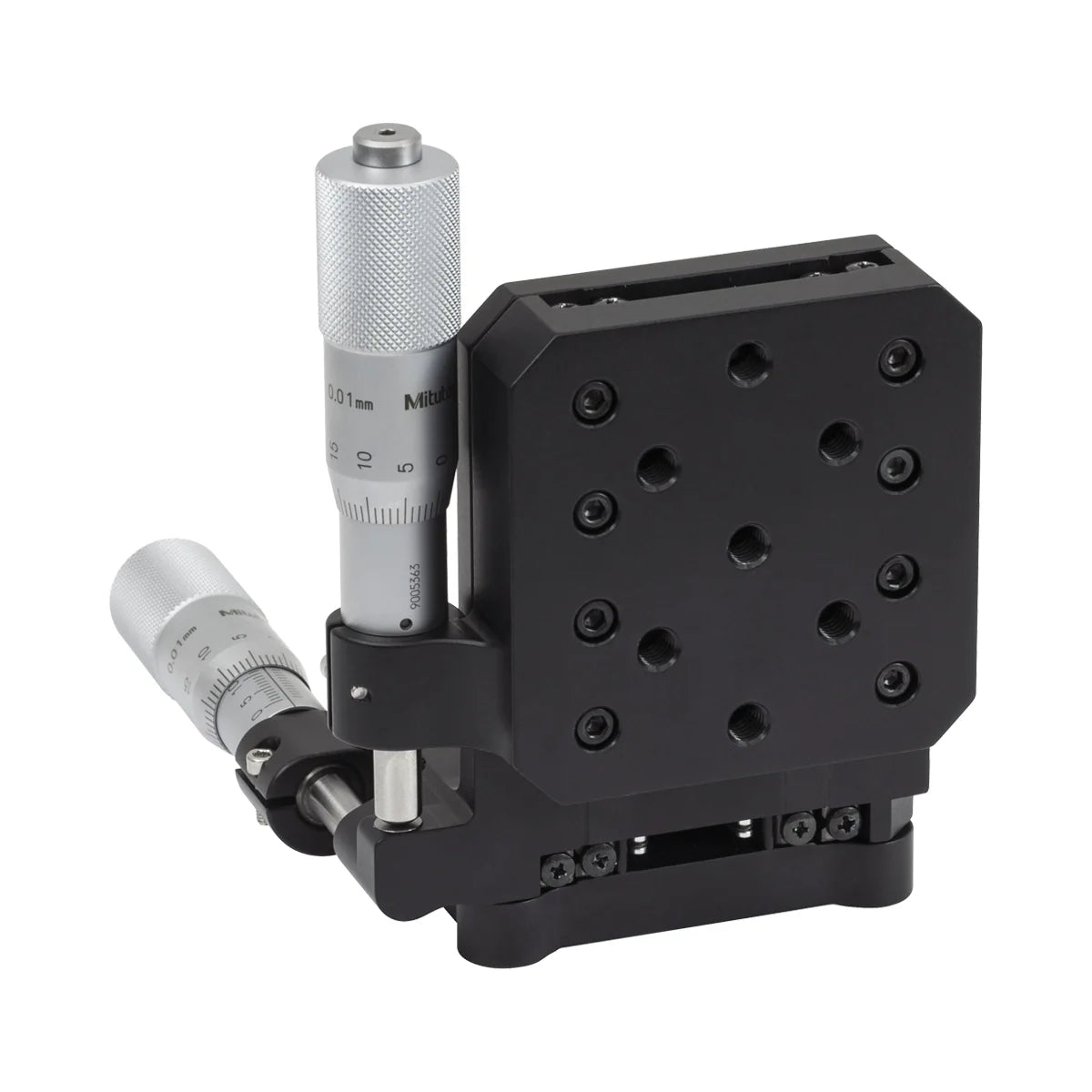

The LX20YZ is a self-contained, dual-axis translation stage designed for precise positioning in the Y and Z directions. This unit features 25 mm of travel for each axis and is equipped with 1/4"-20 taps on the mounting surface to facilitate the integration of optical components or additional hardware.
Key Features
-
25 mm Travel Range: Provides 25 mm of linear movement in both the Y and Z axes, allowing for controlled positioning of mounted optics.
-
Crossed-Roller Bearings: Utilizes crossed-roller bearing construction to support movement, which ensures smooth, linear travel across the full range.
-
Integrated YZ Configuration: Features a self-contained design that integrates two axes of motion into a single assembly, reducing the need for stacking multiple individual stages.
-
1/4"-20 Mounting Taps: Includes a matrix of 1/4"-20 threaded holes on the top platform, allowing for secure and compatible attachment of standard optomechanical components.
-
Compact Footprint: Engineered as a compact assembly, which assists in fitting the stage into constrained optical setups.
Technical Specifications
| Product SKU |
LX20YZ |
| Travel Range (Y-Axis) |
25 mm |
| Travel Range (Z-Axis) |
25 mm |
| Bearing Type |
Crossed-Roller Bearings |
| Mounting Taps |
1/4"-20 |
| Package Weight |
3.04 lbs |
| Warranty |
Lifetime |
