Overview

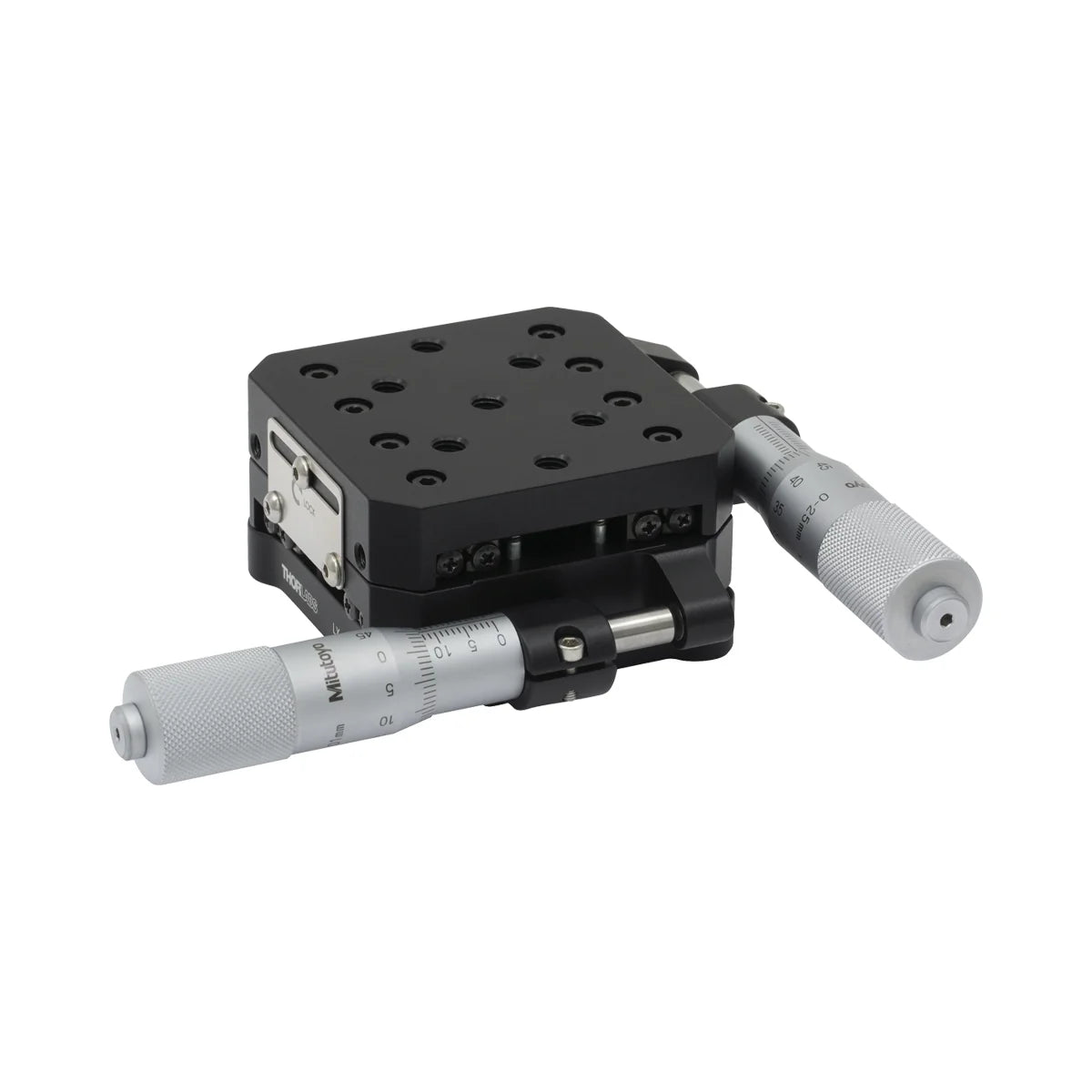

The LX20 is a self-contained, two-axis translation stage designed to provide 25 mm of travel in both the X and Y directions. This unit features a compact footprint and utilizes crossed-roller bearings to facilitate precise linear motion. The top surface of the stage is equipped with a grid of 1/4"-20 tapped holes, allowing for the secure attachment of optomechanical components or experimental setups.
Key Features
-
25 mm XY Travel Range: Provides 25 mm of independent translation capability in two orthogonal axes within a single, integrated assembly.
-
Crossed-Roller Bearing Construction: Incorporates high-precision crossed-roller bearings to support smooth, stable linear translation.
-
Integrated 1/4"-20 Tapped Holes: Features a standardized hole pattern on the top carriage, enabling direct mounting of optical hardware without requiring additional adapter plates.
-
Compact Self-Contained Design: Designed as a unified XY stage to minimize the physical footprint and simplify alignment within complex optical systems.
Technical Specifications
| Product SKU |
LX20 |
| Travel Range (X and Y) |
25 mm |
| Bearing Type |
Crossed-Roller Bearings |
| Mounting Taps |
1/4"-20 |
| Package Weight |
2.21 lbs |
| Product Category |
Manual XY Translation Stage |
