Description

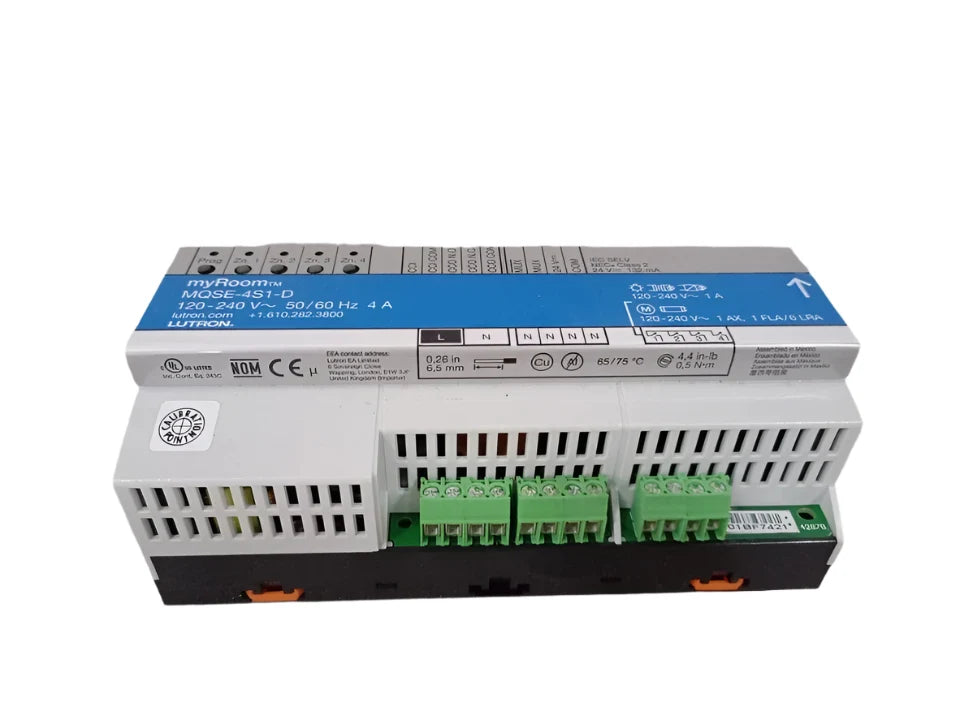

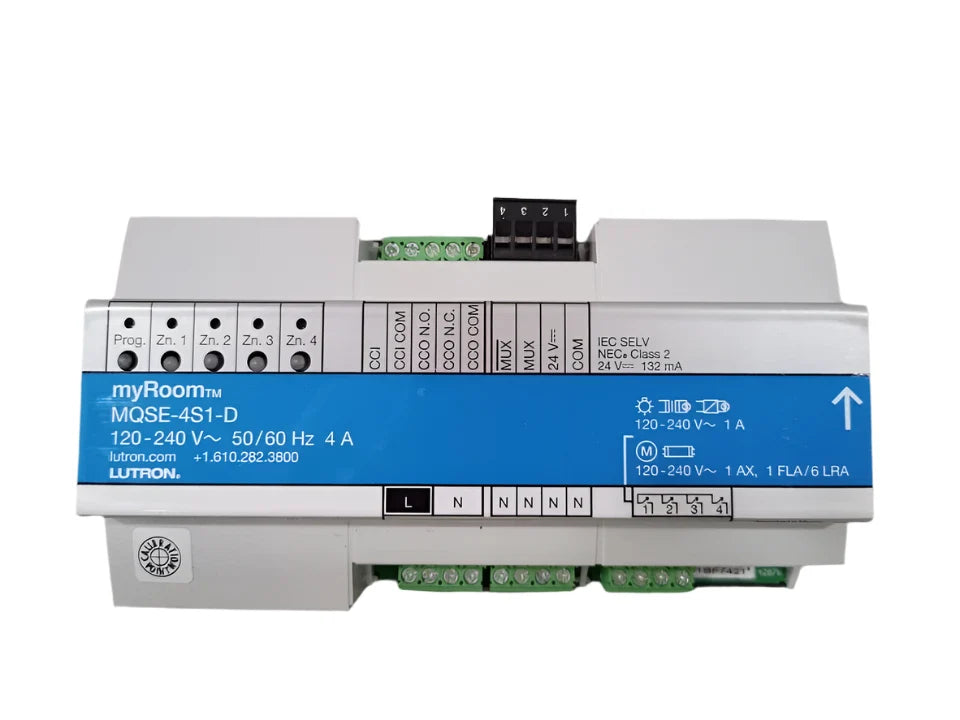

The Lutron MQSE-4S1-D is a 4-output switching power module designed for integration into HomeWorks QS lighting control systems. Operating at 120–240 V and 56–60 Hz, it delivers up to 4 A total switching capacity across its outputs. Ideal for load control of lighting circuits, the unit provides robust switching performance for centralized panel-based installations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
Lighting Control |
| Part Number |
MQSE-4S1-D |
| Subcategory |
Relay Modules |
| Series |
HomeWorks QS |
| Voltage Range |
120–240 V AC |
| Frequency |
56–60 Hz |
| Total Output Capacity |
4 A (aggregate across 4 switched outputs) |
| Outputs |
4 switching circuits (non-dimmable) |
| Control Type |
Relay-based switching |
| System Compatibility |
HomeWorks QS |
| Mounting Type |
Panel-mount (within Lutron enclosure) |
| Use Case |
LED drivers, ballasts, general lighting |
| Enclosure Type |
Centralized control panel module |
| Certifications |
UL Listed, CE Compliant |
| Environment |
Indoor use only |
| Cooling |
Passive ventilation |
| Weight |
~3.5 lb |
Information About MQSE-4S1-D
The MQSE-4S1-D is part of Lutron’s HomeWorks QS series of panel-based control modules. This model features four switching outputs, each capable of handling standard line-voltage lighting loads such as fluorescent ballasts, LED drivers, or non-dimmable circuits. It is designed for mounting within Lutron power panels and supports both 120 V and 240 V systems, offering voltage flexibility for global applications. As a switching (non-dimming) module, it’s well suited for on/off control scenarios in high-performance residential or commercial environments.
Key Features:
- 4-Output Switching: Provides four individually switched circuits.
- Universal Voltage Support: Operates at 120–240 V, 56–60 Hz.
- Total Output Capacity: Supports up to 4 A total across all outputs.
- Non-Dimming Operation: Designed for switching loads only (no dimming).
- QS System Integration: Compatible with Lutron HomeWorks QS centralized panels.
- Panel-Mount Ready: Installs directly into Lutron enclosure systems.
- Ideal for Mixed Loads: Suitable for LED drivers, ballasts, and general lighting.
- Safe & Compliant: Built to meet UL and CE standards.
The MQSE-4S1-D delivers reliable on/off switching for multi-load applications in high-end lighting control systems.
