Description

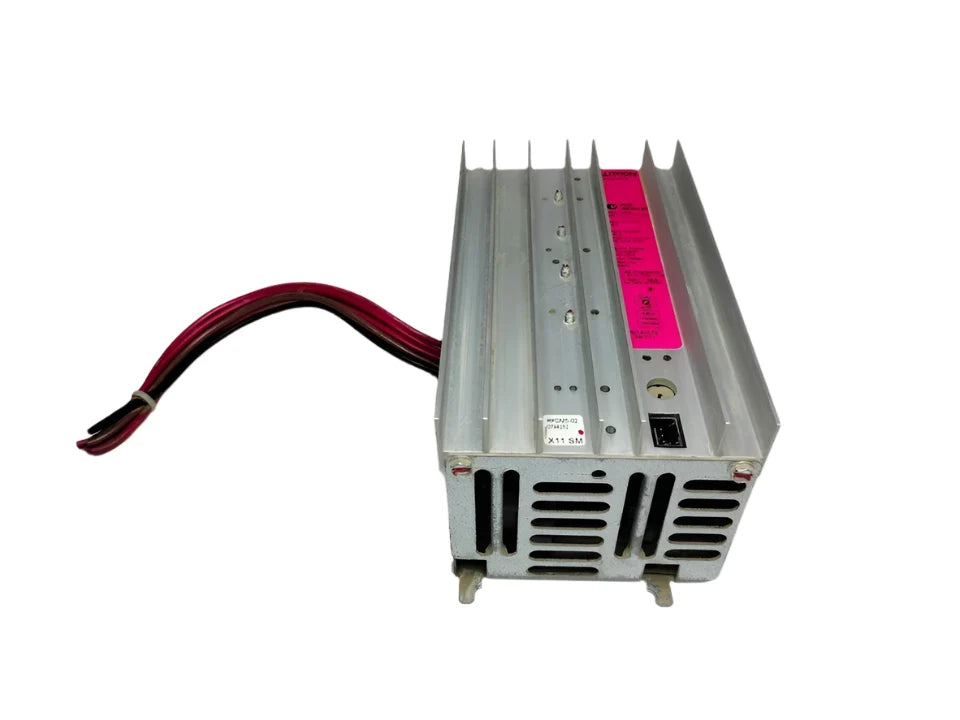

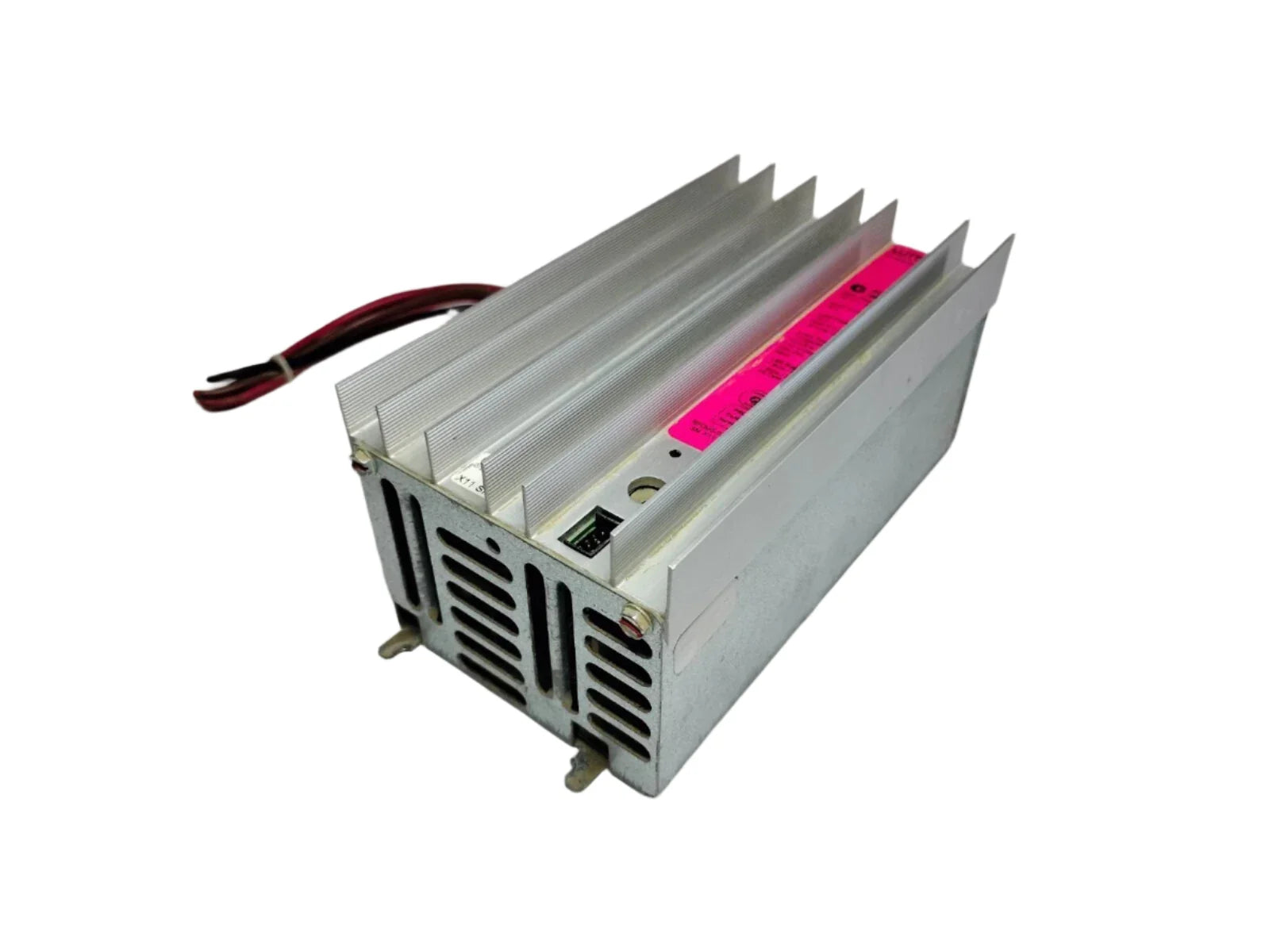

The Lutron LP-RPM-4U-240 is a DIN-rail mounted universal power module designed to control multiple lighting loads in HomeWorks and Quantum systems. It supports up to four independently controlled zones for switched or non-dimmed loads, with a total output capacity of 16 A. This module is ideal for centralized lighting applications in residential and commercial installations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
Lighting Control |
| Part Number |
LP-RPM-4U-240 |
| Subcategory |
Relay Modules |
| Voltage |
220–240 V~ |
| Current Capacity |
16 A total (4 A max per output) |
| Outputs |
4 switched circuits (non-dimmed) |
| Mounting Type |
DIN-rail |
| System Compatibility |
Lutron HomeWorks, Lutron Quantum |
| Relay Type |
Mechanical relay (normally open contacts) |
| Load Types Supported |
Fluorescent ballasts, LED drivers, motors, resistive loads |
| Feedback Indicators |
LED indicators per zone |
| Operating Frequency |
50/60 Hz |
| Enclosure Type |
For use in centralized panels |
| Cooling |
Passive air-cooled |
| Dimensions |
Approx. 6.5" H x 4.5" W x 2.25" D (varies by panel config) |
| Certifications |
CE, UL recognized |
| Weight |
~1.2 lb |
Information About LP-RPM-4U-240
The LP-RPM-4U-240 is a 240 V universal module from Lutron’s LP-RPM series, engineered for use within centralized lighting control panels. Built for integration with Lutron HomeWorks and Quantum systems, it controls up to four zones of non-dimmed lighting. The device features individually controlled relays and is DIN-rail mountable for seamless panel integration. It’s designed to switch line-voltage loads including fluorescent ballasts, LED drivers, and motor loads.
Key Features:
- Multi-Zone Control: Supports four independent switched lighting circuits.
- High Voltage Compatibility: Operates on 220–240 V line voltage systems.
- DIN-Rail Mountable: Designed for centralized cabinet mounting.
- Relay-Based Switching: Suitable for non-dimmed loads such as fluorescent or LED drivers.
- HomeWorks & Quantum Integration: Seamless compatibility with Lutron’s advanced lighting ecosystems.
- High Load Capacity: Rated for up to 16 A total across four circuits.
- Low Standby Power: Energy-efficient operation with minimal idle consumption.
- Status Feedback: Provides local status LEDs for each output.
The LP-RPM-4U-240 delivers the reliability and control required for centralized lighting installations across residential and commercial environments.
