Description

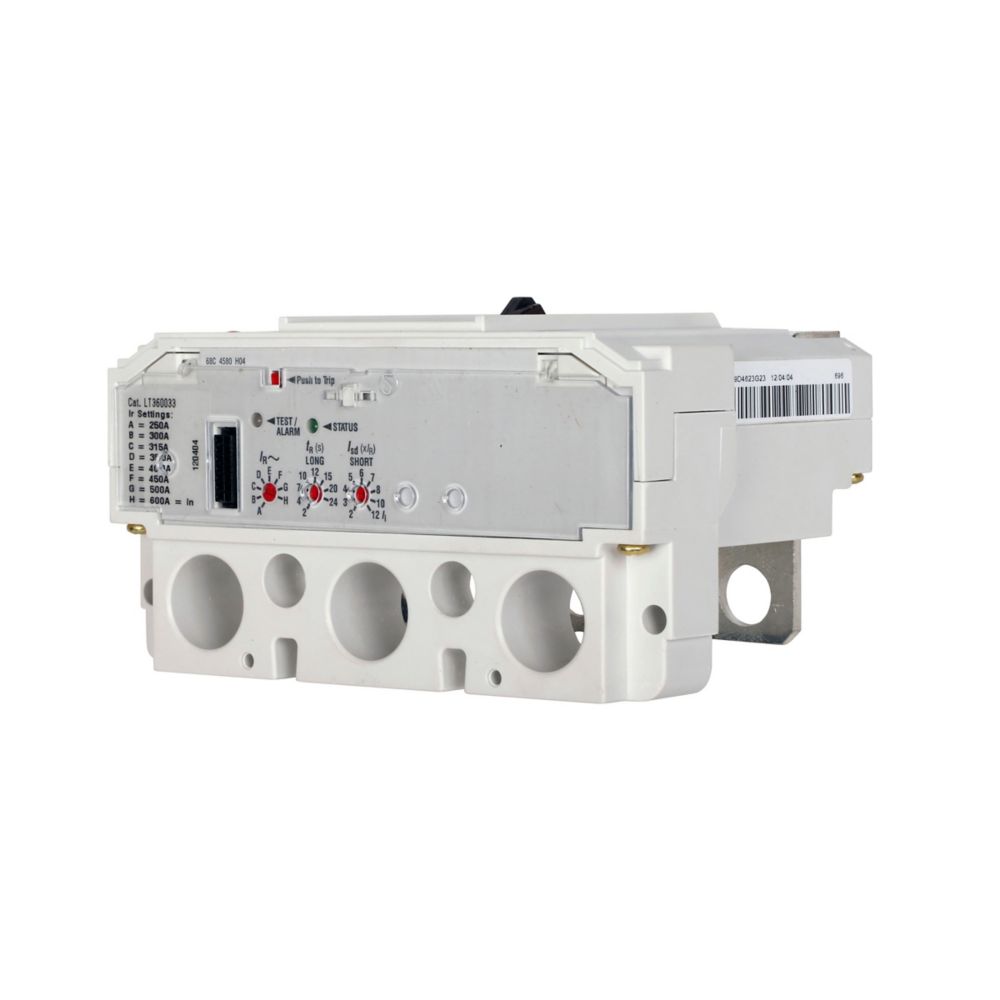

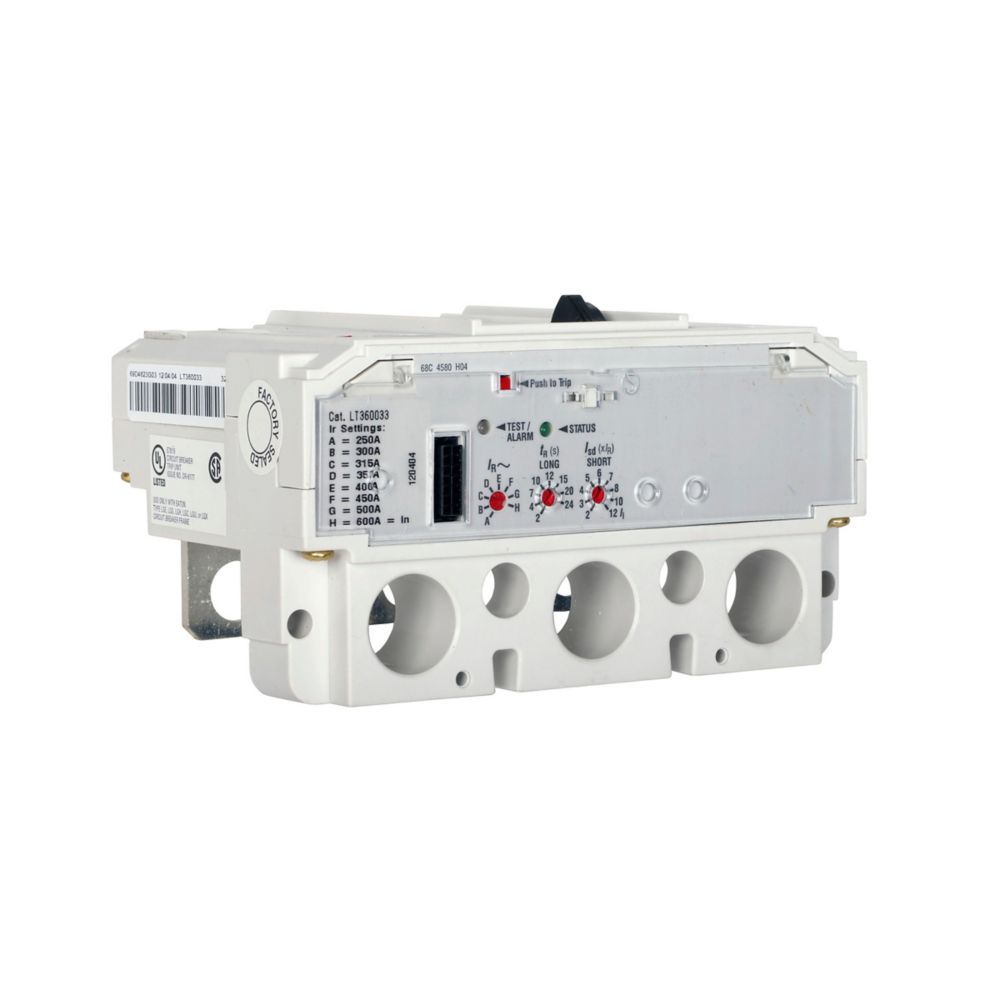

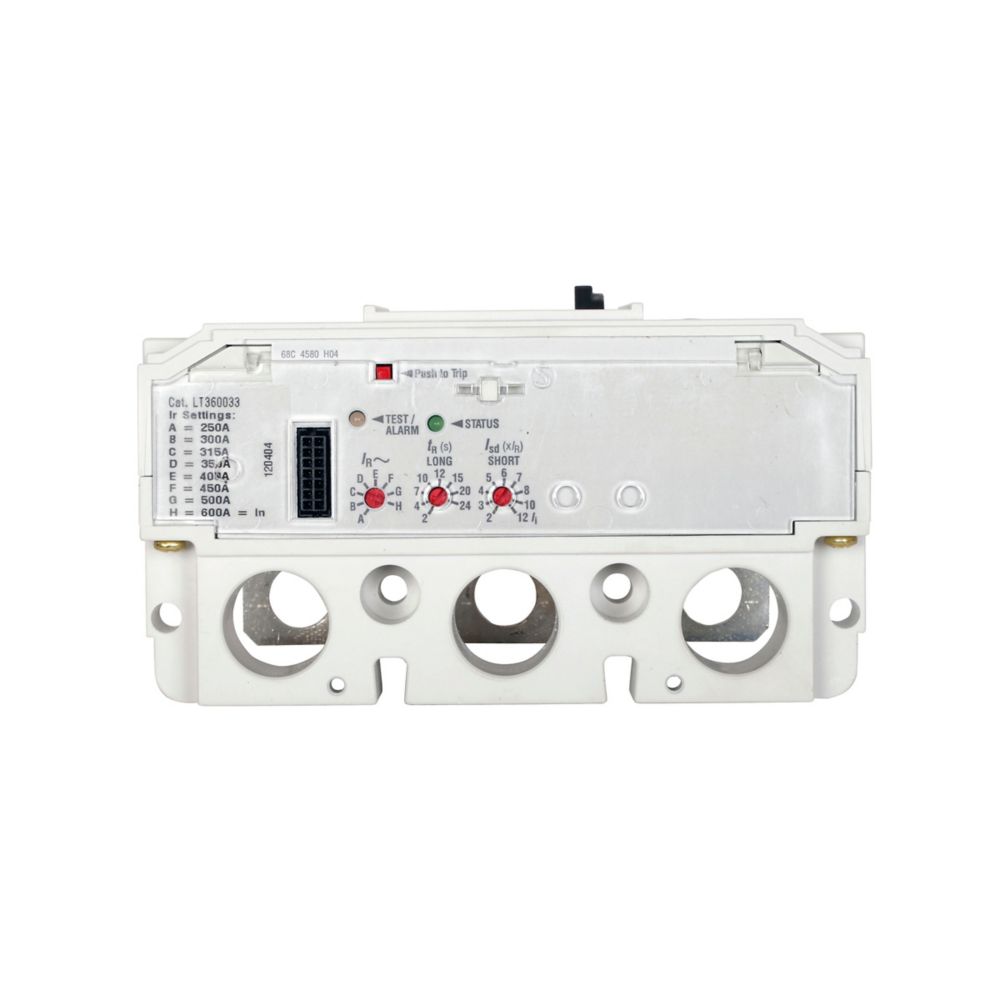

The Eaton LT360033 is a molded case circuit breaker trip unit designed to provide reliable overcurrent protection control within Eaton Series C breaker systems. This Eaton part number LT360033 supports applications rated up to 600 amps and is engineered for integration with compatible J-K frame molded case circuit breakers. It delivers accurate trip functionality to help protect electrical distribution equipment from overload and fault conditions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Breaker |
| Part Number |
LT360033 |
| Subcategory |
Circuit Breaker Trip |
| Product Type |
Molded Case Circuit Breaker Trip Unit |
| Series |
Series C |
| Circuit Breaker Type |
LT |
| Frame Compatibility |
Frame J-K |
| Number of Poles |
Three-pole |
| Trip Type |
T38 |
| Amperage Rating |
600 A |
| Application |
Overcurrent trip control for molded case circuit breakers |
| HACR Rating |
HACR Rated |
| Certifications |
Refer to manufacturer |
| Dimensions (L × W × H) |
8.5 × 4.63 × 4.38 in |
| Weight |
2.66 lb |
Information About LT360033
The LT360033 is a circuit breaker accessory trip unit manufactured by Eaton for use with Series C molded case circuit breakers. It is designed to control the tripping mechanism of compatible breakers and provide dependable protection against electrical overloads and short circuits. The unit is intended for J-K frame breakers and supports three-pole configurations commonly used in industrial and commercial three-phase power systems. With a T38 trip type and robust internal design, it helps ensure stable protection performance within switchboards, panelboards, and distribution assemblies.
Key Features:
- 600 Amp Trip Rating: Designed for breaker systems protecting circuits up to 600 amps.
- Series C Compatibility: Built for Eaton Series C molded case circuit breaker platforms.
- J-K Frame Integration: Compatible with breakers using J-K frame sizes.
- T38 Trip Unit Design: Provides dependable control of breaker tripping under overload and fault conditions.
- Three-Pole System Support: Suitable for three-phase electrical distribution systems.
- Replacement or Upgrade Component: Can be installed as an accessory to maintain or restore breaker protection functionality.
- Industrial-Grade Construction: Designed for reliable operation in demanding electrical environments.
- HACR Application Compatibility: Suitable for HVAC and refrigeration equipment rated under HACR guidelines.
The LT360033 delivers the reliability and precision required for accurate overcurrent protection control within industrial circuit breaker systems.
