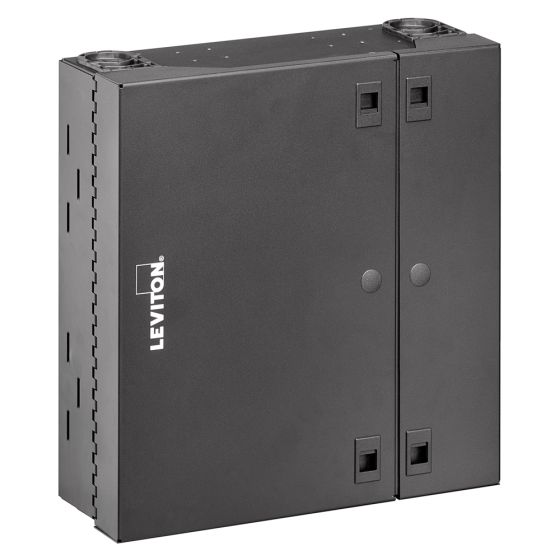

Large SDX Wall Mount Enclosure — Holds (12) SDX Adapter Plates, Black

The Large SDX wall-mount enclosure provides a compact, high-density solution for interconnect or cross-connect applications in equipment rooms, entrance facilities, and telecom spaces. Designed to maximize fiber capacity while minimizing wall usage, the enclosure supports up to twelve SDX adapter plates, SDX MTP cassettes, or splice modules, enabling patching for up to 288 LC fibers. Its dual-door layout with slam latches allows fast technician access, while internal space supports up to twenty-four splice trays for flexible fiber management. Constructed from 16-gauge steel with a black powder-coat finish, the enclosure delivers durability, clean cable routing, and easy compatibility with pre-terminated solutions.

Download product spec sheet (PDF)

Key Features

• Supports (12) SDX adapter plates, SDX MTP cassettes, or splice modules

• Patching capacity up to 288 LC fibers

• Stores up to 12/24 splice trays

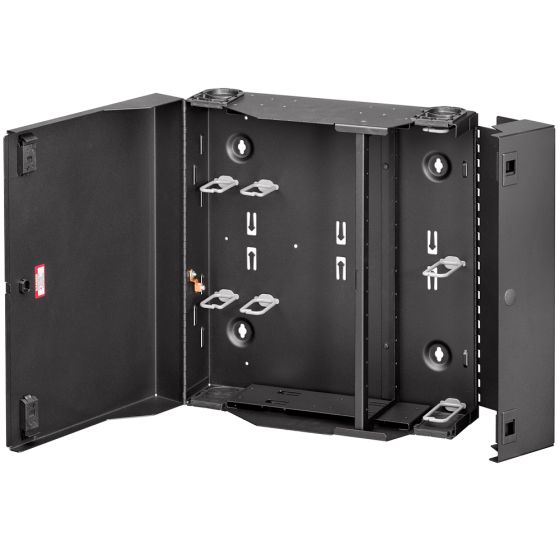

• Dual doors with slam latches for quick access

• Low-profile design conserves wall space

• Removable entry/exit grommets for pre-terminated trunks and dust reduction

• Ground lug included for armored cable strain relief and grounding

• Optional strain-relief kit for incoming fiber protection

• Optional key/lock kits for service-side and customer-side door security

• Optional HDX-to-SDX conversion bracket available

• 16-gauge steel with black powder-coat finish

Specifications

• Capacity: (12) SDX adapter plates / cassettes / splice modules

• Fiber Capacity: Up to 288 LC

• Splice Tray Capacity: 12 or 24 trays

• Material: 16-gauge steel

• Finish: Black powder-coat

• Access: Dual slam-latch doors

• Dimensions: 17.22" L × 16.50" W × 6.18" H

Applications

• Equipment rooms

• Entrance facilities

• Telecommunications rooms

• Controlled indoor environments for fiber interconnect or cross-connect
