Chassis:

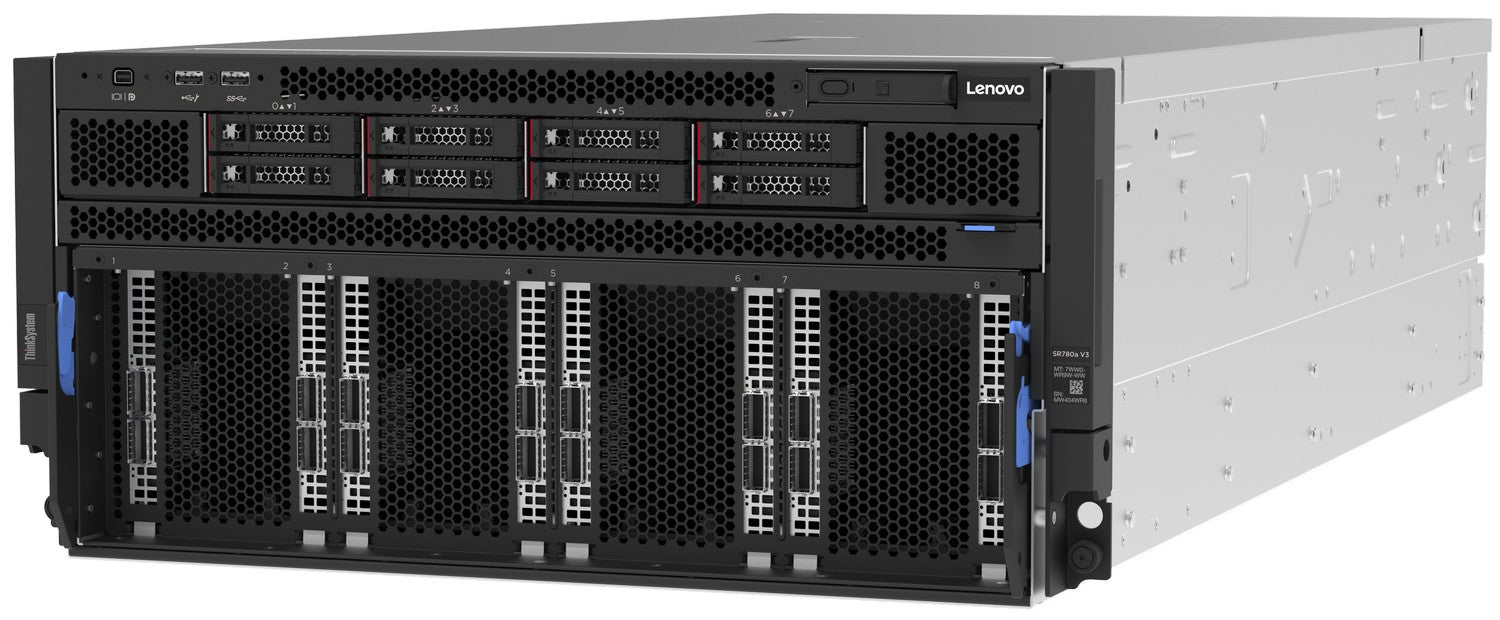

• 5U Rackmount
• 12x 2.5" NVMe PCIe 5.0
• 2x M.2 NVMe PCIe Gen5 (22110, 2280) x4

Processor types:

• Dual Socket Intel Xeon 5th Gen Scalable

Memory RAM types:

• ECC Registered Memory, up to Max 4TB DDR5
• RAM Capacity: 8GB, 16GB, 32GB, 48GB, 64GB, 96GB, 128GB
• Max Configuration: 4TB (32x128GB)
• Memory Speeds: 5600MT/s 1 DIMM per channel, 4400MT/s 2 DIMMs per channel

Storage Options

• NVMe U.2/U.3 PCIe Gen5.0 : 15.36TB @ 32GT/s
• NVMe M.2 22110 or 2280: 3.84TB

GPU Options:

• 8x NVDIA H100 SXM5 80GB HBM3
• 8x NVDIA H200 SXM5 141GB HBM3
• 8x NVDIA HGX B200 SXM6 180GB HBM3

Power Supplies:

• 8x 2600W Redundant (4+4) Titanium PSU

Systems Management Solutions

• XClarity Controller 2 (XCC2) embedded management
  based on the ASPEED AST2600 baseboard management controller (BMC)
• Dedicated rear Ethernet port for XCC2 remote access for management

Security:

• Hardware: Trusted Platform Module (TPM) 2.0

Network Interface Card Options (NICs)

• Mellanox ConnectX-6 Lx 2-port 10/25GbE
• NVIDIA 400Gb/s adapter with direct GPU support

Expansion Slots:

• 3x FHHL PCIe Gen5 x16 slots PCIe Switch bound
