Description

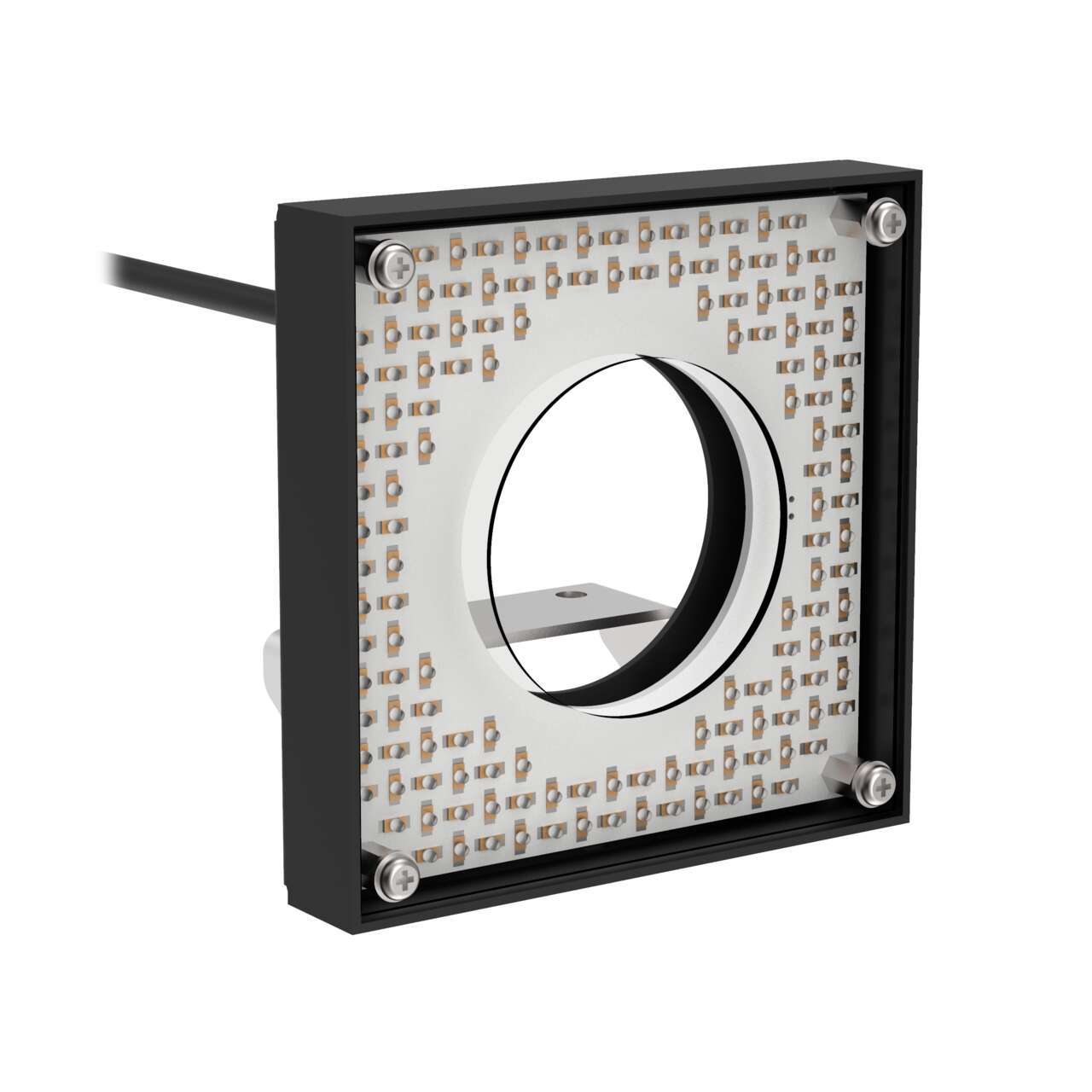

The Banner Engineering LEDRR80X80W is a square ring light designed for machine vision illumination in PresencePLUS® inspection systems. It uses visible red LEDs powered by 24 VDC to provide uniform lighting for image acquisition. The unit includes a 2 m cable with flying leads for direct connection to compatible sensors or external power supplies.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Banner Engineering
Category	Camera & Vision
Part Number	LEDRR80X80W
Subcategory	Light Source
Series	LED
Device Type	Ring Light
Light Color	Red
LED Technology	Standard LED
Supply Voltage	24 VDC
Maximum Current	250 mA
Housing Material	Low-Carbon Steel
Window Material	Acrylic
Mounting Method	Direct Mount to PresencePLUS® Sensor
Connection Type	2 m Cable with Flying Leads
Number of Conductors	3
Physical Dimensions	87.3 × 87.3 × 35.5 mm
Inner Diameter	45.70 mm
Operating Temperature (Max)	50°C
Weight	0.50 lbs





Information About LEDRR80X80W

The LEDRR80X80W is part of the Banner Engineering LED Series lighting products developed for machine vision and optical inspection applications. It is designed specifically for use with PresencePLUS® vision sensors and mounts directly to the sensor using included hardware. The ring light features a solid-state LED matrix that supports continuous or strobed operation controlled through sensor software. Its low-carbon steel housing and acrylic window provide mechanical stability for fixed industrial installations.

Key Features:

• Square ring light design: Provides even illumination around the camera field of view.

• Visible red LED output: Optimized for contrast enhancement in machine vision applications.

• 80 × 80 mm illumination size: Suitable for PresencePLUS® sensor integration.

• 24 VDC operation: Compatible with standard industrial power systems.

• Solid-state LED matrix: Supports continuous or strobed operation modes.

• Direct sensor mounting: Attaches directly to PresencePLUS® sensors using supplied hardware.

• Flying lead cable connection: Allows flexible wiring to sensors or external power sources.

The LEDRR80X80W delivers the reliability and precision required for machine vision lighting in industrial inspection systems.
