Description

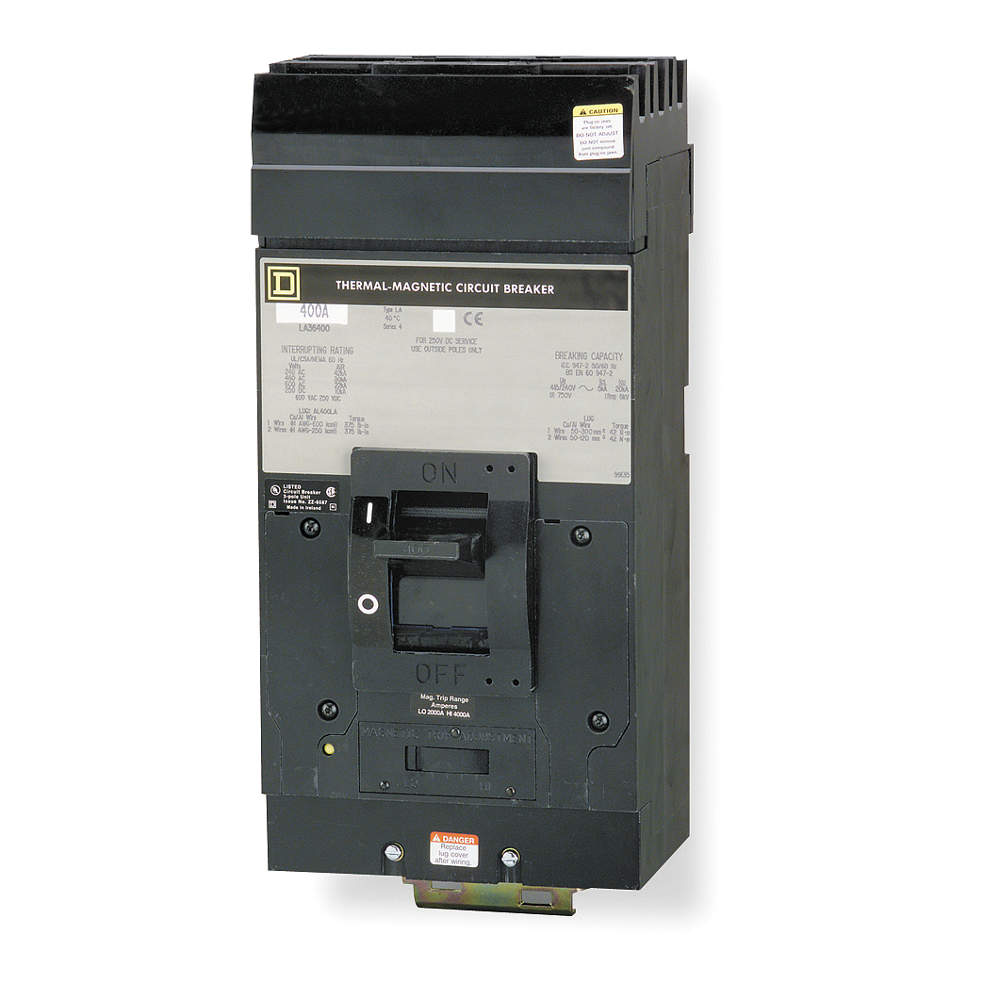

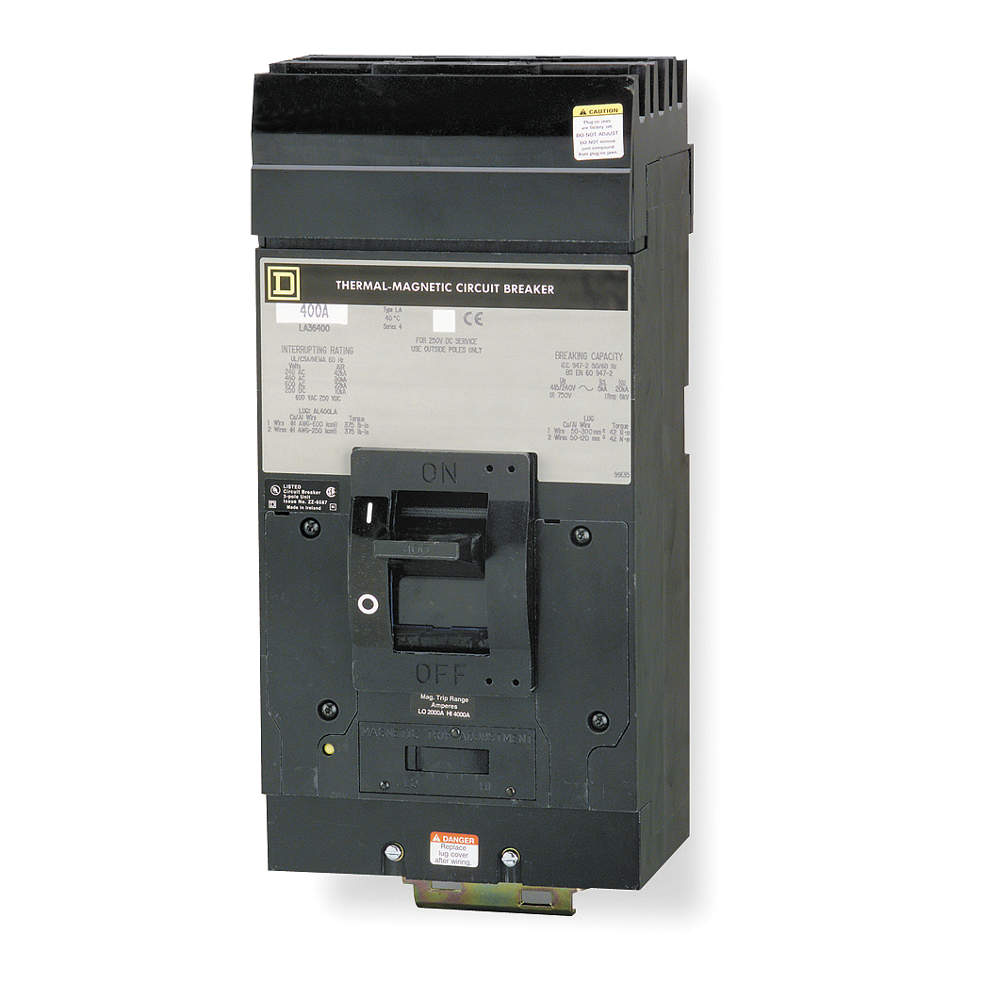

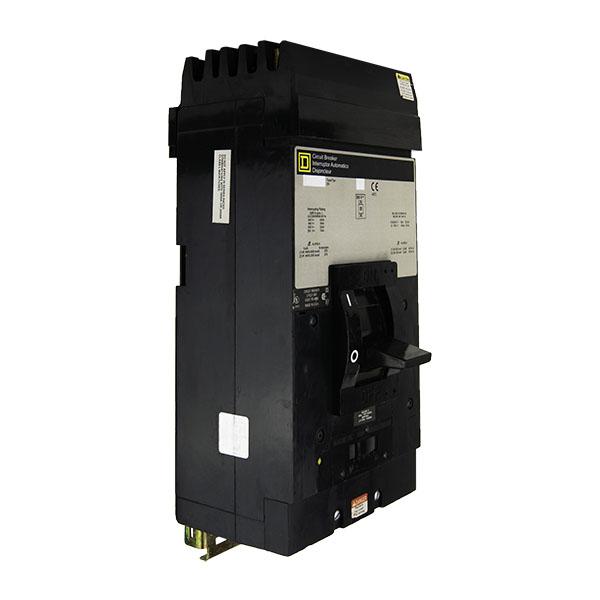

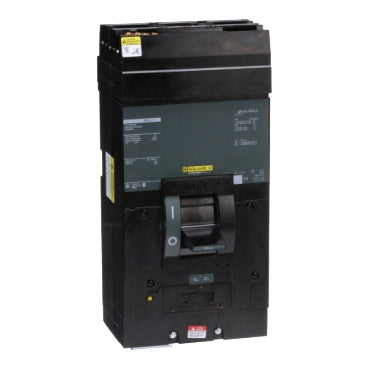

The Schneider Electric LA36150 is a three pole thermal magnetic molded case circuit breaker designed for controlled power distribution protection. It supports 150 amp, 600 VAC operation with reliable long-time and instantaneous trip response in low-voltage electrical systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Circuit Protection |
| Part Number |
LA36150 |
| Subcategory |
Molded Case Circuit Breakers |
| Series |
LA |
| Family |
I-Line |
| Frame Type |
LA |
| Amperage Rating |
150 A |
| Voltage Rating |
600 VAC |
| DC Voltage Rating |
250 VDC |
| Number of Poles |
3 |
| Phase |
3 Phase |
| Interrupting Rating |
30 kA @ 480 V |
| Protection Type |
Thermal Magnetic |
| Trip Functions |
Long-Time and Instantaneous (LI) |
| Mounting Mode |
I-Line Style Plug-In |
| Wiring Configuration |
3-Wire |
| Magnetic Hold Current |
750 A |
| Magnetic Trip Current |
1500 A |
| HACR Rated |
Yes |
| Dimensions (H x W x D) |
11 x 6 x 5.84 in |
| Weight |
18.08 lbs |
Information About LA36150
The LA36150 is part of the Schneider Electric LA Series within the I-Line family, developed for standardized panelboard and switchboard power distribution systems. This circuit breaker uses a three pole configuration to support balanced three-phase electrical loads up to 150 amps at 600 VAC. It incorporates a thermal magnetic trip unit that provides both overload and short-circuit protection through long-time and instantaneous trip functions. The I-Line plug-in mounting design allows secure installation and efficient integration into compatible Schneider Electric panelboard architectures.
Key Features
- Thermal Magnetic Protection: Combines thermal overload sensing with magnetic short-circuit protection for dependable circuit control.
- Three Pole Configuration: Supports three-phase power distribution in commercial and industrial electrical systems.
- High Interrupting Capacity: Rated up to 30 kA at 480 V for safe fault interruption in demanding installations.
- I-Line Plug-In Mounting: Enables fast installation and secure electrical connection in I-Line panelboards.
- Long-Time Trip Function: Protects conductors and equipment against sustained overload conditions.
- Instantaneous Trip Response: Rapid short-circuit interruption minimizes fault energy and equipment stress.
- HACR Rated Design: Approved for heating, air conditioning, and refrigeration circuit protection.
The LA36150 delivers the reliability and precision required for three-phase power distribution and circuit protection applications.
