Description

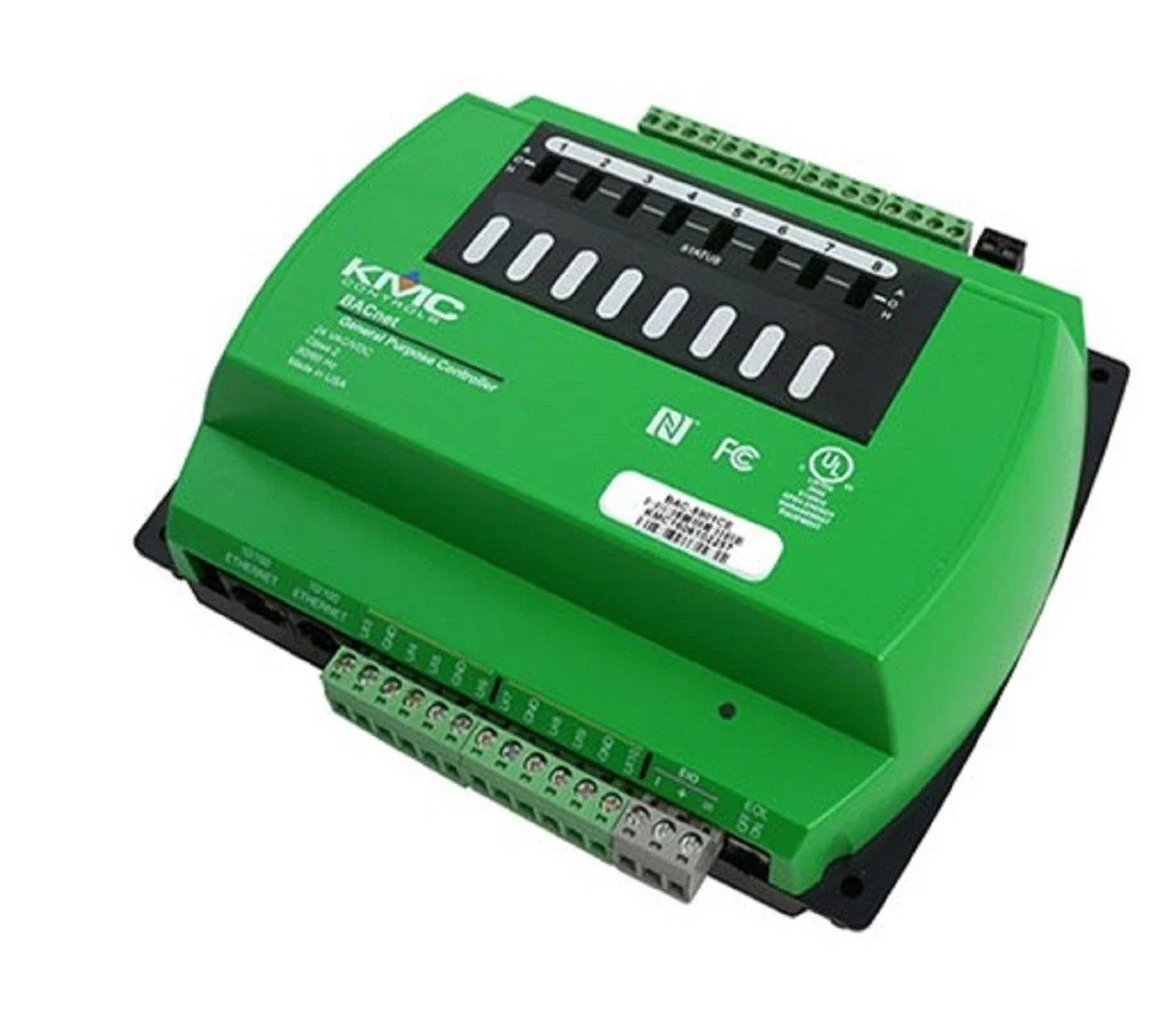

The KMC Controls BAC-5901CE is a BACnet Advanced Application Controller designed to manage HVAC equipment and building automation systems with integrated Ethernet connectivity. Featuring programmable control logic, built-in scheduling, alarming, and trending, the BAC-5901CE provides a flexible edge controller for commercial smart building applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
KMC Controls |
| Category |
Building Automation |
| Part Number |
BAC-5901CE |
| Subcategory |
BACnet Advanced Application Controller |
| Series |
Conquest™ BAC-5900 Series |
| Product Type |
General Purpose Controller |
| Communication Protocol |
BACnet/IP |
| Network Interface |
10/100 Ethernet |
| Configuration Methods |
HTML5 Web Browser, NFC, STE-9000 Digital Sensor |
| Programming Software |
KMC Connect™ |
| Niagara Compatibility |
KMC Converge™ Module for Niagara Workbench |
| Integrated Features |
Scheduling, Alarming, Trending, Real-Time Clock |
| Inputs |
10 Universal Inputs |
| Outputs |
8 Universal Outputs |
| Expandable I/O |
Up to 72 Inputs and 40 Outputs with CAN-5901/CAN-5902 Modules |
| Application |
HVAC and commercial building automation control |
| Mounting |
Control panel / DIN rail enclosure installation |
| Weight |
Approximately 1.1 lb (0.5 kg) |
Information About BAC-5901CE
The BAC-5901CE is part of the KMC Controls Conquest™ BAC-5900 series, developed to provide advanced control for HVAC equipment and integrated building automation systems. It supports BACnet communication over Ethernet and can be configured through an HTML5-compatible web browser, an STE-9000 digital sensor, or NFC technology using the KMC Connect Lite™ mobile application. The controller is fully programmable with KMC Connect™ software and integrates with Niagara Workbench through the KMC Converge™ module for custom applications. Designed for scalable installations, it supports I/O expansion using CAN-5901 and CAN-5902 expansion modules, making it suitable for air handling units, rooftop units, fan coil units, and other commercial HVAC equipment.
Key Features:
- BACnet Advanced Application Controller: Designed for advanced HVAC and building automation control.
- Ethernet Connectivity: Supports BACnet/IP communication over an integrated Ethernet interface.
- Fully Programmable: Custom programming through KMC Connect™ software.
- HTML5 Web Configuration: Built-in browser-based setup without dedicated software.
- NFC Configuration: Supports wireless setup using the KMC Connect Lite™ mobile app, even without controller power.
- Integrated Scheduling: Includes onboard scheduling for automated HVAC operation.
- Alarm Management: Built-in alarming for system monitoring and fault notification.
- Data Trending: Records operational data for diagnostics and performance analysis.
- Expandable I/O: Supports expansion up to 72 inputs and 40 outputs using CAN-5901 and CAN-5902 modules.
- Smart Building Integration: Compatible with Niagara Workbench through the KMC Converge™ platform.
The BAC-5901CE delivers the reliability and precision required for advanced HVAC control and intelligent commercial building automation systems.
