Description

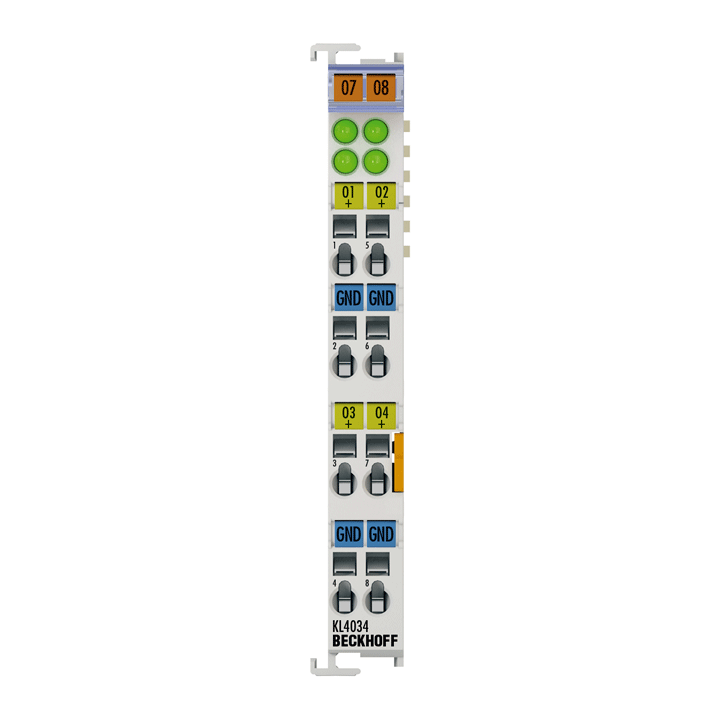

The Beckhoff KL4034 Bus Terminal is a 4-channel analog output module that delivers voltage signals in the ±10 V range with 12-bit resolution. It provides electrically isolated, single-ended outputs for precise voltage control in process and automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial I/O |
| Part Number |
KL4034 |
| Subcategory |
Analog Output Terminals |
| Technology |
Single-ended analog voltage output |
| Number of Outputs |
4 |
| Signal Voltage Range |
-10…+10 V |
| Resolution |
12 bit |
| Output Error |
< ±0.1% (relative to end value) |
| Conversion Time |
Approx. 2 ms |
| Load |
> 5 kΩ (short-circuit proof) |
| Power Supply |
Via K-bus |
| Current Consumption (K-bus) |
Typ. 85 mA |
| Current Consumption (Power Contacts) |
None |
| Electrical Isolation |
500 V (K-bus/signal voltage) |
| Process Image Bit Width |
Output: 4 × 16-bit data (4 × 8-bit control/status optional) |
| Configuration |
No address or configuration setting required |
| LED Indicators |
RUN LEDs for communication and status feedback |
| Operating Temperature |
0…55°C |
| Storage Temperature |
-25…+85°C |
| Protection Class |
IP20 |
| Mounting |
DIN rail |
| Relative Humidity |
95%, non-condensing |
| Weight |
85 g (approx. 0.19 lbs) |
Information About KL4034
The KL4034 is part of Beckhoff’s modular K-bus terminal system, designed for generating analog voltage outputs in control and automation applications. With four single-ended channels and ±10 V output range, it provides precise signal generation for actuators, drives, and control elements. The terminal connects directly to the K-bus, which supplies both communication and power, eliminating the need for separate wiring. Its 12-bit resolution and electrical isolation ensure accurate and interference-free analog signal transmission. The KL4034 automatically integrates into the process image of the connected Bus Coupler or controller, simplifying configuration and operation.
Key Features:
- Four Analog Outputs: Provides four voltage outputs for control of analog devices or signal generation in automation systems.
- High Accuracy: Offers 12-bit resolution and ±0.1% output error for precise voltage control.
- Wide Voltage Range: Delivers ±10 V signal levels suitable for most industrial analog control inputs.
- Electrically Isolated Design: 500 V isolation between K-bus and output channels ensures protection and signal integrity.
- Simple Integration: Requires no address or configuration setup, automatically recognized by the Bus Coupler.
- Fast Response: Achieves a conversion time of approximately 2 ms for dynamic analog signal output.
- LED Status Indication: RUN LEDs provide immediate visual feedback of communication and channel activity.
- Compact and Durable: IP20-rated housing suitable for DIN-rail installation within industrial control panels.
The KL4034 delivers the reliability and precision required for analog control, voltage signal output, and smooth integration into Beckhoff automation systems.
