Description

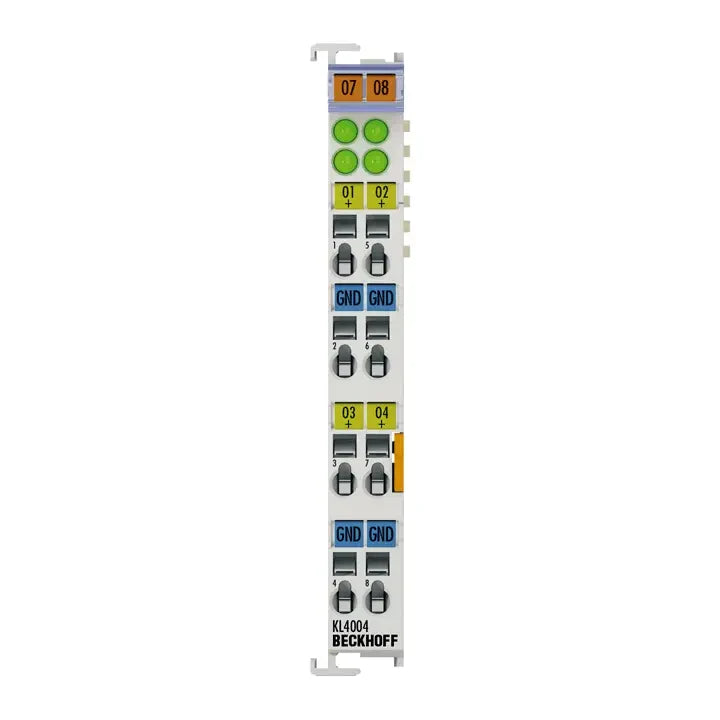

The Beckhoff KL4004 is a 4-channel analog output bus terminal designed for generating precise voltage signals in automation systems. Supporting 0…10 V single-ended output with 12-bit resolution, it ensures reliable performance with short-circuit protection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
I/O Terminals |
| Part Number |
KL4004 |
| Subcategory |
Analog Output Terminals |
| Number of Outputs |
4 |
| Signal Voltage |
0…10 V |
| Technology |
Single-ended |
| Resolution |
12 bit |
| Conversion Time |
~ 2 ms |
| Load Requirement |
> 5 kΩ, short-circuit proof |
| Output Error |
< ±0.1% (relative to end value) |
| Electrical Isolation |
500 V (K-bus/signal voltage) |
| Power Supply |
Via K-bus |
| Current Consumption (K-bus) |
Typ. 85 mA |
| Bit Width in Process Image |
4 × 16-bit data (4 × 8-bit control/status optional) |
| Configuration |
No addressing or configuration required |
| Housing Material |
Polycarbonate |
| Installation |
35 mm DIN rail, EN 60715 with lock |
| Dimensions (W × H × D) |
12 mm × 100 mm × 68 mm |
| Operating Temperature |
0…55 °C |
| Storage Temperature |
-25…+85 °C |
| Relative Humidity |
95%, no condensation |
| Protection Rating |
IP20 |
| Weight |
Approx. 85 g |
Information About KL4004
The KL4004 is part of Beckhoff’s KL series of analog output bus terminals, designed for distributed signal generation in automation environments. It provides four independent channels with a voltage range of 0…10 V, offering precise control with a 12-bit resolution and an output error of less than ±0.1%. Each channel is short-circuit proof and ensures reliable signal generation for loads greater than 5 kΩ. Compact and easily installed on a DIN rail, the KL4004 integrates seamlessly into modular K-bus systems with no manual configuration required.
Key Features:
-
Four Analog Outputs: Supplies four independent voltage outputs within the 0…10 V range for versatile signal generation.
-
12-Bit Resolution: Provides fine signal gradation for accurate control in automation processes.
-
Short-Circuit Proof Design: Ensures output safety by protecting channels from electrical faults.
-
Fast Conversion Time: Updates outputs within ~2 ms for responsive system performance.
-
Low Output Error (< ±0.1%): Guarantees precise voltage output relative to the full-scale value.
-
Strong Electrical Isolation: 500 V isolation between K-bus and signal voltage ensures safe and interference-free operation.
-
Compact Modular Housing: Slim 12 mm profile saves space while delivering four output channels.
-
Seamless System Integration: Requires no addressing or configuration, working directly within Beckhoff’s K-bus architecture.
The KL4004 delivers the reliability and precision required for high-quality analog signal generation in distributed automation systems.
