Overview

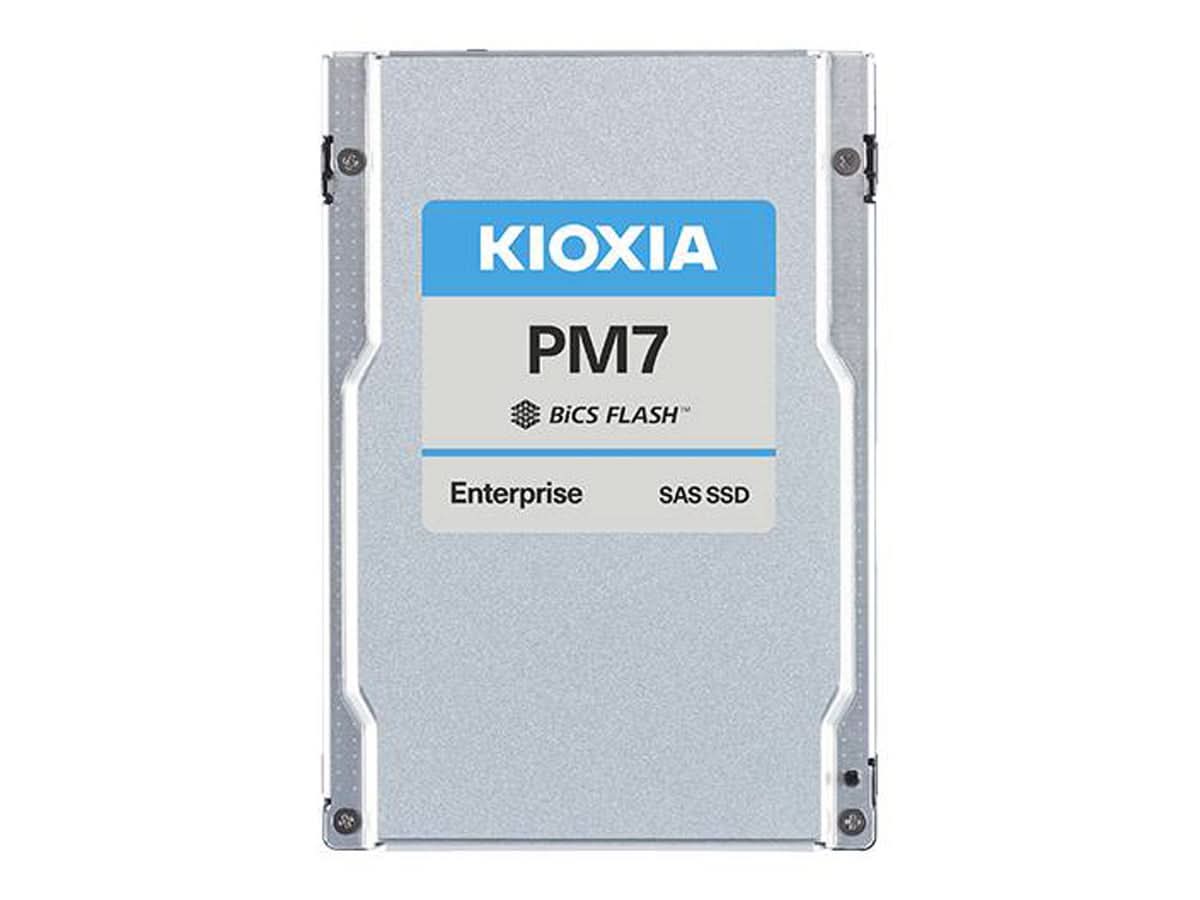

Kioxia KPM7XVUG6T40 PM7-V 6.40 TB SAS 24Gb/s 2.5in Internal Solid State Drive
Specifications
Model Number:KPM7XVUG6T40
Brand: Kioxia
Alt Part Number(s):KPM7XVUG6T40
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model:KPM7XVUG6T40
Capacity: 6400 GB
NAND Flash Memory Type: 3D triple-level cell (TLC)
Form Factor: 2.5"
Interface: SAS 24Gb/s
Data Transfer Rate: 2.8 GBps
Internal Data Rate: 4200 MBps (read) / 4100 MBps (write)
4KB Random Read: 720000 IOPS
4KB Random Write: 355000 IOPS
Drive Class: Enterprise
Drive Writes Per Day (DWPD): 3
MTBF: 2,500,000 hours
Features: Sanitize Instant Erase (SIE), T10 Multi-Stream Write, End-to-end data protection, Power Loss Protection (PLP), T10 Data Integrity Field (DIF), Power Disable Pin (Pin3), 112-layer 3D BiCS FLASH
Compatible Bay: 2.5"
Interfaces: 1 x SAS 24Gb/s
Power Consumption: 5 Watt (active, typical)
Min Operating Temperature: 32 °F
Max Operating Temperature: 158 °F
Humidity Range Operating: 5 - 95% RH
Shock Tolerance (Operating): 1000 g @ 0.5 ms
Vibration Tolerance (Operating): 2.17 g @ 5-800 Hz
*
