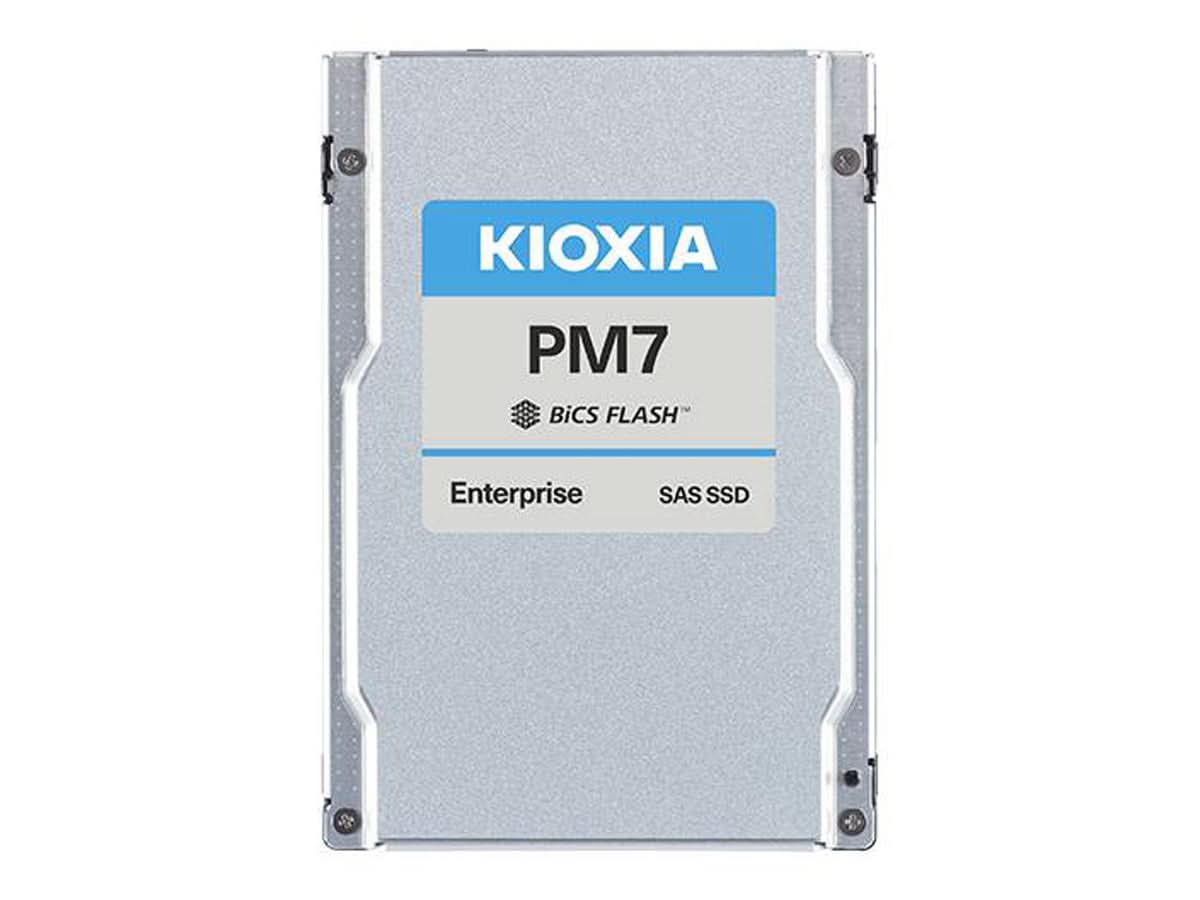

Kioxia KPM7XVUG12T8 PM7-V Series 12.8TB Enterprise 2.5in SAS Solid State Drive
Specifications
Model Number:KPM7XVUG12T8
Brand: Kioxia
Alt Part Number(s):KPM7XVUG12T8
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model:KPM7XVUG12T8
Capacity: 12800 GB
Interface: 24G SAS (SAS-4), single/dual-port support
Form Factor: 2.5", 15 mm thickness
Flash Type: BiCS FLASH TLC
Max Sequential Read: 4200 MB/s
Max Sequential Write: 4100 MB/s
Max 4KB Random Read: 720000 IOPS (dual-port)
Max 4KB Random Write: 330000 IOPS
Endurance (DWPD): 3
MTTF: 2,500,000 hours
Power Loss Protection: Yes
End-to-End Data Protection: Yes (T10 DIF)
Security Options: SIE, SED, FIPS SED
Power Consumption (Ready): 5 W (typical)
Supply Voltage: 12V ±10%, 5V +10% / -7%
Width: 69.85 mm ±0.25 mm
Length: 100.45 mm (max)
Height: 15 mm (+0, -0.5 mm)
Weight: 130 g (max)
Operating Temperature: 0°C to 70°C
Non-Operating Temperature: -40°C to 80°C
Operating Humidity: 5% to 95% RH
Vibration (Operating): 2.17 gRMS (5 - 800 Hz)
Shock (Operating): 1000 g @ 0.5 ms
*
