Description

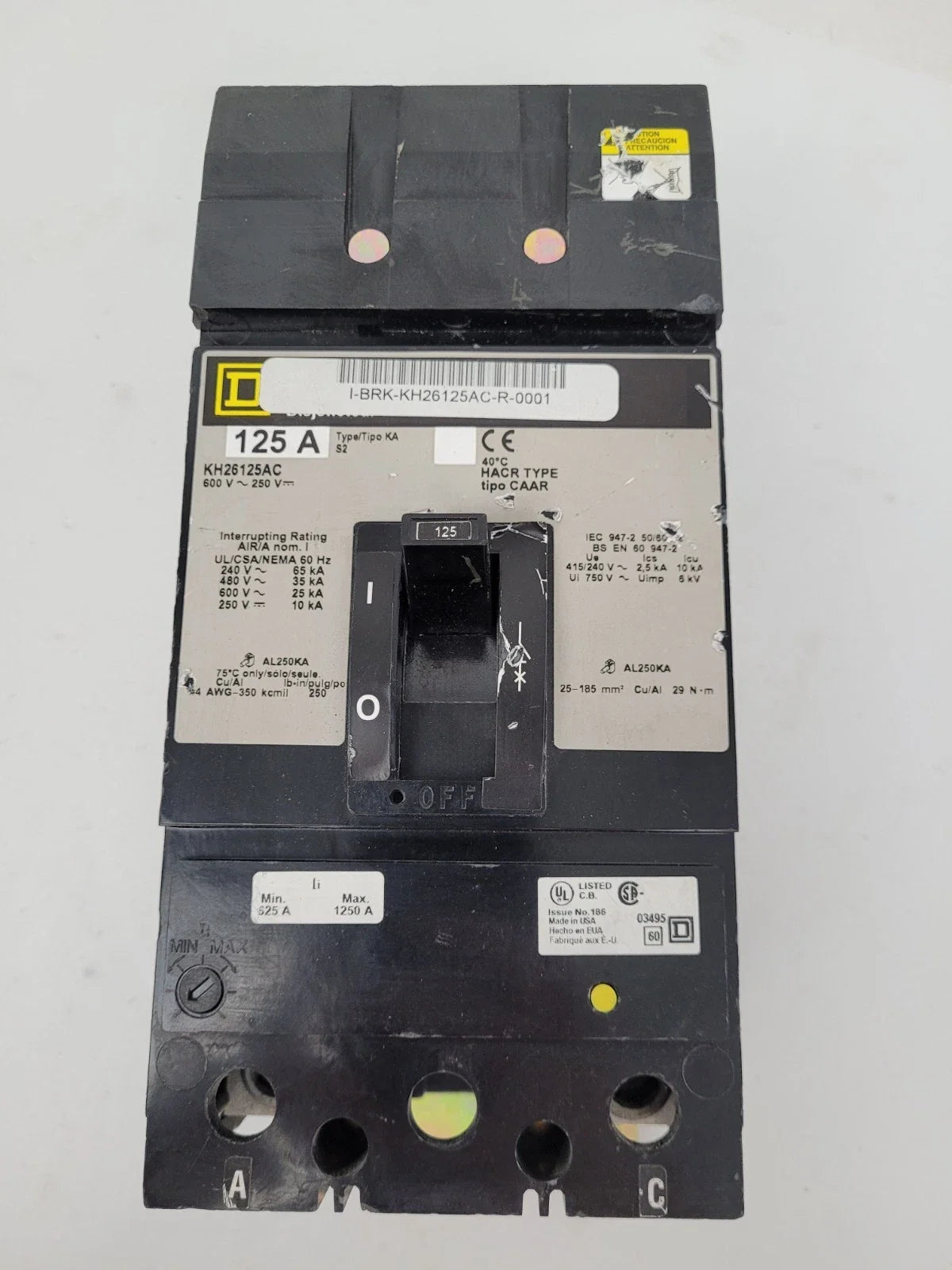

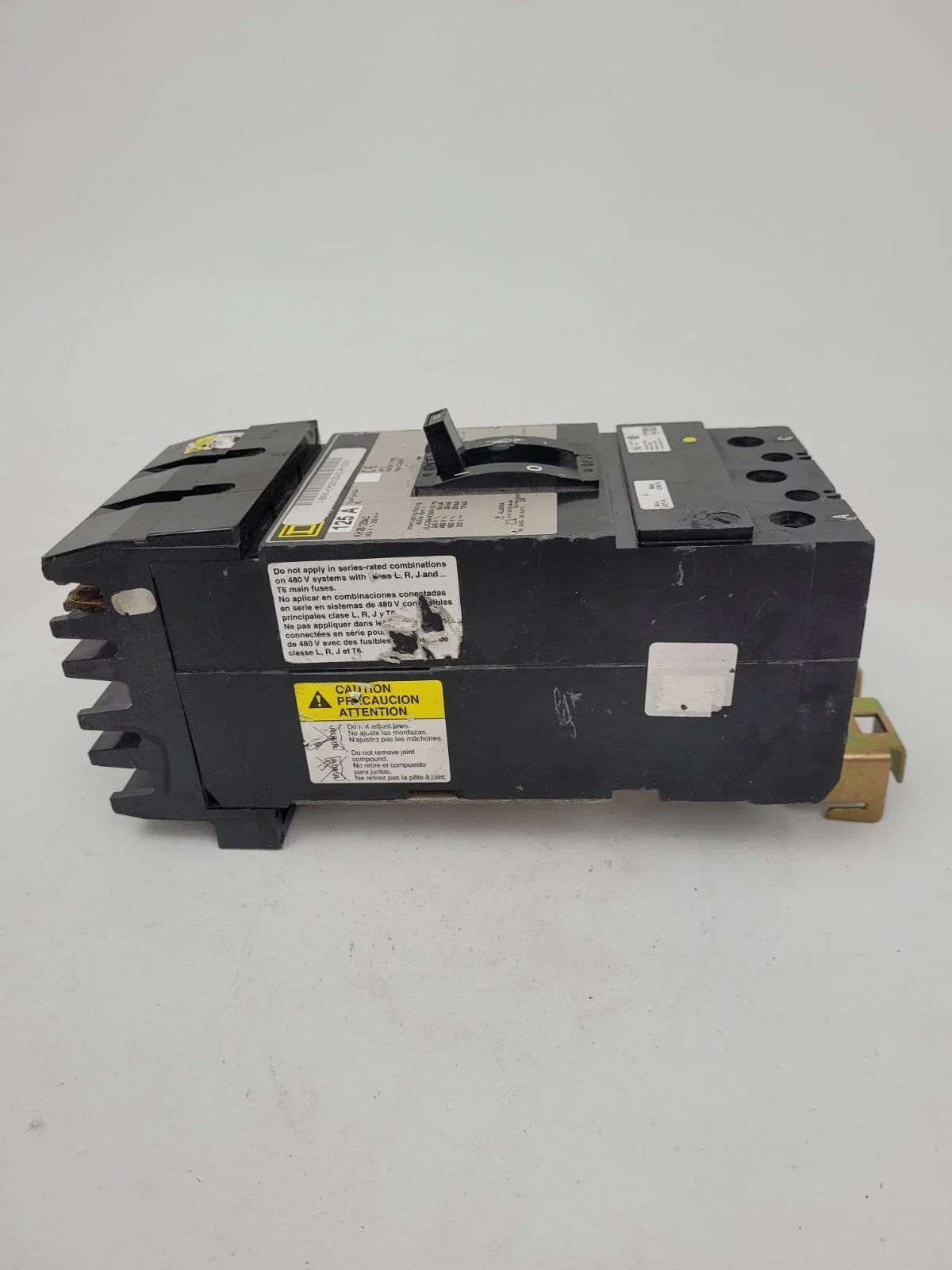

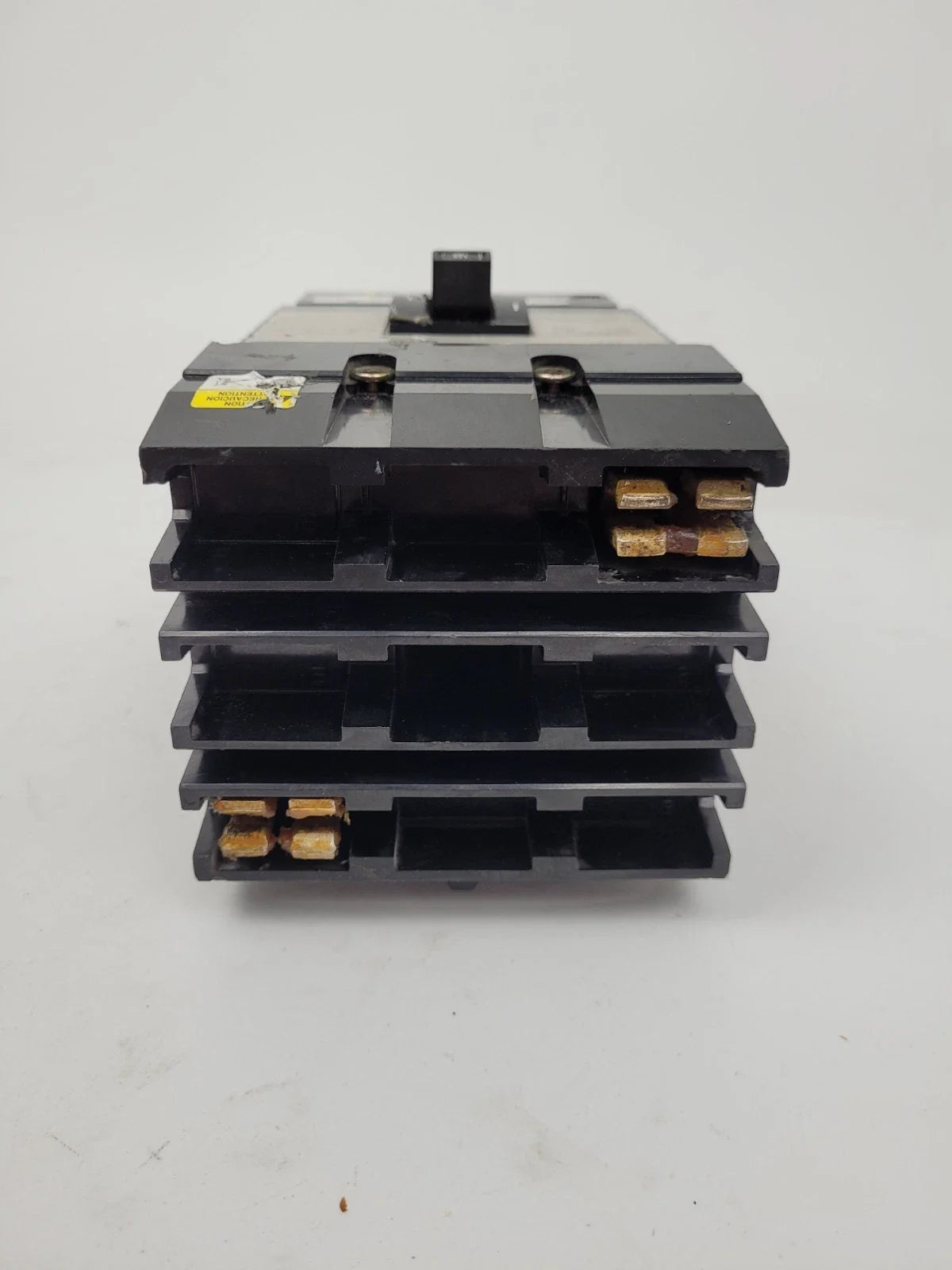

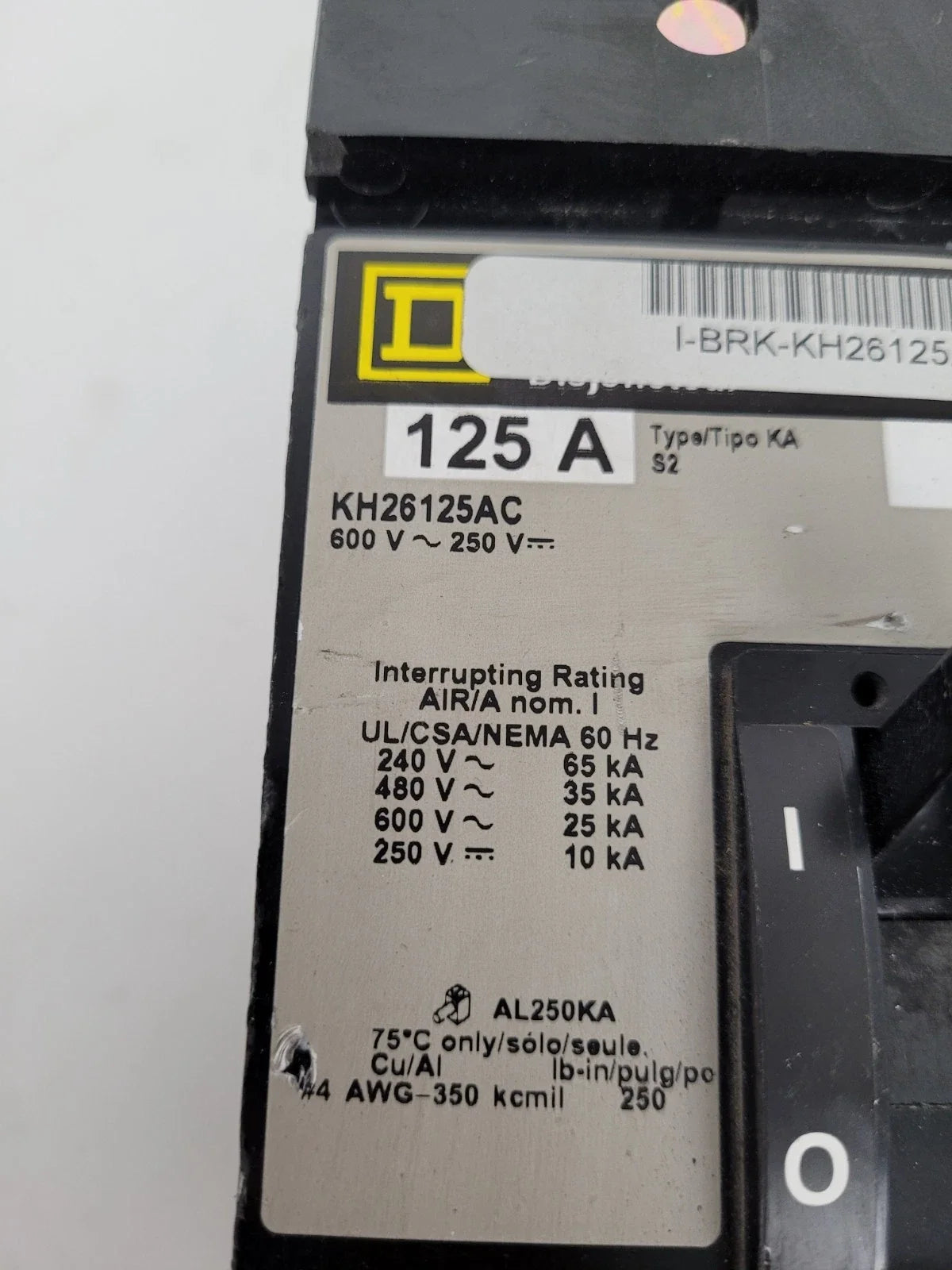

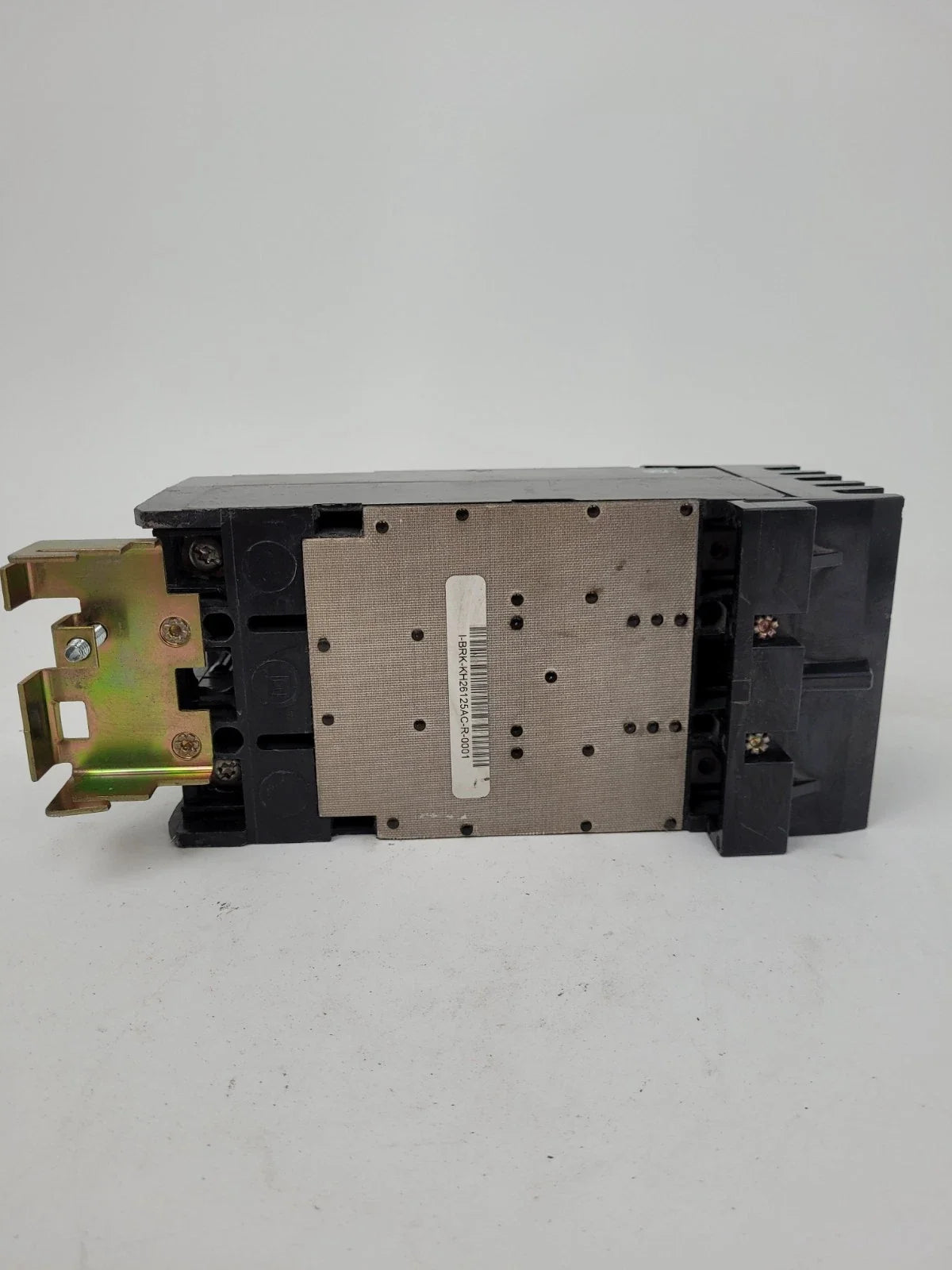

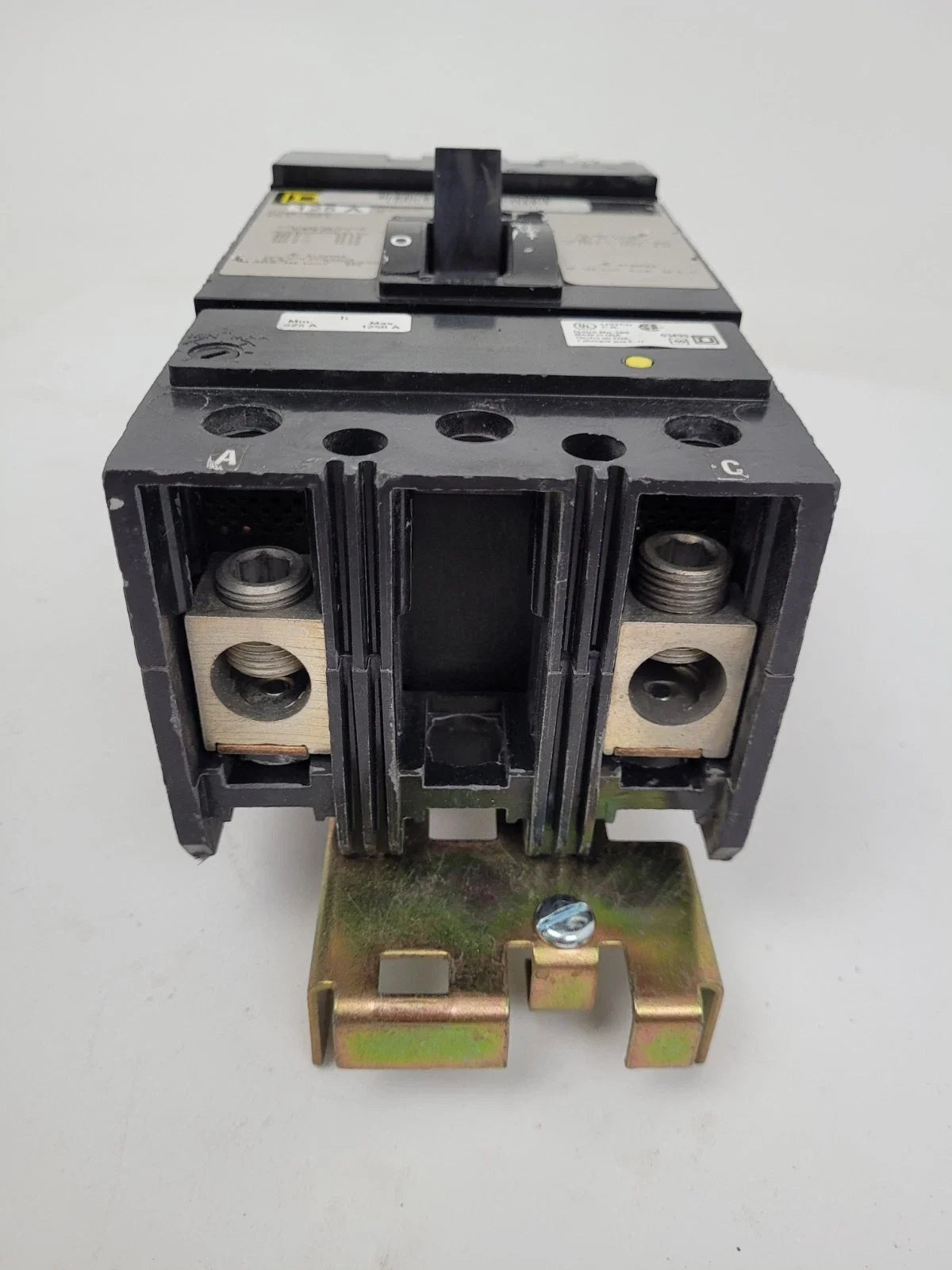

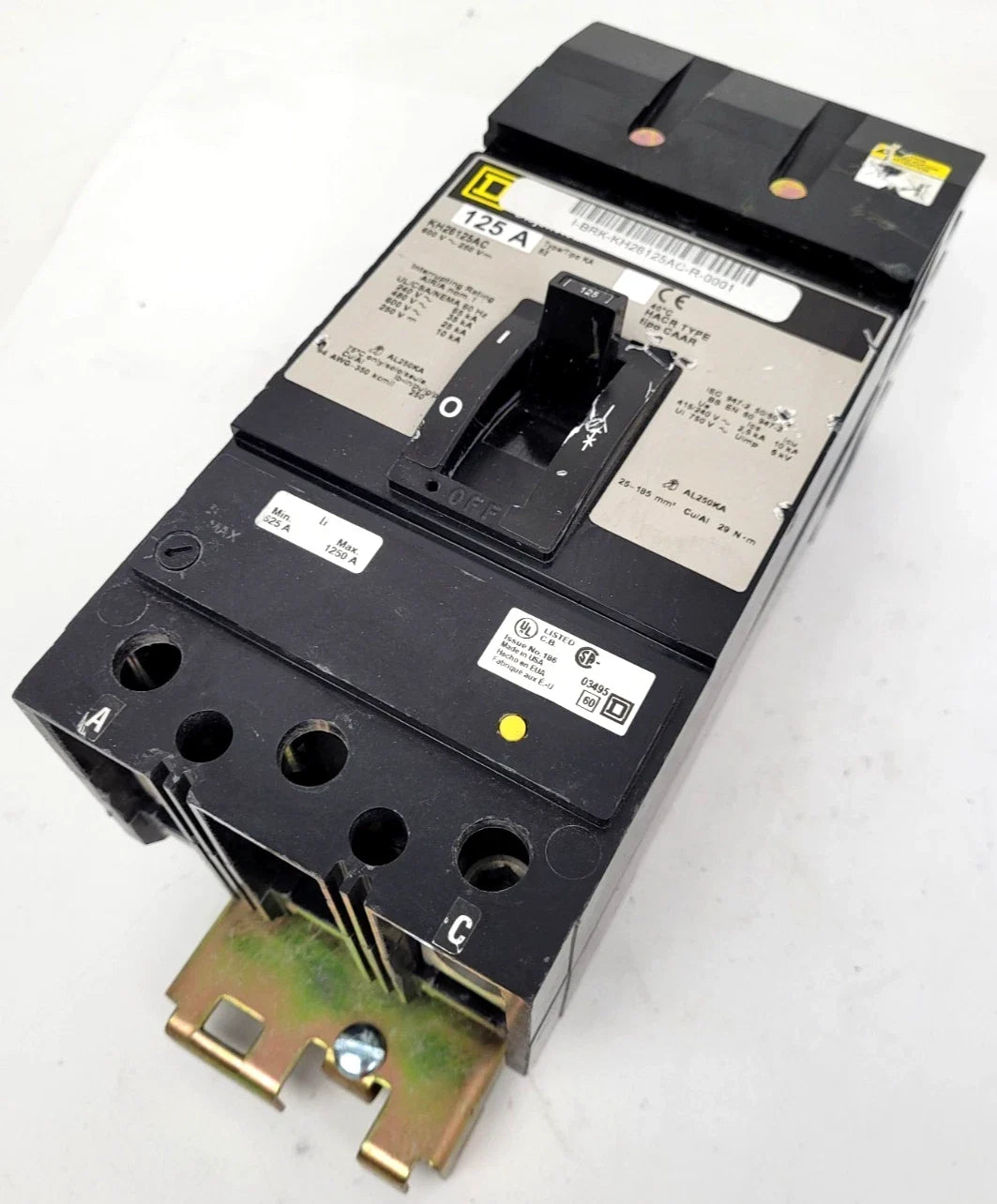

The Schneider Electric KH26125AC is a molded case circuit breaker designed to provide reliable protection against overloads and short-circuit conditions in low-voltage electrical systems. It supports safe interruption of electrical faults in two-pole power circuits rated up to 600 volts. This breaker is commonly used in industrial and commercial distribution panels where dependable circuit protection is required.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Circuit Breaker |
| Part Number |
KH26125AC |
| Subcategory |
Molded Case Circuit Breaker |
| Breaker Type |
Thermal-magnetic |
| Current Rating |
125 A |
| Number of Poles |
2 |
| Rated Voltage |
Up to 600 V AC |
| Mounting Type |
Panel mount |
| Application |
Branch and feeder circuit protection |
| Product Status |
Discontinued by manufacturer |
| Construction |
Molded case |
| Usage Environment |
Industrial and commercial |
| Standards Compliance |
UL / CSA (series dependent) |
| Weight |
6.00 lb |
Information About KH26125AC
The KH26125AC is part of Schneider Electric’s legacy molded case circuit breaker portfolio, engineered for dependable performance in electrical distribution applications. It features a thermal-magnetic trip mechanism that combines inverse-time overload protection with instantaneous magnetic fault response. The breaker is built with a compact molded case housing suitable for panelboard and switchboard installations. Although discontinued by the manufacturer, it remains in service within many existing electrical systems and replacement inventories.
Key Features:
- Thermal-Magnetic Protection: Provides coordinated overload and short-circuit protection.
- 125 A Current Rating: Designed for medium-capacity branch and feeder circuits.
- 600 V Voltage Rating: Suitable for low-voltage industrial and commercial systems.
- Two-Pole Configuration: Supports specific multi-conductor circuit applications.
- Molded Case Construction: Ensures durability and electrical insulation.
- Panelboard Compatible: Designed for installation in distribution panels and enclosures.
- Legacy System Support: Commonly used in existing Schneider Electric installations.
The KH26125AC delivers the reliability and precision required for consistent circuit protection in industrial and commercial electrical distribution systems.
