Description

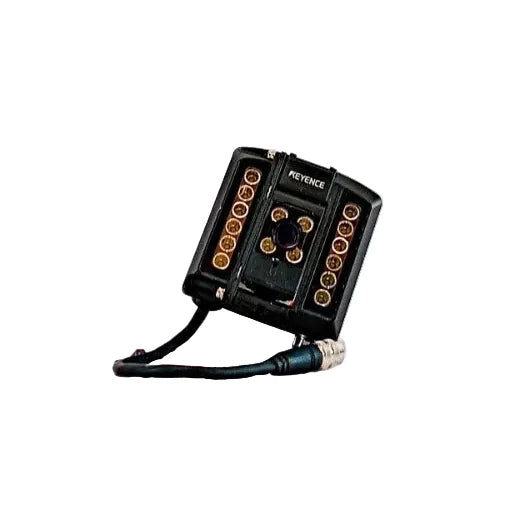

The Keyence IV4-G500CA is a compact color vision sensor head designed for high-speed automated inspection and detection tasks. It integrates imaging, lighting, and processing capabilities into a single unit for efficient operation in industrial environments. This sensor provides stable and accurate inspection performance for object detection, sorting, and quality control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Keyence |
| Category |
Machine Vision |
| Part Number |
IV4-G500CA |
| Subcategory |
Vision Sensors |
| Series |
IV4 Series |
| Sensor Type |
Compact Color Vision Sensor Head |
| Image Sensor |
1/2.9-inch color CMOS |
| Resolution |
1280 x 960 pixels |
| Installed Distance |
From 50 mm |
| Field of View |
Approx. 22 x 16 mm to 1184 x 888 mm |
| Focus Adjustment |
Automatic |
| Exposure Time |
12 µs to 9 ms |
| Lighting |
White LED |
| Lighting Mode |
Pulse / Continuous |
| Indicators |
Dual status indicators |
| Power Consumption |
Approx. 2.5 W (typical) |
| Protection Rating |
IP67 |
| Operating Temperature |
0 to 50°C |
| Relative Humidity |
Up to 85% RH |
| Material |
Die-cast aluminum with acrylic front cover |
| Weight |
Approx. 0.17 lbs |
Information About IV4-G500CA
The IV4-G500CA is part of the Keyence IV4 Series, engineered for compact, all-in-one vision sensing solutions. It features a built-in color CMOS sensor with automatic focus adjustment, enabling reliable detection across varying distances and target conditions. The unit supports flexible installation with a wide field of view range and configurable lighting modes, including pulse and continuous illumination. Designed for seamless integration into automated systems, it offers stable operation, high-speed response, and consistent inspection accuracy in demanding production environments.
Key Features:
- Color CMOS Sensor: Enables accurate color detection and inspection of multi-colored targets
- Compact All-in-One Design: Integrates camera, lighting, and processing in a single unit
- Autofocus Function: Automatically adjusts focus for optimal image clarity during setup
- Wide Field of View Range: Adapts to various installation distances for flexible applications
- High-Speed Imaging: Supports rapid inspection cycles in automated production lines
- White LED Illumination: Provides consistent lighting for reliable image acquisition
- Flexible Lighting Modes: Switchable between pulse and continuous lighting
- IP67 Protection Rating: Resistant to dust and water for industrial environments
- Dual Indicator Display: Provides clear status and operation feedback
- Low Power Consumption: Efficient operation with minimal energy requirements
- Robust Construction: Built with durable materials for long-term industrial use
The IV4-G500CA delivers the reliability and precision required for automated visual inspection and industrial quality control applications.
