Description

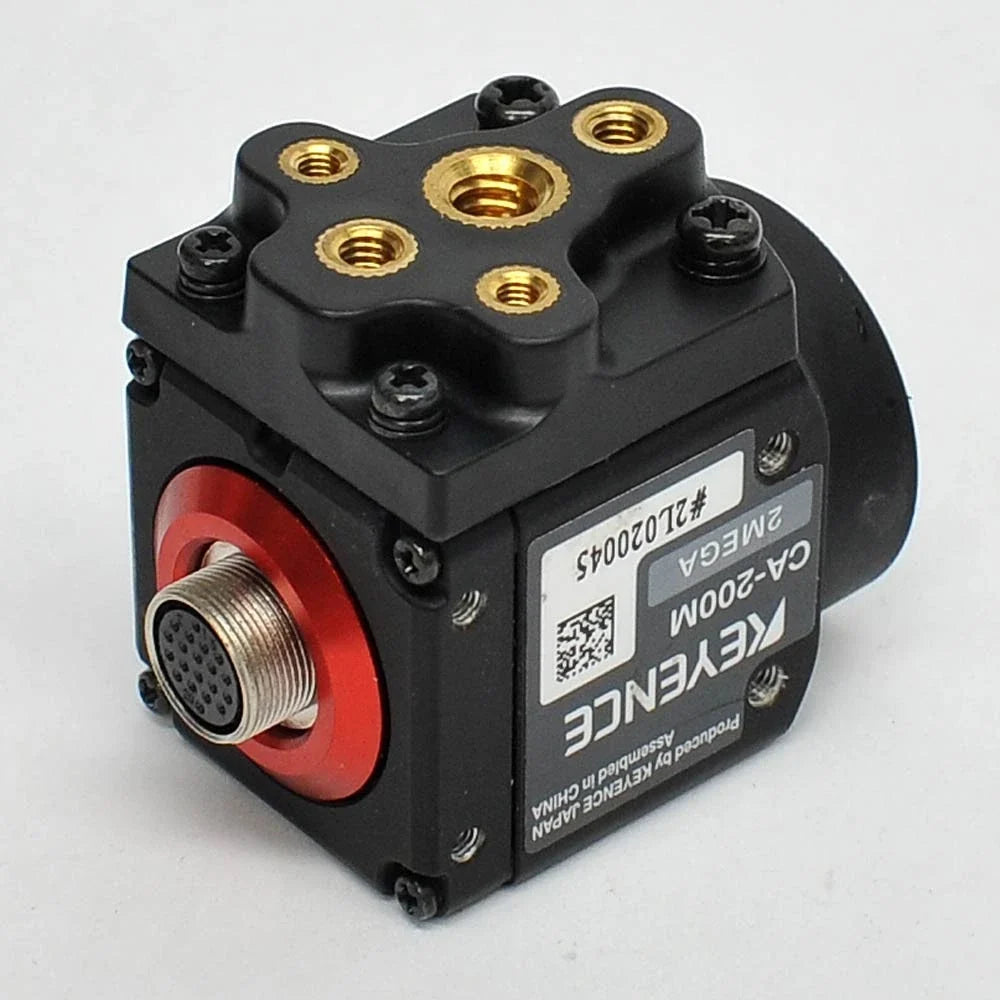

The Keyence CA-200M is an environment-resistant 2 megapixel monochrome camera designed for high-speed image capture in industrial machine vision systems. Featuring a high-performance CMOS sensor and digital serial transfer, the CA-200M delivers reliable imaging for inspection and measurement applications. This camera is optimized for stable operation in demanding environments requiring precision and durability.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Keyence |
| Category |
Machine Vision |
| Part Number |
CA-200M |
| Subcategory |
Industrial Cameras |
| Image Sensor |
Monochrome CMOS |
| Sensor Size |
Equivalent to 1/1.8" |
| Resolution |
1600 × 1200 (2 MP), 1024 × 960 (1 MP) |
| Pixel Size |
4.5 µm × 4.5 µm |
| Scanning Method |
Progressive scan |
| Frame Rate |
Approx. 56.5 ms scan cycle |
| Pixel Transfer Frequency |
43 MHz |
| Transfer System |
Digital serial |
| Electronic Shutter |
0.05 ms to 9000 ms |
| Lens Mount |
C-mount |
| Protection Rating |
IP64 |
| Operating Temperature |
0°C to +45°C |
| Humidity Range |
≤ 85% RH (non-condensing) |
| Weight |
Approx. 75 g |
Information About CA-200M
The CA-200M is part of Keyence’s CA series of industrial cameras, developed for integration into advanced vision inspection systems. It utilizes a monochrome CMOS sensor with square-pixel technology to ensure accurate image reproduction and high-speed data acquisition. Designed with an IP64-rated enclosure, it offers resistance to dust and environmental exposure, making it suitable for factory automation environments. The camera supports C-mount lenses and digital serial communication, enabling flexible system configuration and seamless integration with Keyence vision controllers.
Key Features:
- 2 Megapixel Resolution: Provides high-quality imaging for inspection and measurement tasks
- Monochrome CMOS Sensor: Ensures high sensitivity and precise grayscale image capture
- High-Speed Image Acquisition: Pixel transfer frequency of 43 MHz for fast processing
- Progressive Scanning: Enables accurate capture of moving objects without distortion
- Digital Serial Transfer: Ensures reliable and high-speed data communication
- Flexible Shutter Control: Adjustable electronic shutter from 0.05 ms to 9000 ms
- Compact Industrial Design: Suitable for integration into machine vision systems
- C-Mount Compatibility: Supports a wide range of industrial lenses
- Environment-Resistant Housing: IP64 rating for protection against dust and splashes
- High Pixel Accuracy: Square-pixel structure for consistent measurement precision
- Multiple Resolution Modes: Supports both 2 MP and 1 MP operation modes
The CA-200M delivers the reliability and precision required for high-speed image acquisition, industrial inspection, and automated vision systems.
