Description

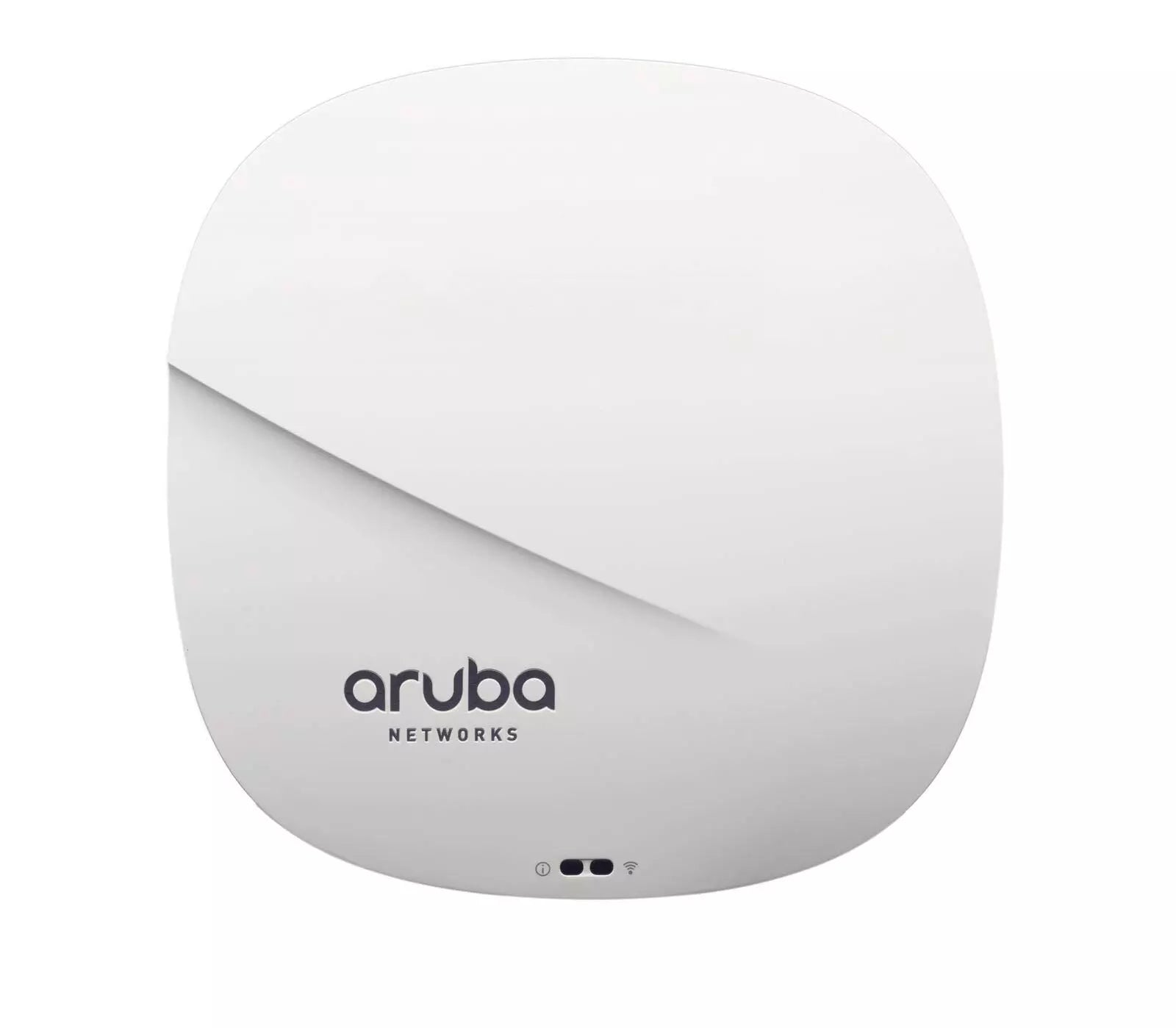

The HP JW813A is an Aruba AP-305 (Unified AP) dual-band 802.11ac Wave 2 wireless access point, designed for mid-density enterprise environments.





Technical Specifications

Condition	New/Never Used Surplus
Brand	HP Networking
Category	Network Hardware
Part Number	JW813A
Subcategory	Wireless Access Point (Dual-Band, 802.11ac Wave 2)
Form Factor	In-ceiling
Connectivity Technology	Wireless
Spread Spectrum Method	Ofdm, Dsss
Frequency Band	2.4 Ghz, 5 Ghz
Performance	Maximum Data Rate (5 Ghz): 1733 Mbps ¶ Maximum Data Rate (2.4 Ghz): 400 Mbps
Capacity	Wireless Clients: 255 ¶ Bssids Per Radio: 16
Status Indicators	System, Status
Antenna	Internal
Antenna Qty	4
Directivity	Omni-directional
Interfaces	1 X 1000base-t - Rj-45 ¶ 1 X Usb 2.0 - Type A
Weight	1.43 lbs





Information About JW813A

The HP JW813A refers to the Aruba AP-305 dual-band 802.11ac Wave 2 wireless access point, designed to deliver high-performance, cost-effective Wi-Fi for medium-density enterprise environments such as schools, offices, retail stores, and branch locations. Part of Aruba’s 300 Series, it provides excellent throughput and intelligent client handling with advanced features like ClientMatch and Adaptive Radio Management (ARM).

Key Features:

• Product Type: Wireless Access Point

• Model: Aruba AP-305 (HP Part Number JW813A)

• Wireless Standards:

  • 802.11ac Wave 2, 802.11n, 802.11a/b/g

• MIMO Technology:

  • 2x2:2 MU-MIMO (Multi-User Multiple-Input, Multiple-Output)

• Radio Bands:

  • 2.4 GHz (up to 300 Mbps)

  • 5 GHz (up to 867 Mbps)

  • Combined throughput: up to 1.167 Gbps

• Antennas:

  • Integrated omni-directional antennas (internal)

• Mounting Options:

  • Ceiling or wall mountable (mounting kits sold separately)

• Power Options:

  • PoE (802.3af)

  • Optional external power supply (not included)

• Ports:

  • 1 x 10/100/1000Base-T Ethernet (RJ-45)

  • 1 x USB 2.0 port

• Security Features:

  • WPA2/WPA3, 802.1X, secure boot, TPM (Trusted Platform Module)

• Management & Integration:

  • Aruba Central (cloud-based)

  • Aruba Mobility Controller (controller-based)

  • Standalone/Instant mode (without a controller)

The HP JW813A (Aruba AP-305) offers a flexible, efficient, and secure wireless solution for organizations looking to provide reliable performance and ease of management in medium-scale deployments, whether managed via controller or cloud.
