[shortdesc]
- SRX5400
- Cluster Bundle
- 2 x SRX5400E-B1-AC
- 2 x SRX5400-APPSEC-1
- 4 extra redundant PEMs
- Requires JunOS‚ 12.1X47-D15 onwards
[/shortdesc]
[properties]
| Product Name |

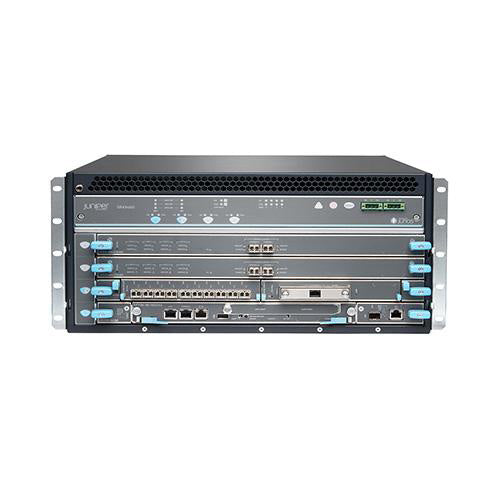

Juniper SRX5400E-B5-AC Cluster Bundle |
| Description |
Includes 2 x SRX5400E-B1-AC, 4 extra redundant PEMs, and 2 x SRX5400-APPSEC-1 |
| Operating System |
Requires JunOS 12.1X47-D15 or later |
| Type |
Next-generation Security Platform |
| Applications |
Large Enterprise Data Centers, Service Providers, Government Institutions |
| High Availability |
Redundant architecture with dual units |
| Architecture |
Modular |
| Redundancy |
Includes 4 extra redundant Power Entry Modules (PEMs) |
| Management |
On-device and centralized management options |
| Features |
High availability, advanced threat prevention, scalable performance, application-level protection |
| Certifications |
RoHS2 Compliant (Directive 2011/65/EU), NEBS Level 3 |
[/properties]
[specifications]
| Firewall Performance |
Up to 960 Gbps (achieved with SPC3 Advanced Security Cards) |
| IPS Performance |
Up to 172 Gbps (based on hardware and enabled services) |
| VPN Performance |
Up to 188 Gbps (maximum with optimal configuration) |
| Maximum Concurrent Sessions |
Up to 91 million |
| New Sessions per Second |
Up to 250,000 |
| Power Supply |
AC, includes 4 extra redundant PEMs |
| Form Factor |
Modular |
| Scalability |
Supports large-scale deployments |
| Compliance |
RoHS2 Compliant (Directive 2011/65/EU), NEBS Level 3 |
| Chassis Configuration |
Redundant with dual units |
| AppSecure Services |
Included for advanced security and application visibility |
| Interface Types |
Supports multiple high-performance line cards (dependent on modules installed) |
| Virtualization |
Supports virtual systems for scalability and segmentation |
| Cooling System |
Front-to-back airflow for optimized thermal management |
| Additional Features |
Advanced threat prevention, seamless integration with existing networks |
[/specifications]Juniper SRX5400 Services Gateway is a next-generation security platform ideally suited for large enterprise, service provider, and public sector networks. Based on a sophisticated architecture and using high-performance line cards, the SRX5400 provides unrivaled connectivity, performance, and service integration.
