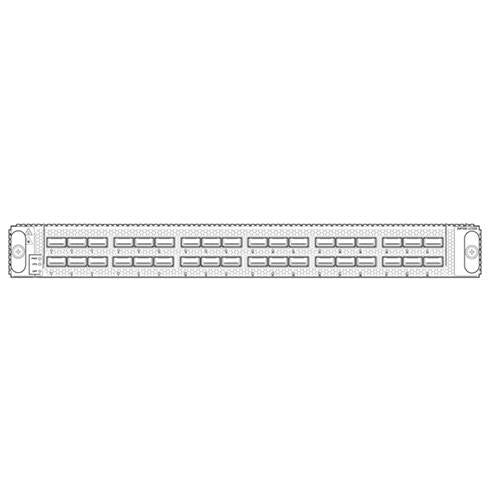

- PTX10K14.4Tbps Line Card - 36 port QSFP-DD ( JNP10K-LC1201 )
[/shortdesc]
[properties]
| Properties |
Juniper PTX10K-LC1201-36CD |
| Description |
36x400GbE/36x200GbE/36x100GbE/36x40GbE line card [JNP10K-LC1201] |
| Product Family |
PTX10000 Series |
| Product Type |
Line Card |
| Maximum Port Densities |
| QSFP56-DD |
36 |
| Maximum Port Configuration |
| Modes |
Port Speeds |
| Nonchannelized Mode (Mode D) |
100 Gbps: 30
40 Gbps: 30
10 Gbps: 0 |
| Channelized Mode (Mode A) |
101 Gbps: 24
40 Gbps: 24
10 Gbps: 96 |
| Bandwidth |
14.4 Tbps |
| Silicon |
Express4 |
| 100GbE Ports |
144 |
| 400GbE Ports |
36 |
| Network Ports |
400GbE transceivers (QSFP56-DD)
400GbE active optic cables (QSFP56-DD AOCs)
4 x 100GbE transceivers (QSFP56-DD)
2 x 100GbE transceivers (QSFP28-DD)
100GbE transceivers (QSFP28)
100GbE AOCs (QSFP28)
40GbE transceivers (QSFP+)
40GbE to 10GbE QSA (Junos OS Release 20.2R1 and later) |
| Dimensions |
17.2 in. x 1.89 in. x 21.3 in. (43.68 cm x 4.8 cm x 54.1 cm) |
| Net Shipping Weight |
35 lb (15.88 kg) |
| Components Required for the PTX10K-LC1201-36CD Line Cards |
| Part Number for the PTX10004 |
| Switch fabric |
JNP10004-SF3 |
| RCB |
JNP10K-RE1-E, JNP10K-RE1-128G-E, or JNP10K-RE1-ELT |
| Fan tray |
JNP10004-FAN2 |
| Fan tray controller |
JNP10004-FTC2 |
| Power supply |
JNP10K-PWR-AC2 or JNP10K-PWR-DC2 |
| Part Number for the PTX10008 |
| Switch fabric |
JNP10008-SF3 |
| RCB |
JNP10K-RE1-E, JNP10K-RE1-ELT, JNP10K-RE1-E128, or JNP10K-RE2-E128 |
| Fan tray |
JNP10008-FAN2 |
| Fan tray controller |
JNP10008-FTC2 |
| Power supply |
JNP10K-PWR-AC2 or JNP10K-PWR-DC2 |
| Part Number for the PTX10016 |
| Switch fabric |
JNP10016-SF3 |
| RCB |
JNP10K-RE1-E, JNP10K-RE1-ELT or JNP10K-RE1-E128 |
| Fan tray |
JNP10016-FAN2 |
| Fan tray controller |
JNP10016-FTC2 |
| Power supply |
JNP10K-PWR-AC2 or JNP10K-PWR-DC2 |
[/properties] [specifications] [/specifications]
The Juniper Networks PTX10008 Packet Transport Router enables cloud and data center operators to smoothly transition from 10-Gigabit and 40-Gigabit Ethernet networks to 100-Gigabit and 400-Gigabit Ethernet high-performance networks. This flexible, 13 rack unit (13-U) modular chassis has eight line card slots that can support a maximum of 288 400-Gigabit Ethernet ports that can also be configured as 576 200-Gigabit Ethernet ports, 1152 100-Gigabit Ethernet ports, 288 50-Gigabit Ethernet ports, 288 40-Gigabit Ethernet ports, 288 25-Gigabit Ethernet ports, or 1152 10-Gigabit Ethernet ports.
