[properties]
| Properties |

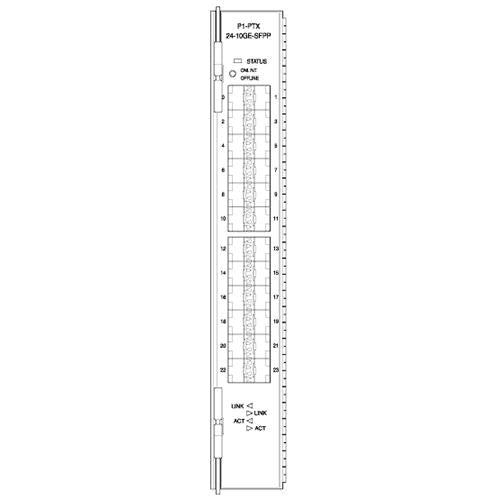

Juniper P1-PTX-24-10GE-SFPP |
| Description |
10-Gigabit Ethernet PIC with SFP+ |
| Product Family |
PTX3000 Series |
| Product Type |
Interface Card |
| Ports |
24x 10GE(LAN) SFP+ |
| Large maximum transmission units (MTUs) |
Junos OS Release 12.1X48: up to 9192 bytes
Junos OS Release 12.1X48R2 and later 12.1X48 releases: up to 9500 bytes
Junos OS Release 12.3R1 and later: up to 9500 bytes |
| Power requirements |
1.45 A @48 V (70 W) |
| High-performance throughput |
LAN-PHY mode at 10.3 Gbps |
[/properties][accesories]
| Flexible PIC Concentrators (FPCs) |
| FPC-SFF-PTX-P1-A |
First generation FPC |
| FPC-SFF-PTX-P1 |
First generation FPC |
| FPC-SFF-PTX-T |
First generation FPC |
| Transceivers |
| SFPP-10G-DT-ZRC2 |
10G-ZR Eth OTN tunable SFP Plus 1.5W 70 degrees C |
| SFPP-10G-ER-C |
SFP+, 10G-ER Transceiver |
| SFPP-10G-LR-C |
SFP+, 10G-LR Transceiver |
| SFPP-10G-SR-ET-C |
SFP+ 10GE-SR MMF 1.0W Beige Bail |
| SFPP-10GE-ER |
10 Gigabit Ethernet Extended Reach SFP+ |
| SFPP-10GE-LR |
10 Gigabit Ethernet Long Reach SFP+ |
| SFPP-10GE-SR |
10 Gigabit Ethernet Short Reach SFP+ |
| SFPP-10GE-ZR |
SFP+ 10GE Pluggable Transceiver, SMF, 1550nm for 80KM Transmission |
| SRX-SFPP-10G-SR-ET |
SFP+ 10GE pluggable transceiver, short reach, 850nm for 200m transmission, Extended temperature 0-85 |
[/accesories]
The PTX3000 is a dense, ultra-compact 8 Tbps core router that is highly optimized to meet the service provider challenges of space and power. We designed this router to support IP/MPLS applications, including Internet backbone, peering, label-switched routing, metro packet optical, regional cores, space-constrained central offices (COs), and colocation facilities.
