[properties]
| Properties |

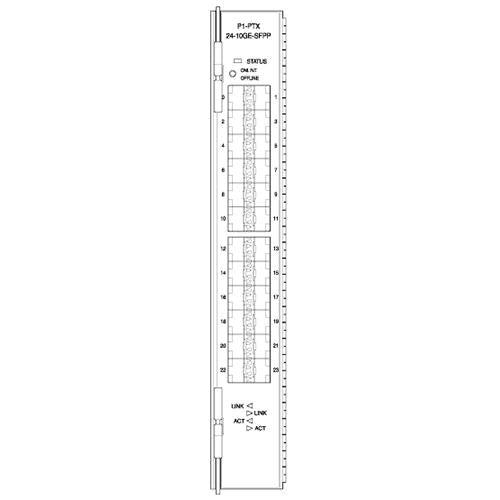

Juniper P1-PTX-24-10G-W-SFPP |
| Description |
10-Gigabit Ethernet LAN/WAN OTN PIC with SFP+ |
| Product Family |
PTX3000 Series |
| Product Type |
Interface Card |
| Ports |
24x 10GE(LWO) SFP+ |
| Large maximum transmission units (MTUs) |
up to 9500 bytes |
| Power requirements |
2.67 A @48 V (128 W) |
| High-performance throughput |
LAN-PHY mode at 10.3125 Gbps and WAN-PHY mode at 9.95 Gbps |
| Configurable modes |
LAN-PHY
WAN-PHY
OTN |
[/properties][accesories]
| Flexible PIC Concentrators (FPCs) |
| FPC-SFF-PTX-P1-A |
First generation FPC |
| FPC-SFF-PTX-P1 |
First generation FPC |
| FPC-SFF-PTX-T |
First generation FPC |
| FPC3-SFF-PTX-U0 |
Third generation FPC |
| FPC3-SFF-PTX-U1 |
Third generation FPC |
| Transceivers |
| SFPP-10G-CT50-ZR |
10GE DWDM tunable SFPP, Ethernet rate only, ITU-T G.698.1 compliant |
| SFPP-10G-DT-ZRC2 |
10G-ZR Eth OTN tunable SFP Plus 1.5W 70 degrees C |
| SFPP-10G-ER-C |
SFP+, 10G-ER Transceiver |
| SFPP-10G-LR-C |
SFP+, 10G-LR Transceiver |
| SFPP-10G-SR-ET-C |
SFP+ 10GE-SR MMF 1.0W Beige Bail |
| SFPP-10GE-ER |
10 Gigabit Ethernet Extended Reach SFP+ |
| SFPP-10GE-LR |
10 Gigabit Ethernet Long Reach SFP+ |
| SFPP-10GE-SR |
10 Gigabit Ethernet Short Reach SFP+ |
| SFPP-10GE-ZR |
SFP+ 10GE Pluggable Transceiver, SMF, 1550nm for 80KM Transmission |
| SRX-SFPP-10G-SR-ET |
SFP+ 10GE pluggable transceiver, short reach, 850nm for 200m transmission, Extended temperature 0-85 |
[/accesories]
The PTX3000 is a dense, ultra-compact 8 Tbps core router that is highly optimized to meet the service provider challenges of space and power. We designed this router to support IP/MPLS applications, including Internet backbone, peering, label-switched routing, metro packet optical, regional cores, space-constrained central offices (COs), and colocation facilities.
