[shortdesc]

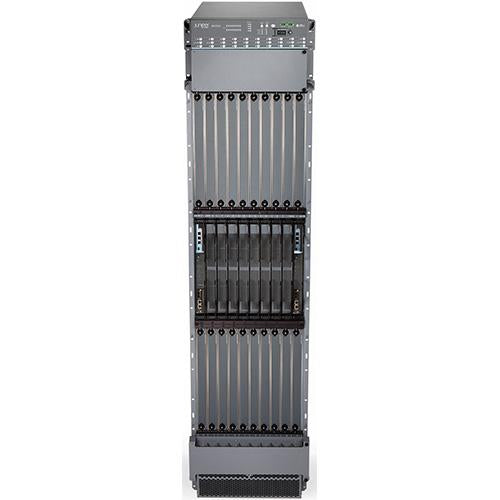

- 20 Slot MX2000 Chassis, Base with 2 RE, Fan Trays, Optimized AC Power, Discounted Switch Fabric (8 nos)
[/shortdesc]
[properties]
| Properties |
MX2020-PREMIUM2-AC |
| Description |
20 slot MX2020 premium 2 chassis with optimized AC power |
| Product Family |
MX2000 Series |
| Product Type |
Router |
| DPCs and/or MPCs per chassis |
20 (MPC only) |
| Maximum Line-Rate Port Density |
|
| with MPC11E 100GbE |
800 |
| with MPC11E 400GbE |
160 |
| with MPC9E 10GbE |
1920 |
| with MPC9E 40GbE |
480 |
| with MPC9E 100GbE |
320 |
| Physical dimensions (W x D x H) |
78.75 x 36.2 x 17.5 in
(200 x 91.95 x 44.45 cm) |
| Approximate maximum weight |
1,500 lbs
(680.39 kg) |
| Rack units |
45 |
| Number of fan trays |
4 |
| System mounting |
Four-post rack mounting |
| Power options |
AC/DC: -40 to -72 V DC
100-240 V AC |
| Air flow |
Front to back |
[/properties] [specifications]
| Specifications |
MX2020-PREMIUM2-AC
|
| Slots |
20 |
| Per slot capacity |
4 Tbps |
| System throughput |
80 Tbps |
| Power-to-throughput efficiency ratio (max) |
0.25W/GbE |
| Operating temperature |
32°F (0°C) to 104°F (40°C) |
| Humidity |
5% to 90% noncondensing humidity |
[/specifications] [accesories] [/accesories]
The SDN-ready MX2020 Universal Routing Platform is the industry's highest-capacity edge router. It delivers 80 Tbps of system capacity and supports up to 800 100GbE interfaces, 320 200GbE interfaces, or 160 400GbE interfaces in a single chassis when used with the Modular Port Concentrator 11E (MPC11E) line card.
