[shortdesc]

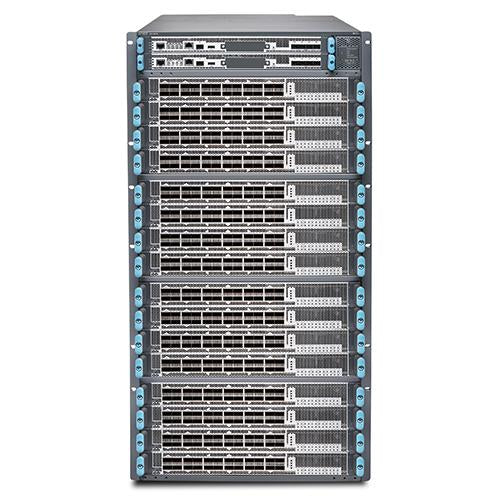

- JNP10016/MX10016 Redundant 16-slot chassis - includes 2 Routing Engines, 10 Power Supplies, 2 Fan trays, 2 Fan tray Controllers and 6 Switch Fabric Cards
[/shortdesc]
[properties]
| Product Name |
MX10016-PREMIUM |
| Description |
MX10016 redundant 16-slot chassis [JNP10016]. Includes 2 Routing Engines, 10 Power Supplies, 2 Fan trays, 2 Fan tray Controllers, and 6 Switch Fabric Cards |
| Brand |
Juniper |
| Type |
Chassis Bundle |
| Compatibility |
MX10016 Universal Routing Platform |
| Slot Configuration |
16 slots |
| Included Components |
2 Routing Engines |
| Included Components |
10 Power Supplies |
| Included Components |
2 Fan trays |
| Included Components |
2 Fan tray Controllers |
| Included Components |
6 Switch Fabric Cards |
| Maximum Interfaces |
Up to 1536 x 10GbE, 384 x 40GbE, or 384 x 100GbE |
[/properties]
[specifications]
| Dimensions (W x D x H) |
17.4 x 35 x 36.6 inches (44.2 x 88.9 x 92.96 cm) |
| Weight |
Approximately 596 lbs (270.34 kg) redundant AC configuration |
| System Capacity |
Full-duplex: 38.4 Tbps; Half-duplex: 76.8 Tbps |
| Per Slot Capacity |
Full-duplex: 2.4 Tbps; Half-duplex: 4.8 Tbps |
| Typical Power Consumption |
23 kW, fully loaded |
| Operating Temperature |
0°C to 46°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
5% to 90%, non-condensing |
| Mounting |
4-post rack |
| Installation |
Modular chassis with hot-swappable field-replaceable components |
| Management |
Monitored via Junos OS |
| Support |
Juniper Care Services |
| Additional Information |
The MX10016 Universal Routing Platform is a modular 16-slot chassis designed for high-capacity service provider and cloud deployments. It supports up to 38.4 Tbps of full-duplex system capacity and provides dense 10GbE, 40GbE, and 100GbE scaling in a highly redundant architecture. |
[/specifications]The MX10016 Universal Routing Platform is a modular 16-slot chassis designed for high-capacity service provider and cloud deployments. It supports up to 38.4 Tbps of full-duplex system capacity and provides dense 10GbE, 40GbE, and 100GbE scaling in a highly redundant architecture.
