Description
[shortdesc]
[properties]
- THIS ITEM IS A SPECIAL ORDER AND MAY TAKE ADDITIONAL SHIPPING TIME
- JNP10008/MX10008 Redundant 8-slot chassis - includes 2 Routing Engines, 6 Power Supplies, 2 Fan trays, 2 Fan tray Controllers and 6Switch Fabric Cards
| Properties | Juniper MX10008-PREMIUM |
| Description | MX10008 redundant 8-slot chassis [JNP10008]. Includes 2 REs, 6 power supplies, 2 fan trays, 2 fan tray controllers, and 6 Switch Fabric cards. |
| Product Family | MX10000 Series |
| Product Type | Router |
| Interface Features | |
| Maximum 1GbE | 384 |
| Maximum 10GbE | 768 |
| Maximum 40GbE | 192 |
| Maximum 100GbE | 768 |
| Maximum 400GbE | 192 |
| 100GbE DWDM | NA |
| DPCs and/or MPCs per chassis | 8 (MPCs only) |
| Physical dimensions (W x D x H) | |
| Chassis, spare | 17.4 x 22.55 x 32 in (44.2 x 57.76 x 81.28 cm) |
| Redundant AC configuration | 17.4 x 22.55 x 35 in (44.2 x 57.76 x 88.9 cm); 42.4 in. (107.7 cm) with EMI door |
| Redundant AC configuration with JNP10K-PWR-AC2 components | 17.4 x 22.55 x 36.7 in (44.2 x 57.76 x 93.2 cm); 44.1 in. (112 cm) with EMI door |
| Redundant DC configuration | 17.4 x 22.55 x 35 in (44.2 x 57.76 x 88.9 cm); 42.4 in. (107.7 cm) with EMI door |
| Redundant DC configuration with JNP10K-PWR-DC2 components | 17.4 x 22.55 x 36.7 in (44.2 x 57.76 x 93.2 cm); 44.1 in. (112 cm) with EMI door |
| Weights | |
| Chassis, spare | 145.2 lb (65.86 kg) |
| Redundant AC configuration | 332 lb (150.6 kg) |
| Redundant AC configuration with JNP10K-PWR-AC2 components | 332 lb (150.6 kg) |
| Redundant DC configuration | 329 lb (149.23 kg) |
| Redundant DC configuration with JNP10K-PWR-DC2 components | 329 lb (149.23 kg) |
| Weight (lb/kg) fully configured | 330 lb (150 kg) (excluding line cards) |
| Rack units | 13 U |
| Mounting | 4 post rack |
| Typical power consumption | 12 kW, fully loaded |
| AC input line frequency | 50 to 60 Hz (nominal) |
| Power system rating | 200-240 VAC/50-60 Hz or -48 VDC @ 60 A |
| Maximum output power | JNP10K-PWR-AC: 2700 W JNP10K-PWR-AC2: 5000 W or 5500 W when set for high power (30-A); 3000 W when set for low power (20-A) JNP10K-PWR-DC: 2500 W JNP10K-PWR-DC2: 5500 W when set for high power (80-A) or 4400 W when set for low power (60-A) |
| Specifications | MX10008-PREMIUM |
| System capacity | Full-duplex: 76.8 Gbps Half-duplex: 153.6 Gbps |
| Per slot capacity | 9.6 Tbps |
| Built-in Routing Engine | 2.2 GHz Intel processor with 64/128 GB memory and 2x200 GB SSD |
| Number of cores | 10 cores |
| Operating temperature | 32° to 115° F (0° to 46° C) |
| Humidity | (Operating) 5 to 90 percent noncondensing |
| Altitude | Up to 6000 feet |
| Software Licenses | |
| S-MX150-IR | Software license to support full L2 and limited L3 features and performance |
| S-MX150-R | Software license to support full L2/L3 features and scale, including HQoS |
| Transceivers | |
| CTP-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module, CTP1000 |
| CTP-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module, CTP1000 |
| CTP-SFP-1GE-T | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) |
| EX-SFP-1GE-LH | Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optics |
| EX-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optics |
| EX-SFP-1GE-LX40K | SFP 1000Base-LX Gigabit Ethernet Optics, 1310 nm for 40 km transmission on single mode fiber |
| EX-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optics |
| EX-SFP-1GE-SX-ET | SFP, 1000Base-SX Gigabit Ethernet, Extended Temperature Range Optics |
| EX-SFP-1GE-T | Small Form Factor Pluggable 10/100/1000 Copper Transceiver Module |
| EX-SFP-GE10KT13R14 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1490nm for 10km transmission |
| EX-SFP-GE10KT13R15 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1550nm for 10km Transmission |
| EX-SFP-GE10KT14R13 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1490nm/Rx 1310nm for 10km transmission |
| EX-SFP-GE10KT15R13 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1550nm/Rx 1310nm for 10km Transmission |
| EX-SFP-GE40KT13R15 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1550nm for 40km Transmission |
| EX-SFP-GE40KT15R13 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1550nm/Rx 1310nm for 40km Transmission |
| EX-SFP-GE80KCW1470 | SFP, Gigabit Ethernet CWDM Optics, 1470nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1490 | SFP, Gigabit Ethernet CWDM Optics, 1490nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1510 | SFP, Gigabit Ethernet CWDM Optics, 1510nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1530 | SFP, Gigabit Ethernet CWDM Optics, 1530nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1550 | SFP, Gigabit Ethernet CWDM Optics, 1550nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1570 | SFP, Gigabit Ethernet CWDM Optics, 1570nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1590 | SFP, Gigabit Ethernet CWDM Optics, 1590nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1610 | SFP, Gigabit Ethernet CWDM Optics, 1610nm for 80 km Transmission on SMF |
| QFX-SFP-1GE-LX | SFP 1000Base-LX Gigabit Ethernet Optics, 1310nm for 10km transmission on SMF |
| QFX-SFP-1GE-SX | SFP 1000Base-SX Gigabit Ethernet Optics, 850nm for upto 550m transmission on MMF |
| QFX-SFP-1GE-T | SFP 1000Base-T Copper Transceiver Module for up to 100m transmission |
| SFP-1G-LH-C | SFP, 1G, SMF 70km, Industrial Temperature (-40 through 85 DegC), Duplex LC connector |
| SFP-1G-LX-C | SFP, 1G, SMF 10km and MMF 550m, Extended Temperature (-5 through 70 DegC), Duplex LC connector |
| SFP-1G-SX-C | SFP, 1G, FDDI 220m and OM1 275m/OM2 MMF 550m, Extended Temperature (-10 through 85 DegC), Duplex LC connector |
| SFP-1G-T-C | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) |
| SFP-GE10KT13R14 | 1GE Bi-Di (TX1310nm-RX1490nm) 10K w/DDM |
| SFP-GE10KT13R15 | 1-port bidirectional GE SFP with 10km reach, Tx 1310 / Rx 1550 with DDM |
| SFP-GE10KT14R13 | 1-port bidirectional GE SFP with 10km reach, Tx 1490 / Rx 1310 with DDM |
| SFP-GE10KT15R13 | 1-port bidirectional GE SFP with 10km reach, Tx 1550 / Rx 1310 with DDM |
| SFP-GE40KT13R15 | 1-port bidirectional GE SFP with 40km reach, Tx 1310 / Rx 1550 with DDM |
| SFP-GE40KT15R13 | 1-port bidirectional GE SFP with 40km reach; Tx 1550 / Rx 1310; with DDM |
| SRX-SFP-1GE-LH | Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-LX-ET | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module - Extended temperature |
| SRX-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-SX-ET | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module - Extended temperature |
| SRX-SFP-1GE-T | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module |
| EX-SFP-10GE-DAC-1M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 1M |
| EX-SFP-10GE-DAC-3M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 3M |
| EX-SFP-10GE-DAC-5M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 5M |
| EX-SFP-10GE-ER | SFP+ 10GBase-ER 10 Gigabit Ethernet Optics Module, 1550nm for 40Km Transmission |
| EX-SFP-10GE-LR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics |
| EX-SFP-10GE-SR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics |
| EX-SFP-10GE-USR | SFP+ 10 Gigabit Ethernet Ultra Short Reach; 850 nm; 10m on OM1, 20m on OM2, 100m on OM3 Multi-Mode Fiber |
| EX-SFP-10GE-ZR | SFP+, 10GBase-ZR 10 Gigabit Ethernet Optics, 1550nm for 80km Transmission on SMF |
| QFX-SFP-10GE-ER | SFP+ 10GBase-ER 10 Gigabit Ethernet Optics, 1550nm for 40km transmission on SMF |
| QFX-SFP-10GE-LR | SFP+ 10GBase-LR 10 Gigabit Ethernet Optics, 1310nm for 10km transmission on SMF |
| QFX-SFP-10GE-SR | SFP+ 10GBase-SR 10 Gigabit Ethernet Optics, 850nm for up to 300m transmission on MMF |
| QFX-SFP-10GE-USR | SFP+ 10 Gigabit Ethernet Ultra Short Reach Optics, 850 nm for 10m on OM1, 20m on OM2, 100m on OM3 Multi-Mode Fiber |
| QFX-SFP-DAC-1M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 1m |
| QFX-SFP-DAC-3M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 3m |
| QFX-SFP-DAC-5M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 5m |
| SFPP-10G-ER-C | SFP+, 10G-ER Transceiver |
| SFPP-10G-LR-C | SFP+, 10G-LR Transceiver |
| SFPP-10G-LRT2-C | SFP+, 10G-LR Transceiver type 2 |
| SFPP-10G-SR-C | SFP+, 10G-SR Transceiver |
| SFPP-10G-SR-ET-C | SFP+ 10GE-SR MMF 1.0W Beige Bail |
| SFPP-10G-USR-C | SFP+, 10G-USR Transceiver |
| SFPP-10GE-ER | 10 Gigabit Ethernet Extended Reach SFP+ |
| SFPP-10GE-LR | 10 Gigabit Ethernet Long Reach SFP+ |
| SFPP-10GE-SR | 10 Gigabit Ethernet Short Reach SFP+ |
| SFPP-10GE-ZR | SFP+ 10GE Pluggable Transceiver, SMF, 1550nm for 80KM Transmission |
| SRX-SFP-10GE-DAC-1M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 1M |
| SRX-SFP-10GE-DAC-3M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 3M |
| SRX-SFP-10GE-ER | SFP+ 10GBase-ER 10 Gigabit Ethernet Optics Module, 1550nm for 40Km transmission |
| SRX-SFP-10GE-LR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics |
| SRX-SFP-10GE-SR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics |
| SRX-SFPP-10G-SR-ET | SFP+ 10GE pluggable transceiver, short reach, 850nm for 200m transmission, Extended temperature 0-85 |

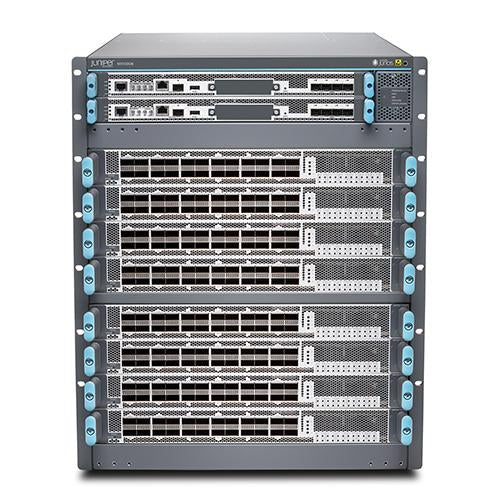

Juniper MX10008-PREMIUM Chassis
The Juniper MX10008-PREMIUM is a member of the MX10000 Modular Universal Routing family. This product has an 8x MX10008 slot chassis, three power supplies, two fan trays, two fan tray controllers, and 6 Switch Fabric cards. It facilitates the migration of cloud and data center operators from 10-Gigabit Ethernet and 40-Gigabit Ethernet networks to high-performance 100-Gigabit Ethernet networks. This modular chassis, occupying 13 rack units, can deliver 76.8 Tbps of throughput and 20 Bpps of forwarding capacity.
Quick Specs:
- Data Center Gateway
- Layer 3 Aggregation
- Rack Units: 13U
- Mounting: 4 post rack
Please see the related tabs for the MX10008-PREMIUM datasheet and compatible accessories.
