[shortdesc]

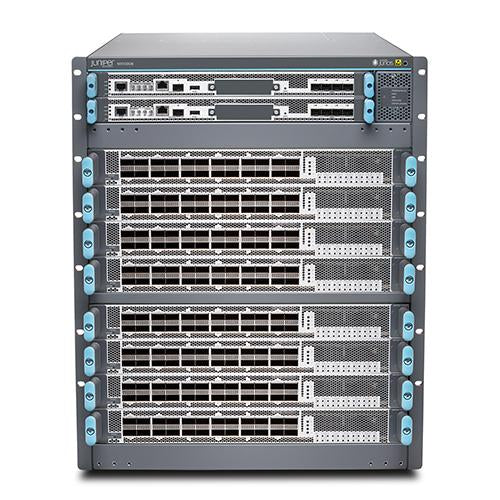

- JNP10008/MX10008 Base 8-slot chassis - includes 1 Routing Engine, 3 Power Supplies, 2 Fan trays, 2 Fan tray Controllers and 5 Switch Fabric Cards
[/shortdesc]
[properties]
| Product Name |
MX10008-BASE |
| Description |
MX10008 8-slot chassis [JNP10008]. Includes 1 Routing Engine, 3 Power Supplies, 2 Fan trays, 2 Fan tray Controllers, and 5 Switch Fabric Cards |
| Brand |
Juniper |
| Type |
Chassis Bundle |
| Compatibility |
MX10008 Universal Routing Platform |
| Slot Configuration |
8 slots |
| Included Components |
1 Routing Engine |
| Included Components |
3 Power Supplies |
| Included Components |
2 Fan trays |
| Included Components |
2 Fan tray Controllers |
| Included Components |
5 Switch Fabric Cards |
| Form Factor |
13 rack units (13U) |
[/properties]
[specifications]
| Dimensions (W x D x H) |
17.4 x 22.6 x 35 inches (44.2 x 57.4 x 88.9 cm) base AC configuration; 42.4 inches (107.7 cm) with EMI door |
| Weight |
Approximately 294 lbs (133 kg) base AC configuration |
| System Capacity |
Full-duplex: 76.8 Tbps; Half-duplex: 153.6 Tbps |
| Per Slot Capacity |
9.6 Tbps |
| Typical Power Consumption |
12 kW, fully loaded |
| Operating Temperature |
0°C to 46°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
5% to 90%, non-condensing |
| Mounting |
4-post rack |
| Installation |
Modular chassis with hot-swappable field-replaceable components |
| Management |
Monitored via Junos OS |
| Support |
Juniper Care Services |
| Additional Information |
The MX10008 Universal Routing Platform is a modular 8-slot chassis built for high-density routing in service provider and cloud environments. It supports up to 76.8 Tbps of full-duplex system capacity with 9.6 Tbps per slot in a 13U form factor. |
[/specifications]The MX10008 Universal Routing Platform is a modular 8-slot chassis built for high-density routing in service provider and cloud environments. It supports up to 76.8 Tbps of full-duplex system capacity with 9.6 Tbps per slot in a 13U form factor.
