Description

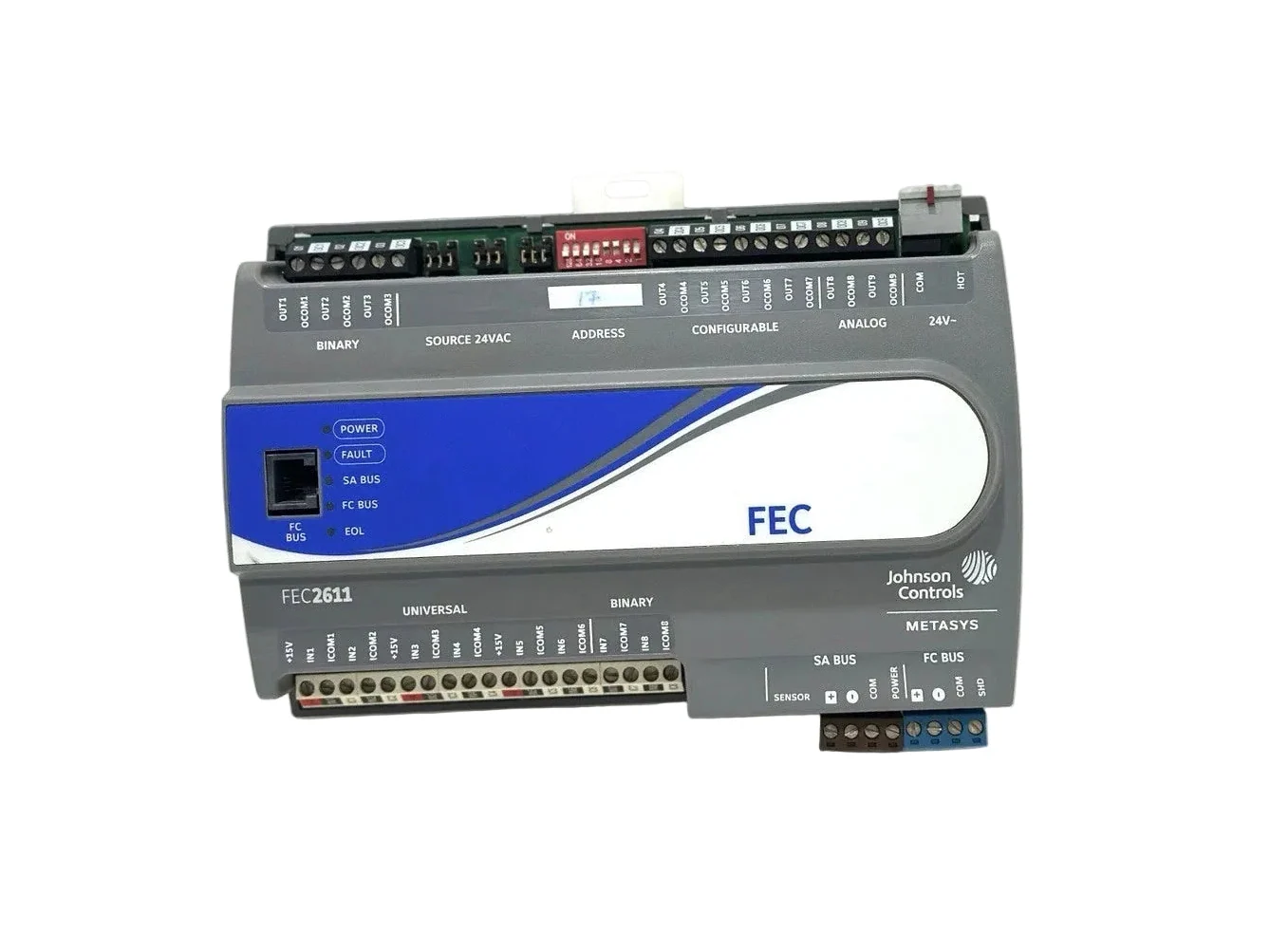

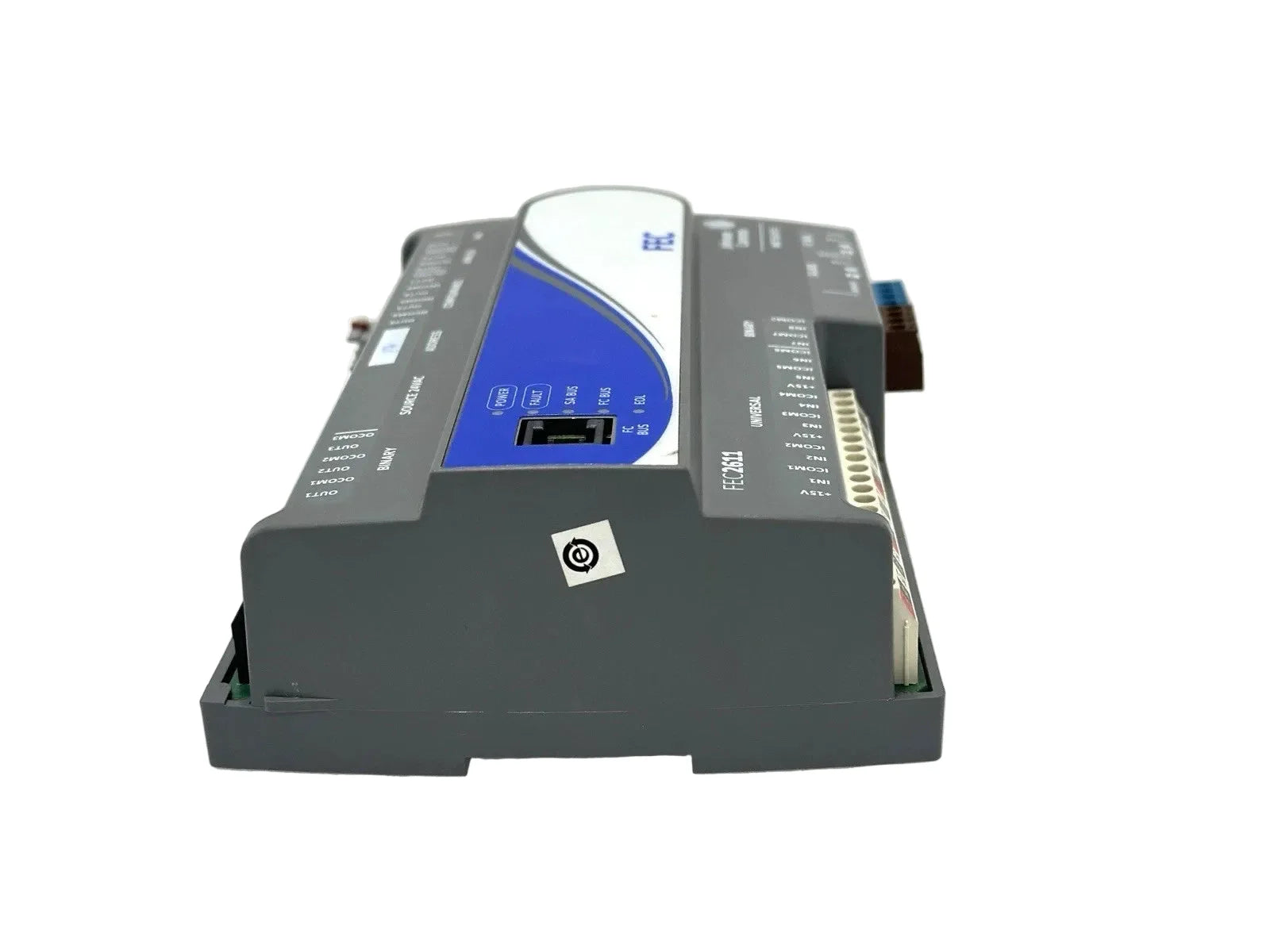

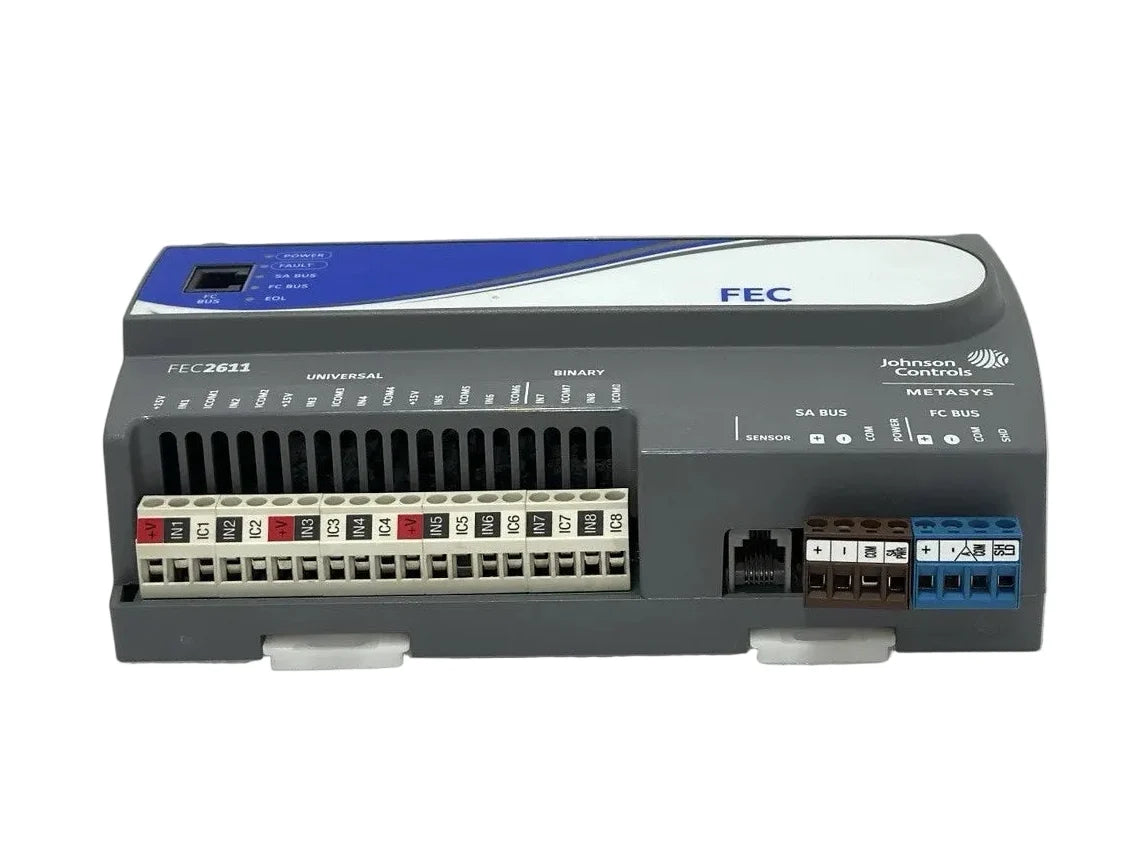

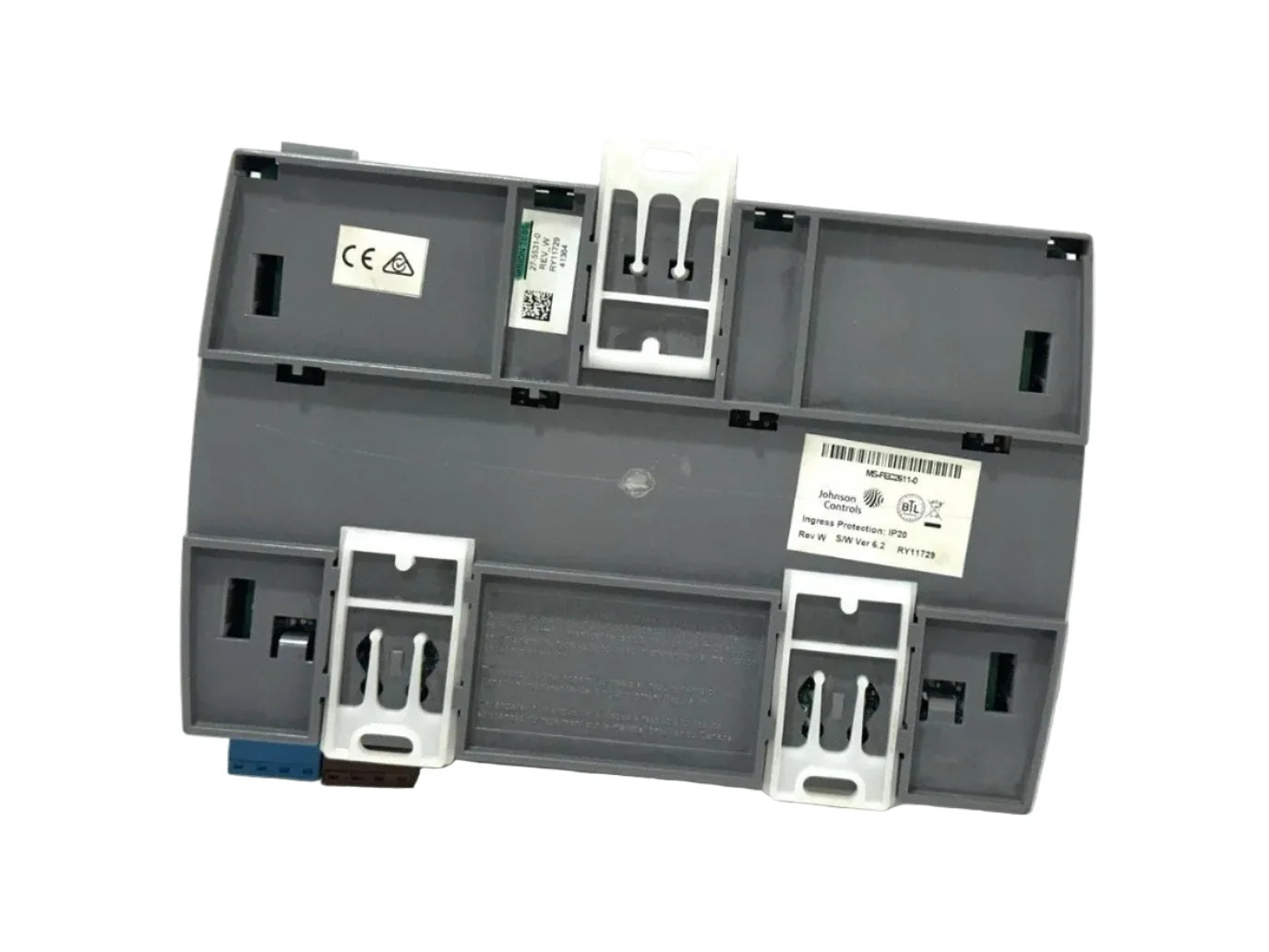

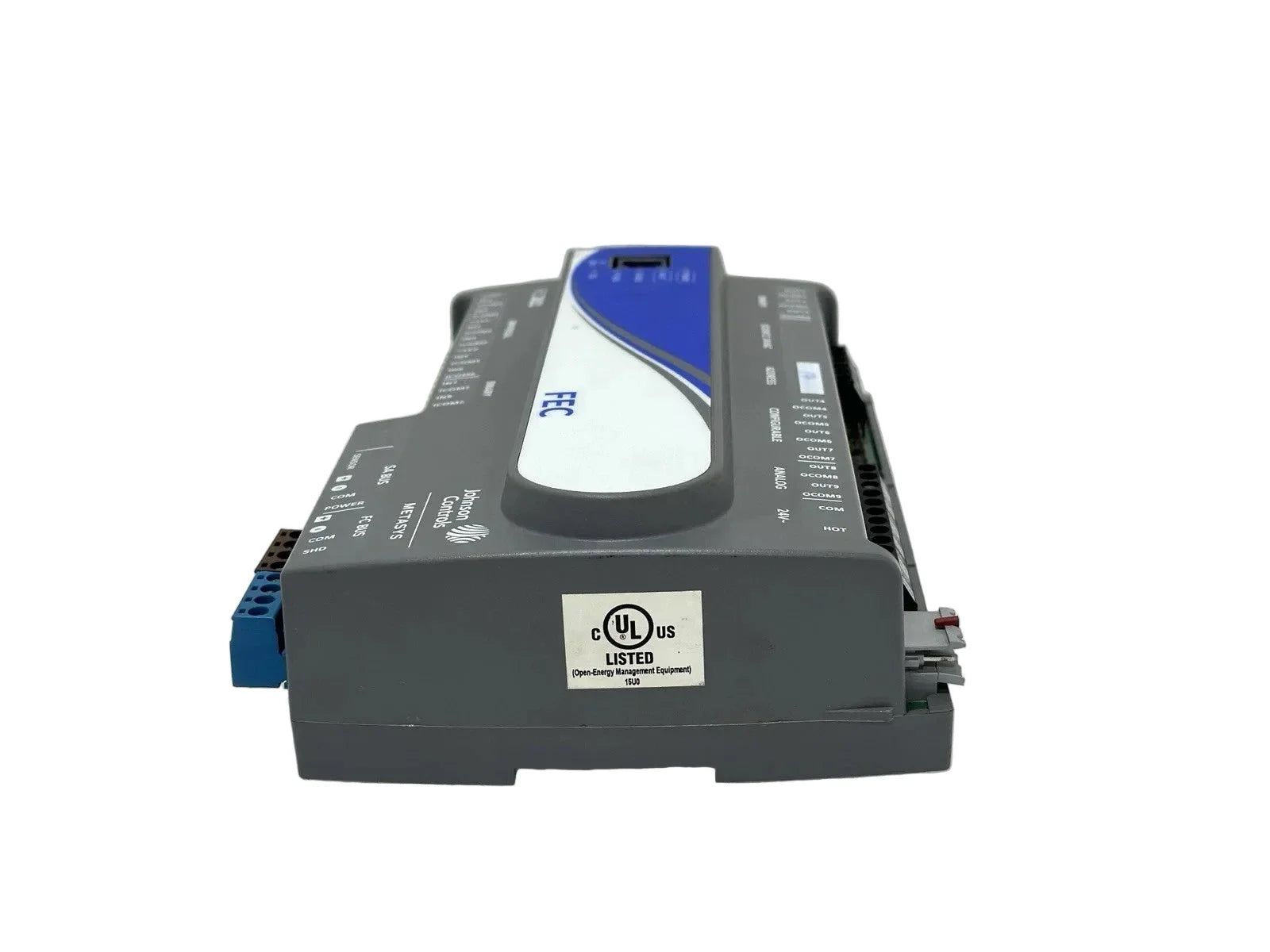

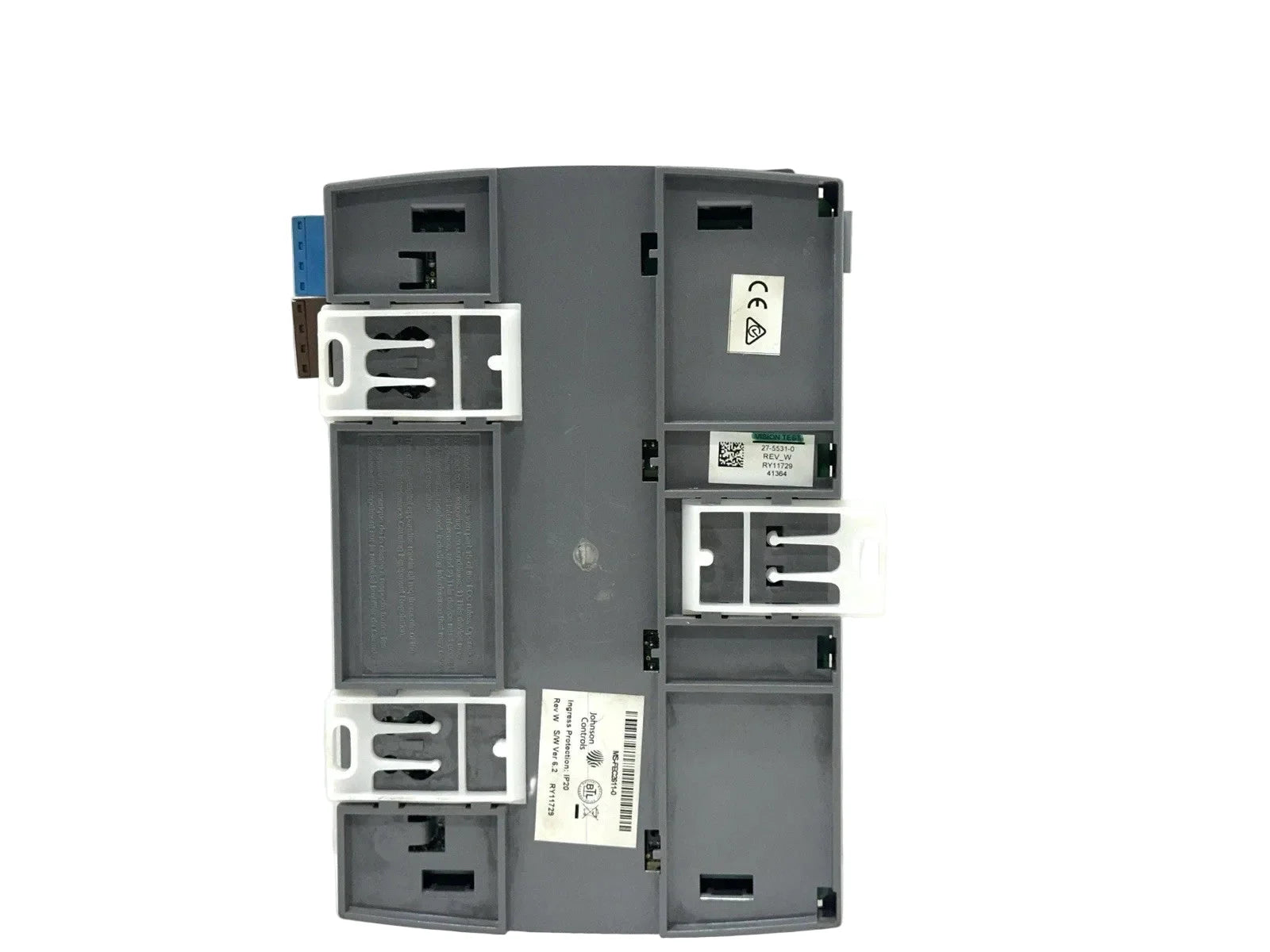

The Johnson Controls MS-FEC2611-0 is a 17-point Field Equipment Controller (FEC) designed for advanced HVAC and building automation applications. Operating on 24 VAC, it supports BACnet MS/TP communication and provides flexible I/O for monitoring and controlling commercial HVAC equipment with precision and reliability.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Johnson Controls |
| Part Number |
MS-FEC2611-0 |
| Series |
FEC26 |
| Category |
Controls & Indicators |
| Subcategory |
Control Accessory |
| Product Type |
Field Equipment Controller |
| Power Supply |
24 VAC |
| Power Consumption |
14 VA |
| Processor |
Renesas H8SX/166xR 32-Bit Microcontroller |
| Flash Memory |
1 MB |
| RAM |
512 KB |
| Universal Inputs |
6 |
| Binary Inputs |
2 |
| Binary Outputs |
3 |
| Configurable Outputs |
4 |
| Analog Outputs |
2 |
| Total I/O Points |
17 |
| Communication Protocol |
BACnet MS/TP (RS-485) |
| Mounting |
DIN Rail or Surface Mount |
| Protection Rating |
IP20 |
| Dimensions |
150 × 190 × 53 mm |
| Operating Temperature |
32°F to 122°F (0°C to 50°C) |
| Weight |
0.99 lb |
Information About MS-FEC2611-0
The MS-FEC2611-0 is part of the Johnson Controls Metasys® Field Equipment Controller family, engineered to provide intelligent control for commercial HVAC and building automation systems. Equipped with a 32-bit Renesas processor and programmable functionality, it supports both pre-engineered and custom control applications using the Controller Configuration Tool (CCT). With 17 integrated I/O points, BACnet MS/TP communication, and expandable control capabilities, the controller is well suited for air handlers, rooftop units, heat pumps, chillers, boilers, and other mechanical equipment. Its compact IP20-rated enclosure allows for flexible installation in control panels.
Key Features:
- 17-Point Field Equipment Controller: Designed for commercial HVAC and building automation systems.
- Flexible I/O Configuration: Includes 6 universal inputs, 2 binary inputs, 3 binary outputs, 4 configurable outputs, and 2 analog outputs.
- 24 VAC Power Supply: Compatible with standard HVAC control systems.
- BACnet MS/TP Communication: Integrates seamlessly with BACnet building automation networks.
- 32-Bit Renesas Processor: Delivers reliable and responsive control performance.
- Programmable Operation: Supports custom applications using Johnson Controls CCT software.
- High-Resolution I/O: Features 16-bit analog input and output resolution for accurate control.
- DIN Rail or Surface Mount: Provides flexible installation options for control cabinets.
The MS-FEC2611-0 delivers the reliability and flexibility required for advanced HVAC equipment control and building automation.
