Description

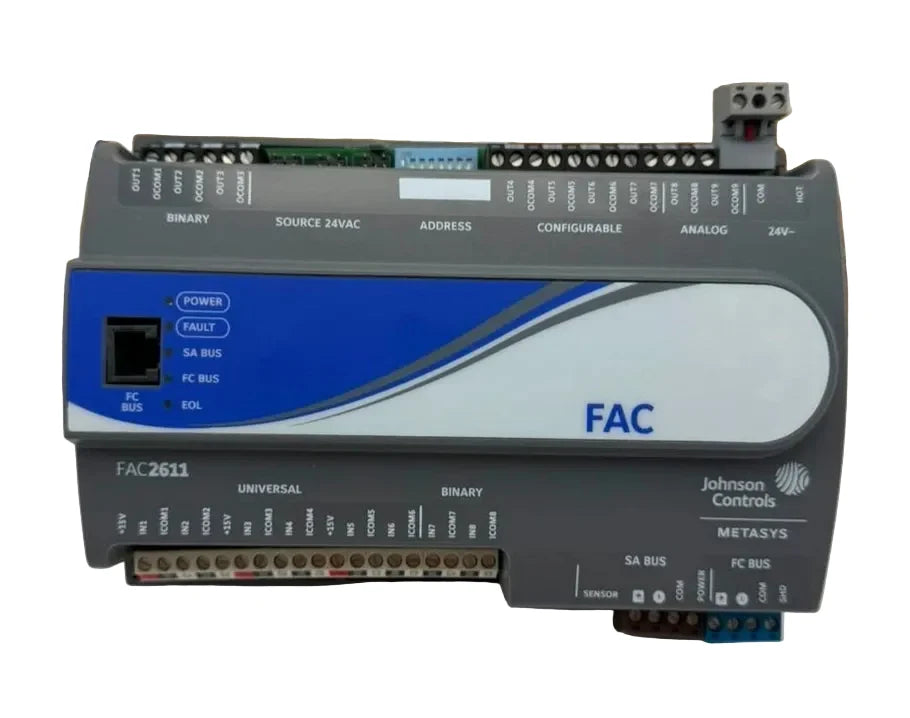

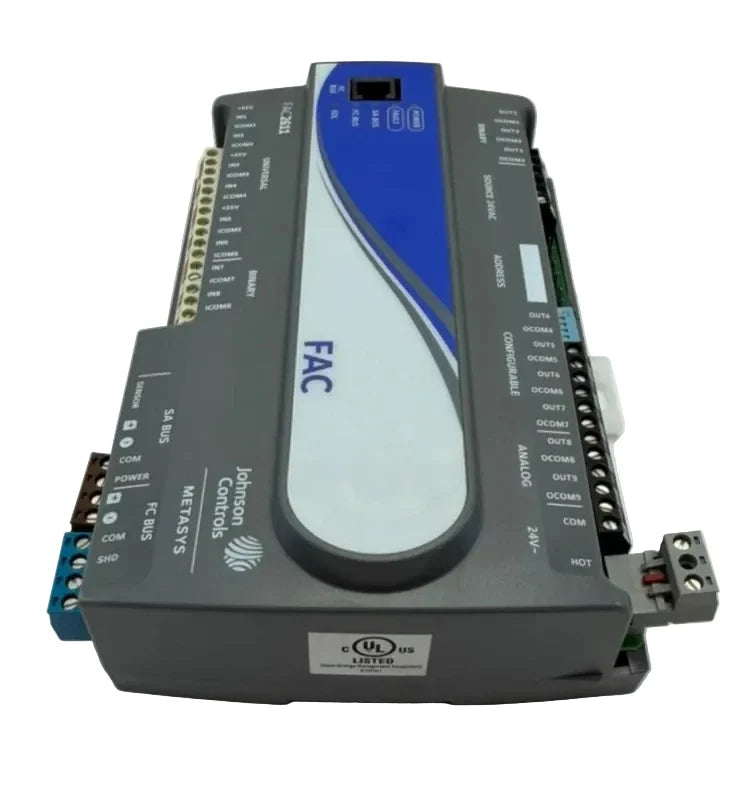

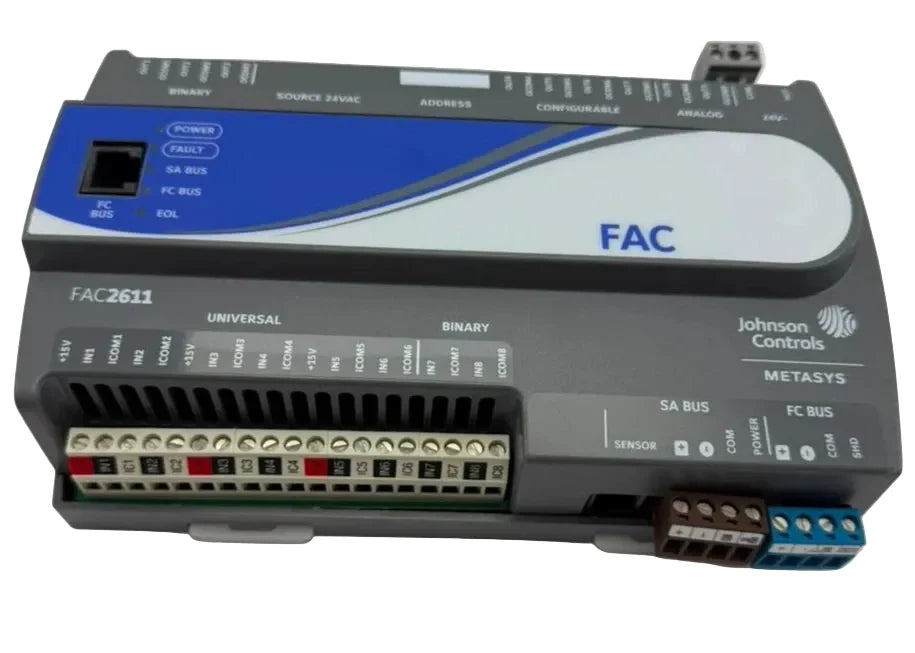

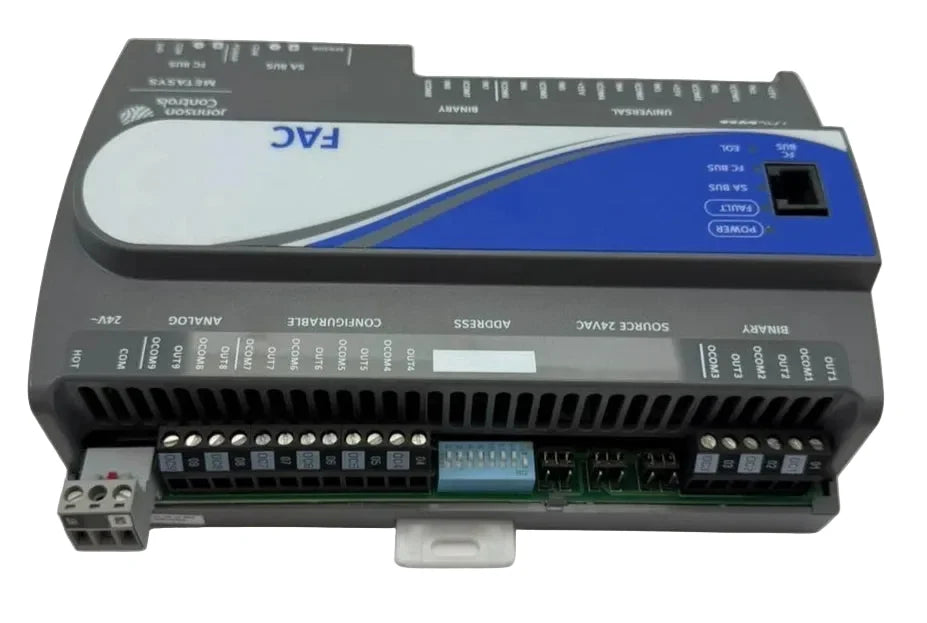

The Johnson Controls MS-FAC2611-0 is a 17-point Field Application Controller (FAC) designed for advanced HVAC and building automation systems. Operating on 24 VAC, it provides flexible I/O, BACnet MS/TP and N2 communication, and reliable programmable control for commercial equipment.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Johnson Controls |
| Part Number |
MS-FAC2611-0 |
| Product Line |
Metasys MS |
| Category |
Controls & Indicators |
| Subcategory |
Control Accessory |
| Product Type |
Field Application Controller |
| Power Supply |
24 VAC |
| Supply Voltage Range |
20–30 VAC |
| Power Consumption |
14 VA Max |
| Universal Inputs |
6 |
| Binary Inputs |
2 |
| Binary Outputs |
3 |
| Configurable Outputs |
4 |
| Analog Outputs |
2 |
| Total I/O Points |
17 |
| Communication Protocols |
BACnet MS/TP, N2 |
| Communication Bus |
SA Bus, FC Bus |
| Flash Memory |
4 MB |
| RAM |
1 MB |
| Real-Time Clock |
Yes |
| Weight |
1.50 lb |
Information About MS-FAC2611-0
The MS-FAC2611-0 is part of the Johnson Controls Metasys® Field Application Controller family, engineered to control a wide variety of HVAC equipment and building automation systems. Featuring 17 onboard I/O points, a high-performance processor, and programmable functionality, it enables precise monitoring and control of air handlers, rooftop units, chillers, boilers, and other commercial HVAC equipment. The controller supports BACnet MS/TP and N2 communication protocols, allowing seamless integration into both modern and legacy building management systems. With generous flash memory and RAM, it is capable of handling complex control applications while maintaining dependable performance.
Key Features:
- 17-Point Field Application Controller: Designed for commercial HVAC and building automation systems.
- Flexible I/O Configuration: Includes 6 universal inputs, 2 binary inputs, 3 binary outputs, 4 configurable outputs, and 2 analog outputs.
- 24 VAC Operation: Compatible with standard commercial HVAC control systems.
- BACnet MS/TP & N2 Communication: Supports integration with modern and legacy building automation networks.
- Programmable Controller: Suitable for advanced HVAC control applications.
- 4 MB Flash Memory: Provides ample storage for application programs and controller data.
- 1 MB RAM: Supports fast processing and reliable system performance.
- Energy-Efficient Design: Consumes a maximum of 14 VA during operation.
The MS-FAC2611-0 delivers the reliability and flexibility required for advanced HVAC equipment control and building automation.
