Description

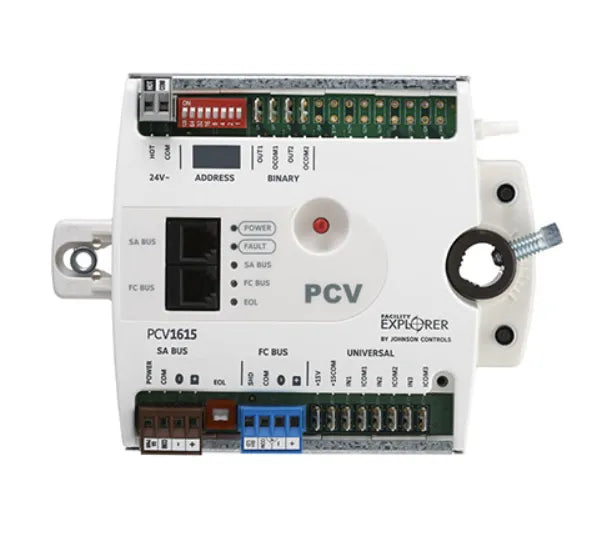

The Johnson Controls FX-PCV1615-1 is a programmable Variable Air Volume (VAV) controller designed for precise airflow and climate control in commercial HVAC systems. Featuring an integrated actuator, differential pressure sensor, and 32-bit processor, it delivers efficient airflow management and seamless building automation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Johnson Controls |
| Part Number |
FX-PCV1615-1 |
| Category |
HVAC |
| Subcategory |
HVAC Control System Board |
| Product Type |
Variable Air Volume (VAV) Controller |
| Processor |
32-Bit |
| Power Supply |
24 VAC |
| Universal Inputs |
3 |
| Binary Outputs |
2 |
| Total I/O Points |
5 |
| Integrated Actuator |
Yes |
| Differential Pressure Sensor |
Integrated |
| Communication Protocols |
BACnet MS/TP, Johnson Controls N2 |
| Configuration Tool |
Controller Configuration Tool (CCT) |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Weight |
1.45 lb |
Information About FX-PCV1615-1
The FX-PCV1615-1 is part of the Johnson Controls Facility Explorer (FX) series of programmable VAV controllers. It combines a 32-bit processor, integrated damper actuator, and differential pressure transducer into a single compact unit, eliminating the need for separate control components. Designed for commercial building automation, the controller supports BACnet MS/TP and Johnson Controls N2 communication protocols, enabling easy integration into HVAC management systems. Its onboard pressure sensor continuously monitors airflow to optimize comfort and energy efficiency.
Key Features:
- Integrated VAV Controller: Combines controller, actuator, and pressure sensor in one compact device.
- 32-Bit Processor: Delivers fast and reliable HVAC control performance.
- 5 Integrated I/O Points: Includes 3 universal inputs and 2 binary outputs.
- 24 VAC Operation: Compatible with standard commercial HVAC control systems.
- BACnet MS/TP & N2 Support: Integrates easily with building automation networks.
- Differential Pressure Sensor: Provides accurate airflow measurement for VAV applications.
- Integrated Damper Actuator: Simplifies installation and reduces mechanical components.
- Programmable Platform: Configured using Johnson Controls Controller Configuration Tool (CCT).
The FX-PCV1615-1 delivers the reliability and precision required for advanced VAV airflow control and energy-efficient HVAC operation.
