Description

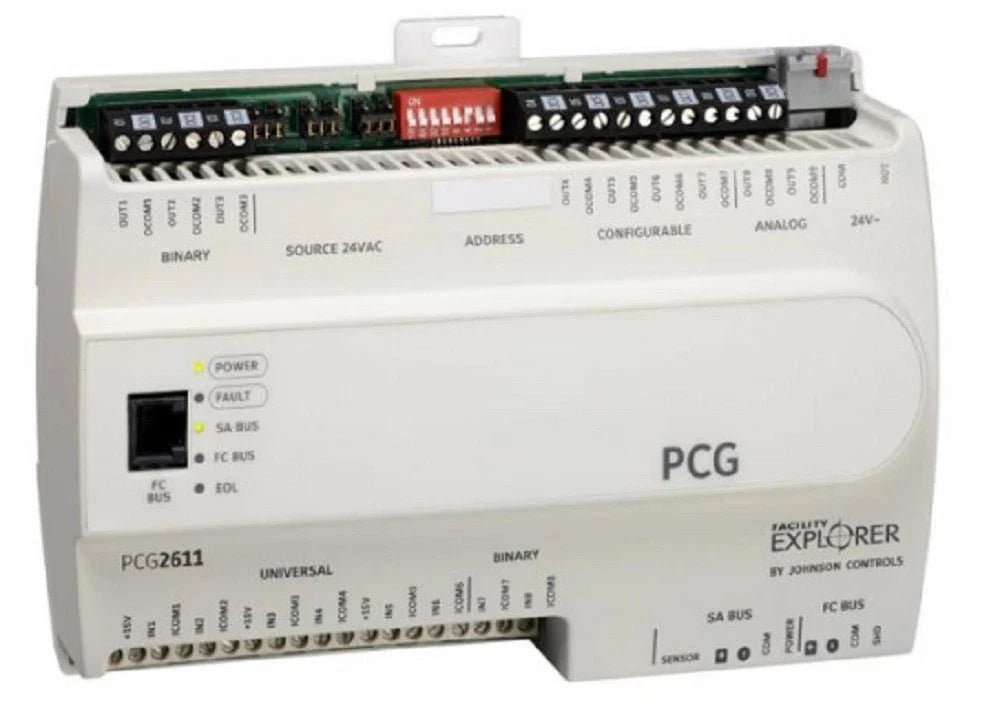

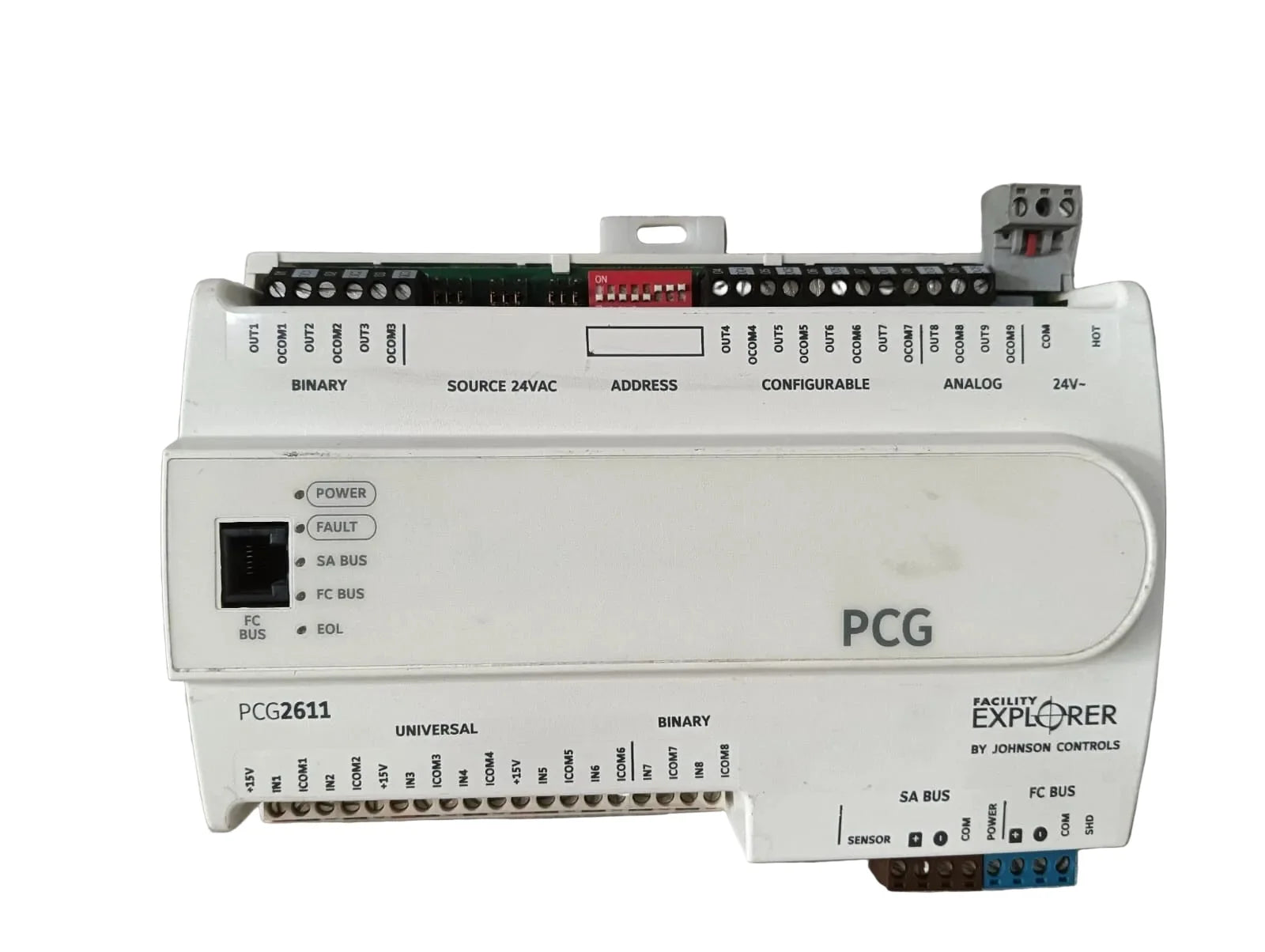

The Johnson Controls FX-PCG2611-0 is a 17-point programmable general-purpose controller designed for HVAC and building automation applications. Operating on 24 VAC, it provides flexible I/O configuration and supports BACnet and N2 field bus communications for efficient control of commercial HVAC equipment.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Johnson Controls |
| Part Number |
FX-PCG2611-0 |
| Category |
HVAC |
| Subcategory |
HVAC Control System Board |
| Product Type |
Programmable General-Purpose Controller |
| Power Supply |
24 VAC |
| Universal Inputs |
6 |
| Binary Inputs |
2 |
| Configurable Outputs |
4 |
| Binary Outputs |
3 |
| Analog Outputs |
2 |
| Total I/O Points |
17 |
| Communication Protocols |
BACnet, N2 |
| Expansion Support |
FX-PCX Expansion Modules |
| Application |
HVAC and Building Automation Systems |
| Weight |
1.13 lb |
Information About FX-PCG2611-0
The FX-PCG2611-0 is part of the Johnson Controls Facility Explorer (FX) controller family, engineered for advanced building automation and HVAC control. It features 17 onboard I/O points and can be expanded with FX-PCX modules for larger applications. Supporting both BACnet and N2 field bus communications, the controller offers flexible integration into existing building management systems. Its state-based control logic with adaptive, self-tuning control loops improves system efficiency, reduces commissioning time, and minimizes equipment wear.
Key Features:
- 17-Point General-Purpose Controller: Designed for flexible HVAC and building automation applications.
- 17 Integrated I/O Points: Includes 6 universal inputs, 2 binary inputs, 4 configurable outputs, 3 binary outputs, and 2 analog outputs.
- 24 VAC Operation: Compatible with standard commercial HVAC control systems.
- BACnet and N2 Communication: Supports seamless integration into building automation networks.
- Expandable Design: Compatible with FX-PCX expansion modules for additional I/O capacity.
- Adaptive Control Logic: Automatically tunes control loops to improve efficiency and system performance.
- Reduced Equipment Wear: Prevents simultaneous heating and cooling while minimizing mechanical stress.
- Reliable Performance: Designed for continuous operation in commercial HVAC environments.
The FX-PCG2611-0 delivers the reliability and flexibility required for efficient HVAC equipment control and advanced building automation.
