Description

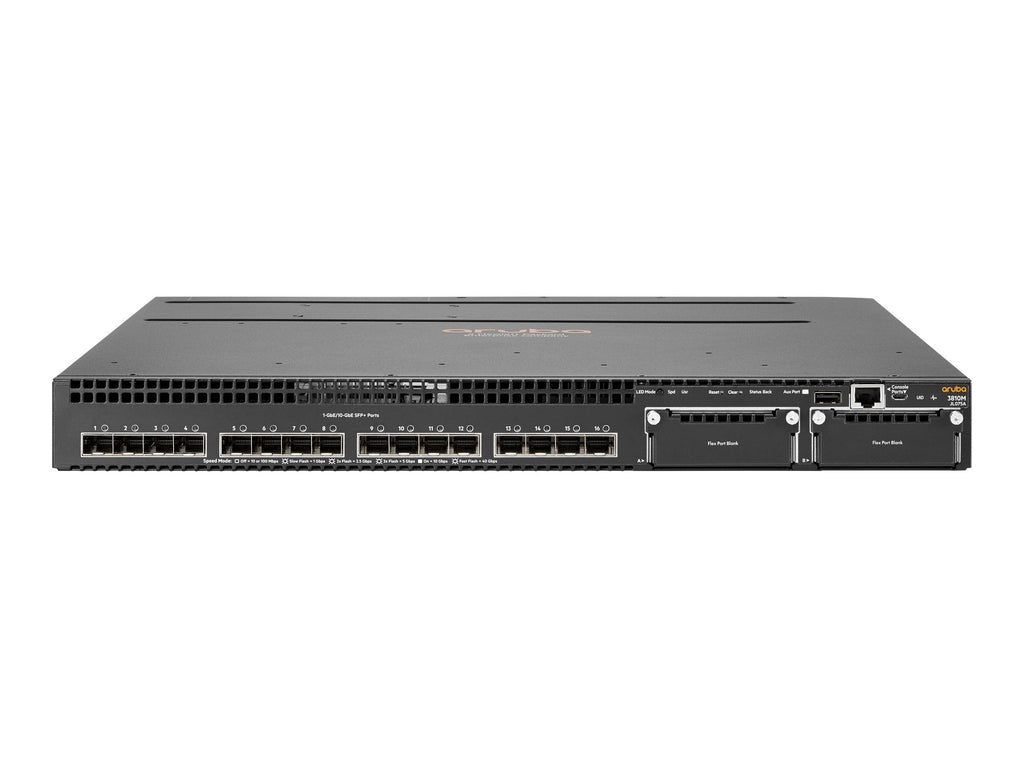

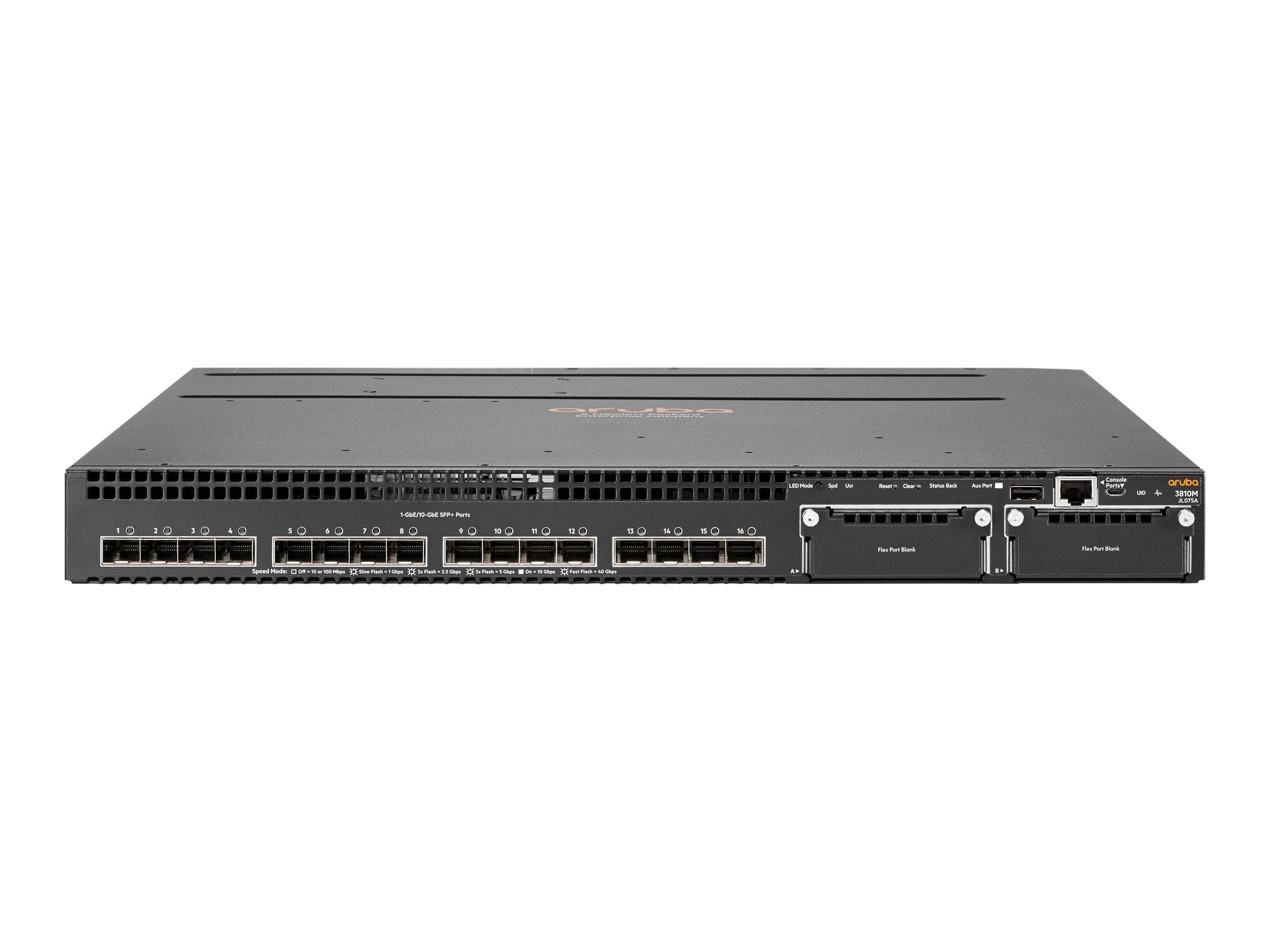

The JL075A Aruba 3810M is a high-performance enterprise-grade switch equipped with 16 fixed SFP+ ports and modular flexibility for future expansion. Designed for scalable aggregation and core access, it delivers secure, high-speed switching with MACsec encryption.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
HP Networking
|
| Category |
|
| Part Number |
JL075A
|
| Subcatecory |
High-Density Modular Switches
|
| Series |
Aruba 3810M Series |
| Ports |
16 x 10G SFP+ (MACSec-enabled) |
| Uplinks |
2 x Dual-Personality (RJ-45 or SFP) |
| Expansion Slots |
2 x module slots (SFP+ or 40GbE supported) |
| Stacking Slot |
1 x dedicated stacking module slot |
| Console Ports |
1 x RJ-45, 1 x dual-personality (RJ-45 or USB micro-B) |
| Management Ports |
1 x out-of-band RJ-45 |
| Power Supply Slots |
2 (1 required, sold separately) |
| Throughput |
Up to 285.7 Mpps |
| Dimensions (H x W x D) |
4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in) |
| Weight |
12.76 lb (5.79 kg) |
Information About JL075A
The JL075A is a powerful and modular Layer 3 switch engineered for enterprise network cores and aggregations. It features 16 fixed 10Gb SFP+ ports, each supporting MACSec encryption, and two open module slots, which enable scalability with up to 8 additional SFP+ ports or 2 x 40GbE ports through optional expansion modules. In addition to the main I/O ports, it includes a dedicated stacking module slot, RJ-45 serial console, out-of-band management port, and a dual-personality port (RJ-45 or USB micro-B) for flexible management access.
Key Features:
-
16 x SFP+ Ports: Fixed 10Gbps ports with MACSec encryption support
-
Modular Expansion: Two open module slots support additional SFP+ or 40GbE uplinks
-
Dedicated Stack Module Slot: Enables stackable configuration across multiple switches
-
Comprehensive Management: Console, USB, and out-of-band ports for flexible admin access
-
High Throughput: Handles up to 285.7 Mpps for fast packet forwarding in large networks
-
Power Flexibility: Dual internal PSU slots with support for redundant power
The JL075A delivers robust Layer 3 capabilities with a scalable, modular architecture for growing enterprise networks.
