Description

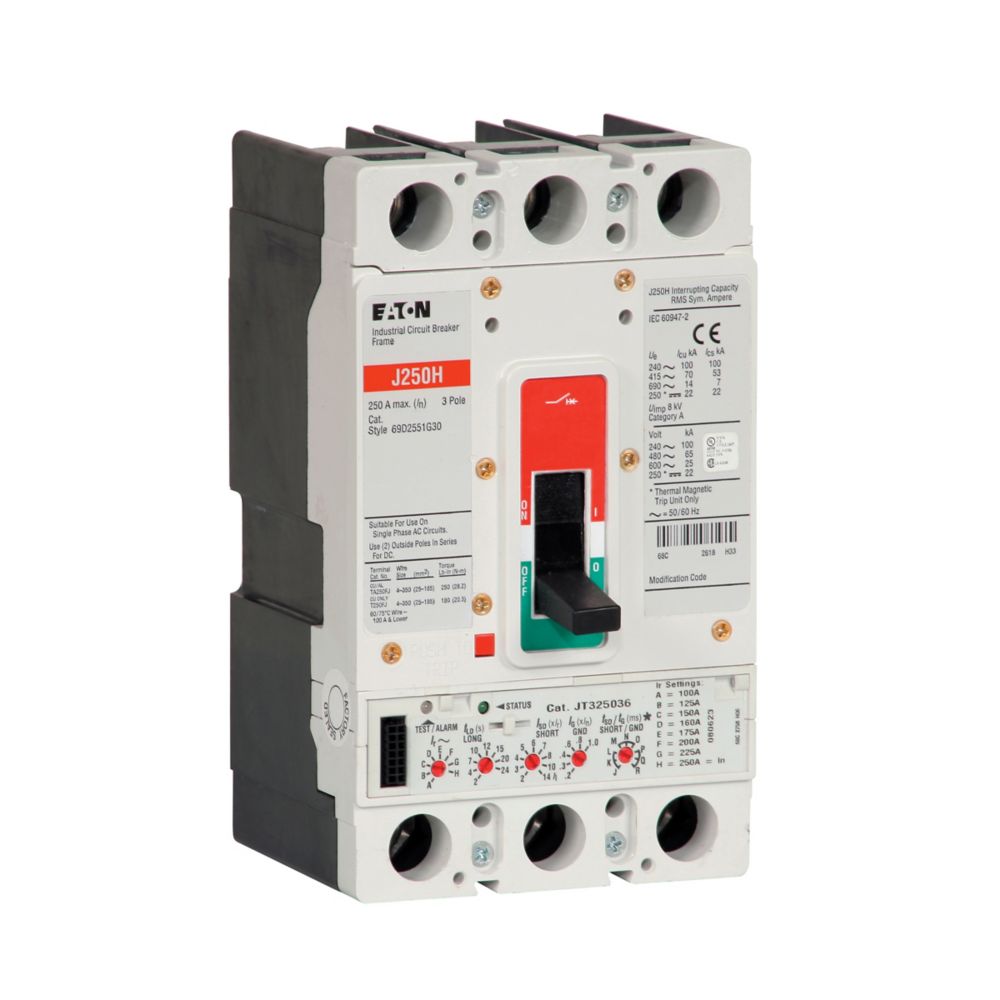

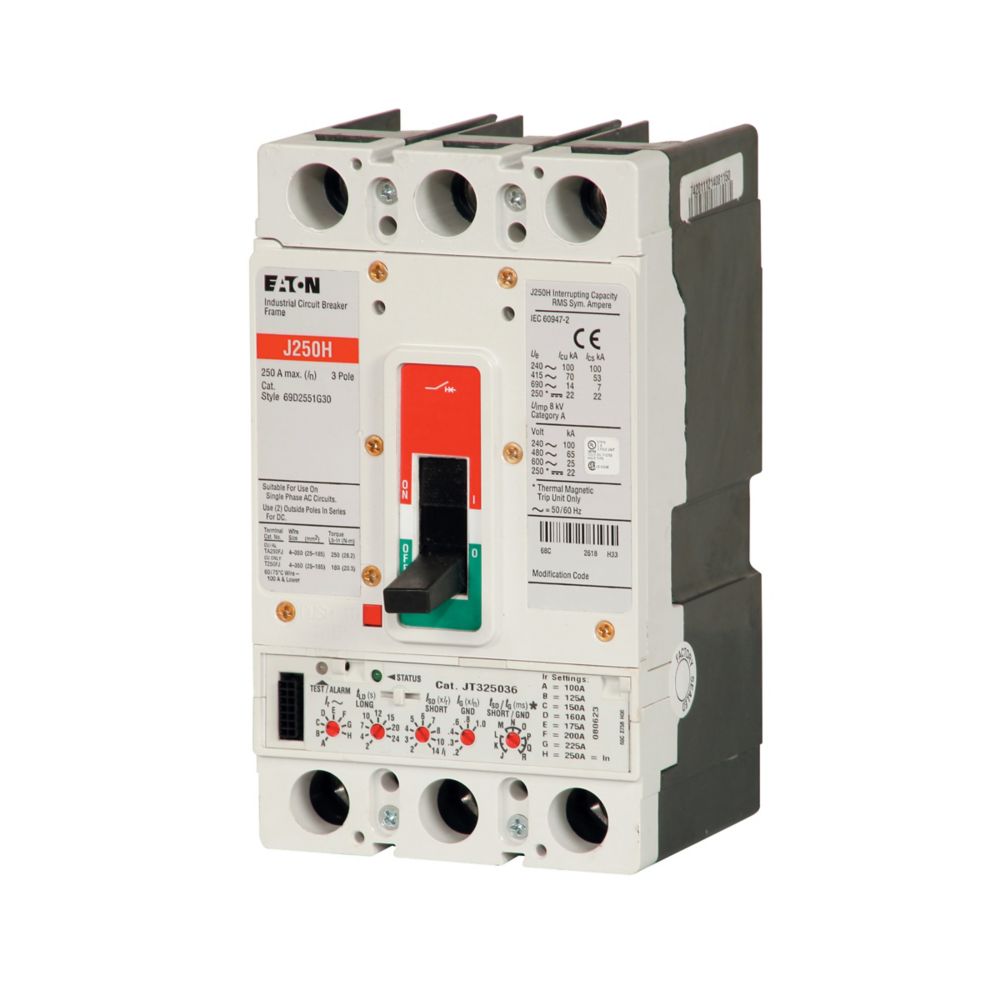

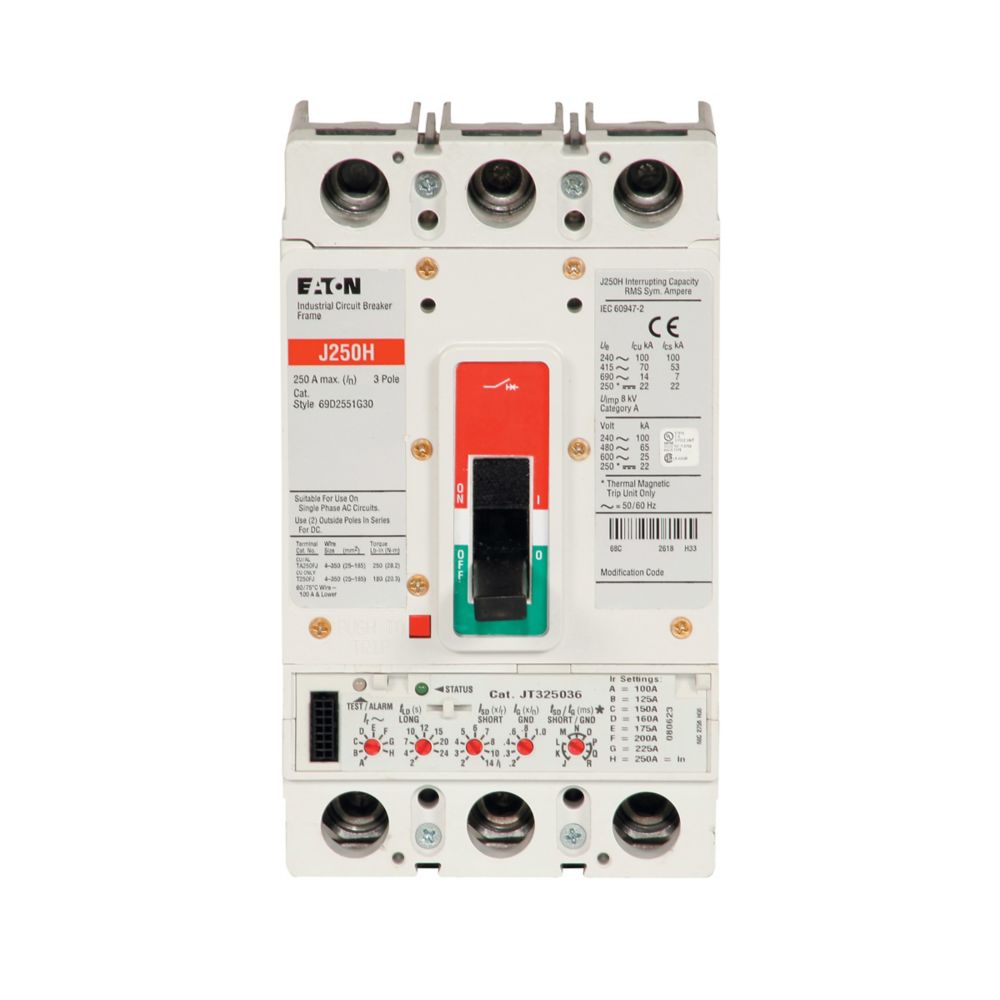

The Eaton JGH3250FAG is a molded case circuit breaker designed to provide reliable overcurrent protection in commercial and industrial power distribution systems. This Eaton part number JGH3250FAG features a 250 amp rating and supports up to 600 Vac operation for three-phase electrical circuits. Built within the Series G JG frame platform, it delivers dependable thermal-magnetic protection for panelboards, switchboards, and motor control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Breaker |
| Part Number |
JGH3250FAG |
| Subcategory |
Molded Case Circuit Breaker |
| Product Type |
Molded Case Circuit Breaker |
| Series |
Series G |
| Frame Type |
JG Frame |
| Circuit Breaker Type |
Complete Breaker |
| Number of Poles |
Three-Pole |
| Amperage Rating |
250 A |
| Voltage Rating |
600 Vac |
| Trip Type |
T185 Thermal Magnetic |
| Interrupt Rating |
100 kAIC @ 240 Vac; 65 kAIC @ 480 Vac; 25 kAIC @ 600 Vac |
| Frequency Rating |
50–60 Hz |
| Terminals |
Line and Load |
| Mounting Hardware |
Metric |
| Compliance |
CE Marked |
| Certifications |
UL Listed, CSA Certified, IEC Rated |
| Dimensions (L×W×H) |
3.57 × 4.13 × 4.13 in |
| Weight |
6 lb |
Information About JGH3250FAG
The JGH3250FAG is a complete molded case circuit breaker from Eaton’s Series G product family, engineered for robust circuit protection in demanding electrical installations. It utilizes a fixed thermal and adjustable magnetic trip system to provide reliable overload and short-circuit protection. The breaker is built on the JG frame and supports three-pole configurations for three-phase power systems commonly found in industrial and commercial facilities. Designed with line-and-load terminals and metric mounting hardware, the device ensures compatibility with modern electrical panels and distribution assemblies.
Key Features:
- 250 Amp Current Rating: Provides reliable overcurrent protection for circuits operating up to 250 A.
- Series G JG Frame Design: Engineered for Eaton’s Series G platform to ensure durability and consistent performance.
- Thermal-Magnetic Trip Protection: Combines thermal overload protection with magnetic short-circuit response.
- High Interrupting Capacity: Rated up to 100 kAIC at 240 Vac and 65 kAIC at 480 Vac for demanding fault conditions.
- Three-Pole Configuration: Suitable for protecting three-phase electrical distribution systems.
- 600 Vac Voltage Rating: Supports industrial and commercial systems operating up to 600 Vac.
- Line and Load Terminals: Simplifies installation within switchboards, panelboards, and distribution equipment.
- UL, CSA, and IEC Certifications: Complies with multiple international electrical safety standards.
The JGH3250FAG delivers the reliability and precision required for protecting industrial power distribution circuits and commercial electrical infrastructure.
