Description

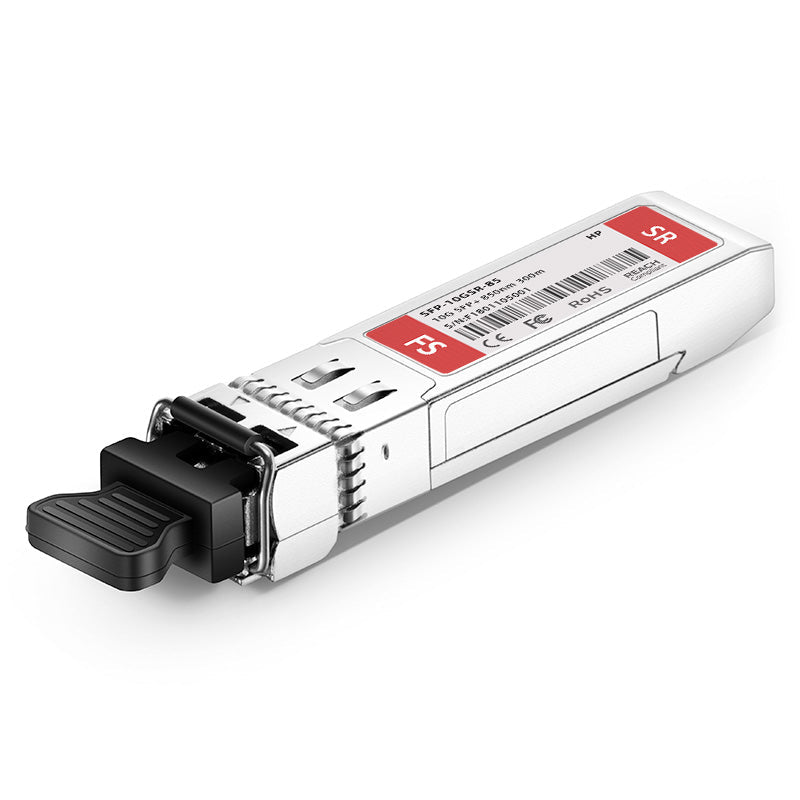

The HP JD092B is a high-speed SFP+ transceiver module built for 10 Gigabit Ethernet over multimode fiber. Designed for short-reach applications, it ensures fast, stable, and efficient data transmission, making it ideal for data centers and enterprise networks.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
HP Networking
|
| Category |
|
| Part Number |
JD092B
|
| Subcatecory |
|
| Application |
Data Networking |
Ethernet Technology
|
10 Gigabit Ethernet |
| Network Standard |
10GBase-SR |
| Media Type |
Optical Fiber (MMF)
|
| Wavelength |
850 nm
|
| Form Factor |
SFP+
|
| Connector Type |
Duplex LC
|
| Max Distance |
300 meters
|
| Speed |
10 Gbps
|
| Interfaces/Ports |
1 x LC 10GBase-SR
|
Information About JD092B
The JD092B is a 10GBASE-SR SFP+ transceiver by HPE, engineered for multimode fiber (MMF) connectivity with a reach of up to 300 meters. The transceiver operates at a wavelength of 850 nm and connects via a duplex LC connector. It supports 10 Gigabit Ethernet data rates and is compatible with a wide range of HPE networking hardware.
Key Features:
-
High-Speed Connectivity: Supports 10 Gbps data transfer rate, suitable for high-bandwidth data applications.
-
Short-Reach Performance: Optimized for distances up to 300 meters over OM3 MMF cabling, ideal for in-rack and intra-building fiber links.
-
Optical Efficiency: Operates on an 850 nm wavelength, ensuring effective transmission with minimal signal degradation.
-
Standard Interface: Duplex LC connector for seamless integration with existing MMF infrastructure.
-
Compact Form Factor: SFP+ module design allows high port density in switch and router configurations.
The JD092B delivers reliable, high-speed fiber connectivity within data centers and enterprise network cores.
